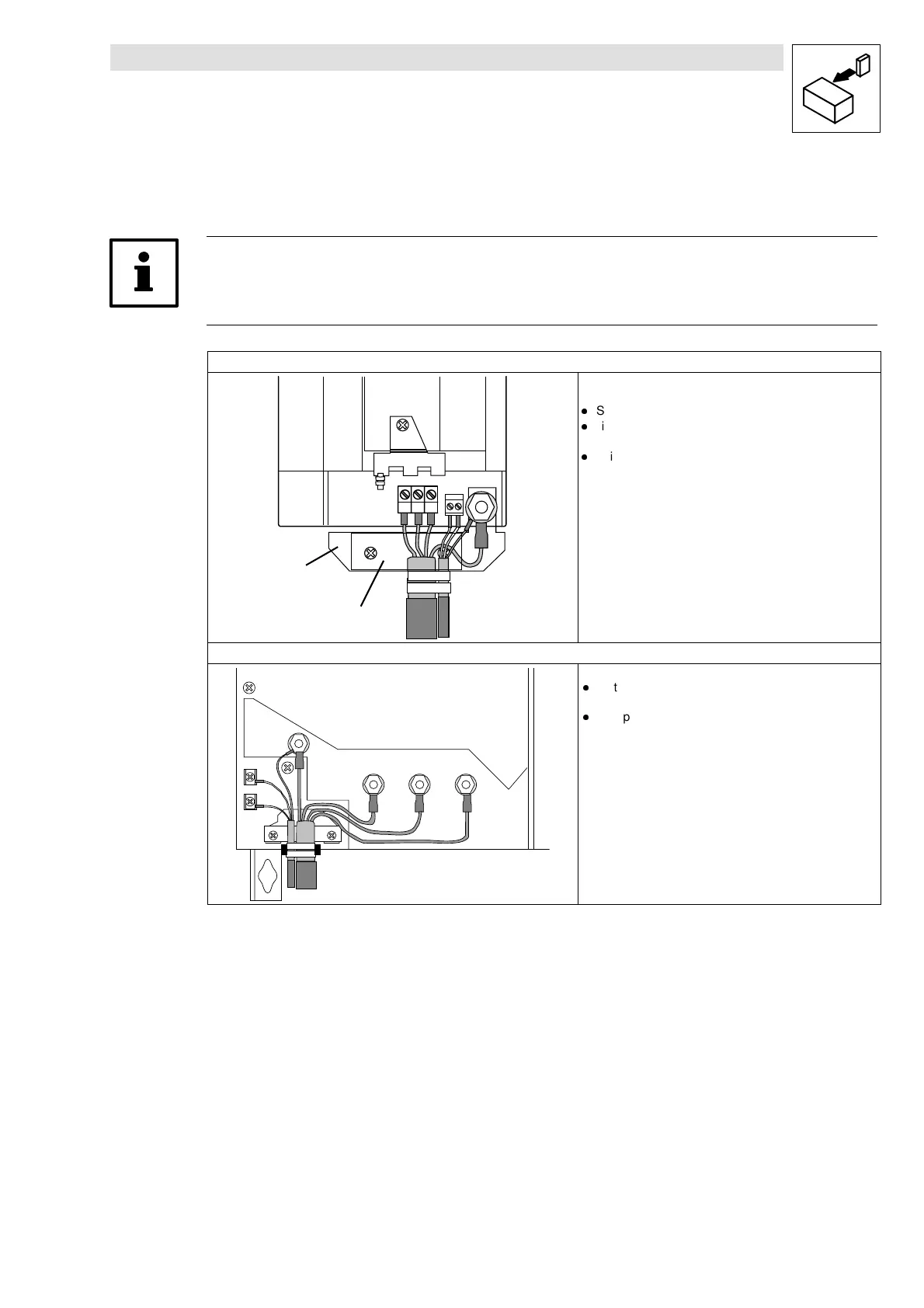

4.2.7.2 Motor connection
For EMC safety reasons, we recommend the use of screened motor cables.
Note!
Thescreeningofthemotor cablesisonlyrequiredto complywithexistingstandards(e.g. VDE0160,
EN 50178).
Types 9321 to 9326
UVW
PE
U
V
W
T1 T2


Correct screen connection with screened cables
(required parts in the accessory kit):
l Screw sreen plate  on fixing bracket ó.
l Fix the screen of the motor cable and thermal contact, if
necessary. Do not use as a strain relief!
l To improve the screen connection: Connect screens
additionally at the stud PE next to the motor connections.
Types 9327 to 9329
PE
T1
T2
UVW
Correct screen connection with screened cables:
l Fix the screen of the motor cable and thermal
contact, if necessary. Do not use as a strain relief!
l To improve the screen connection: Connect screens
additionally at the stud PE next to the motor
connections.
