Lenze EVS9324-EK User Manual

Function block library
7-160

SHB9300CRV EN 2.0
7.6.50 Master selection (MSEL)
Two function blocks (MSEL1 und MSEL2) are available.
Purpose
Selection of a master value source from four possible master values.
l MSEL1: FB for digital frequency or speed signals
l MSEL2: FB for phase signals

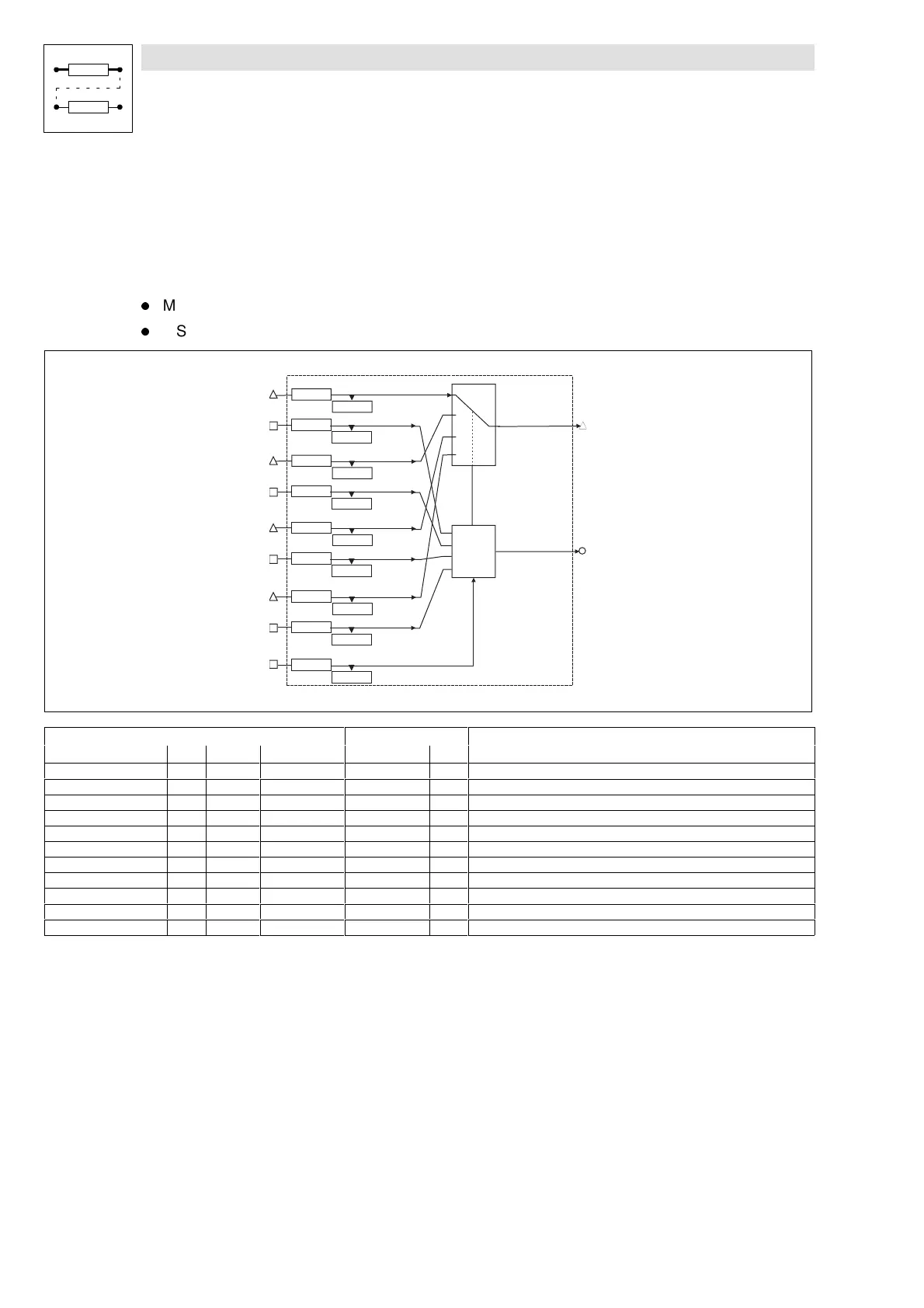

M SEL1
M SEL1-O UT
M SEL1-DFIN1
M SEL1-M VAL
C 1398/1
C 1399/1
M SEL1-EN-M 1
C 1394/1
C 1395/1
M SEL1-DFIN2
C 1398/2
C 1399/2
M SEL1-EN-M 2
C 1394/2
C 1395/2
M SEL1-DFIN3
C 1398/3
C 1399/3
M SEL1-EN-M 3
C 1394/3
C 1395/3
M SEL1-DFIN4
C 1398/4
C 1399/4
M SEL1-EN-M 4
C 1394/4
C 1395/4
M SEL1-LO CK
C 1394/5
C 1395/5
CTRL
Signal Source
Note
Name Type DIS DIS format CFG List
N
o
t
e
MSEL1-EN-M1 d 1395/1 bin 1394/1 2 Activation master value 1
MSEL1-EN-M2 d 1395/2 bin 1394/2 2 Activation master value 2
MSEL1-EN-M3 d 1395/3 bin 1394/3 2 Activation master value 3
MSEL1-EN-M4 d 1395/4 bin 1394/4 2 Activation master value 4
MSEL1-LOCK d 1395/5 bin 1394/5 2 Locking
MSEL1-DFIN1 phd 1399/1 dec[rpm] 1398/1 4 Master value input 1
MSEL1-DFIN2 phd 1399/2 dec[rpm] 1398/2 4 Master value input 2
MSEL1-DFIN3 phd 1399/3 dec[rpm] 1398/3 4 Master value input 3
MSEL1-DFIN4 phd 1399/4 dec[rpm] 1398/4 4 Master value input 4
MSEL1-OUT phd 13701 - - - Master value output
MSEL1-MVAL a 13701 - - - Selected master value input
