7.6.42 Freely assignable input variables (FEVAN)
Purpose
Transfer of analog signalsto any code.At the sametime, the FB converts the signal to the dataformat
of the target code.
FEVAN1-IN
C1098
C1096
C1093
C1094
CTRL
+
+
C1095
S&H
C1099/1
FEVAN1-LOAD
C1097/1
C1090
Code/Subcode
(Cxxxx/yy)
C1092
C1091
FEVAN1-BUSY
FEVAN1
1
C1099/2
FEVAN1-BUSY-IN
C1097/2
1
C1099/3
FEVAN1-FAIL-IN
C1097/3
FEVAN1-FAIL

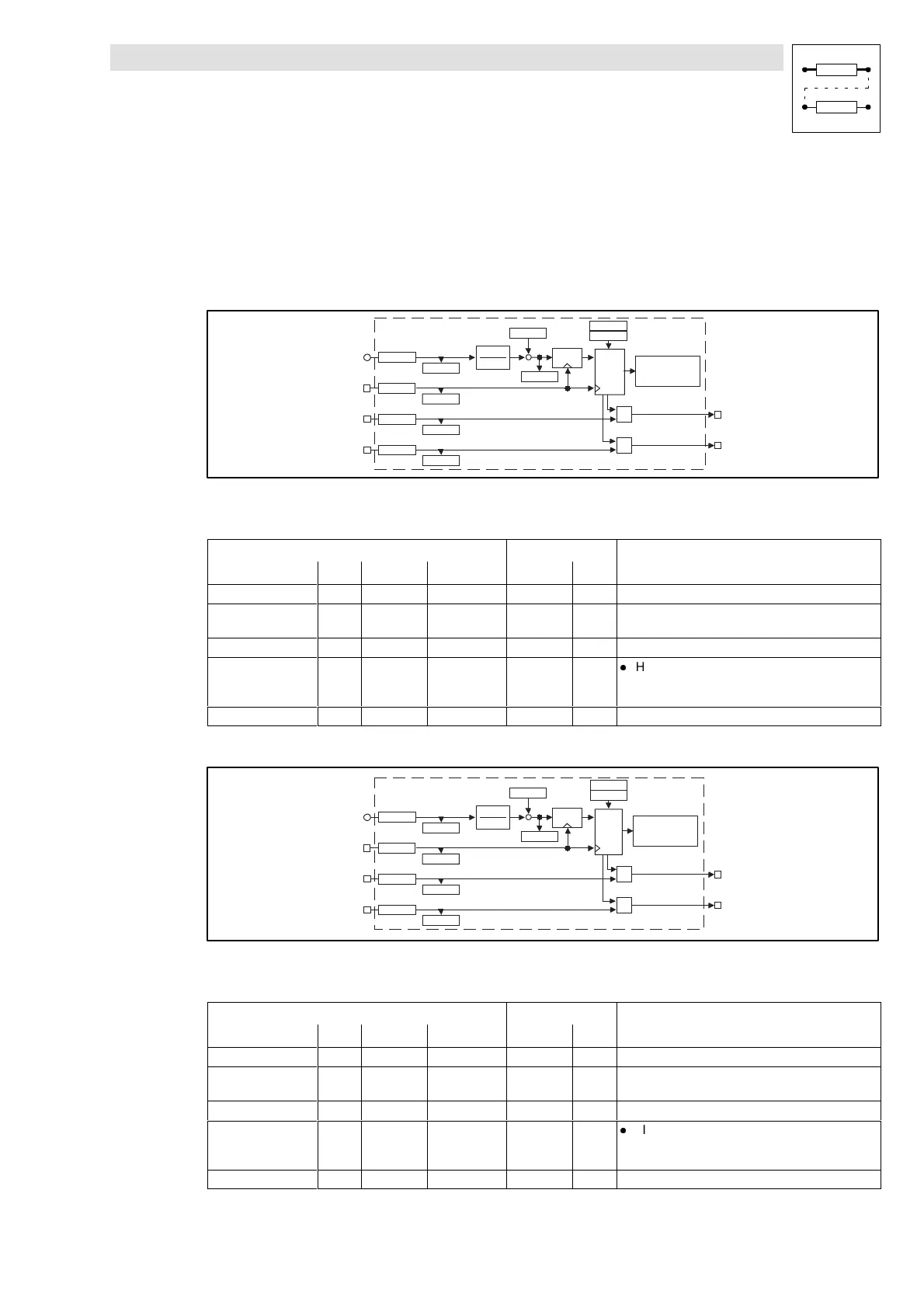

Fig. 7-98 Freely assignable input variables (FEVAN1)
Signal
Source Note
Name Type DIS DIS format CFG List
FEVAN1-IN a C1098 dec C1096 1 Input value
FEVAN1-LOAD d C1099 bin C1097 2 A LOW-HIGH edge transmits the converted signal to the
target code.
FEVAN1-BUSY d - - - - HIGH = transmitting
FEVAN1-FAIL d - - - - l HIGH = transmission failed
– A LOW-HIGH edge at FEFAN1-LOAD switches
FEFAN1-FAIL = LOW.
- - C1090 - - - Display of the converted signal
FEVAN2-IN
C1508
C1506
C1503
C1504
CTRL
+
+
C1505
S&H
C1509/1
FEVAN2-LOAD
C1507/1
C1500
Code/Subcode
(Cxxxx/yy)
C1502
C1501
FEVAN2-BUSY
FEVAN2
1
C1509/2
FEVAN2-BUSY-IN
C1507/2
1
C1509/3
FEVAN2-FAIL-IN
C1507/3
FEVAN2-FAIL
Fig. 7-99 Freely assignable input variables (FEVAN2)
Signal
Source Note
Name Type DIS DIS format CFG List
FEVAN2-IN a C1508 dec C1506 1 Input value
FEVAN2-LOAD d C1509 bin C1507 2 A LOW-HIGH edge transmits the converted signal to the
target code.
FEVAN2-BUSY d - - - - HIGH = transmitting
FEVAN2-FAIL d - - - - l HIGH = transmission failed
– A LOW-HIGH edge at FEFAN2-LOAD switches
FEFAN2-FAIL = LOW.
- - C1500 - - - Display of the converted signal
