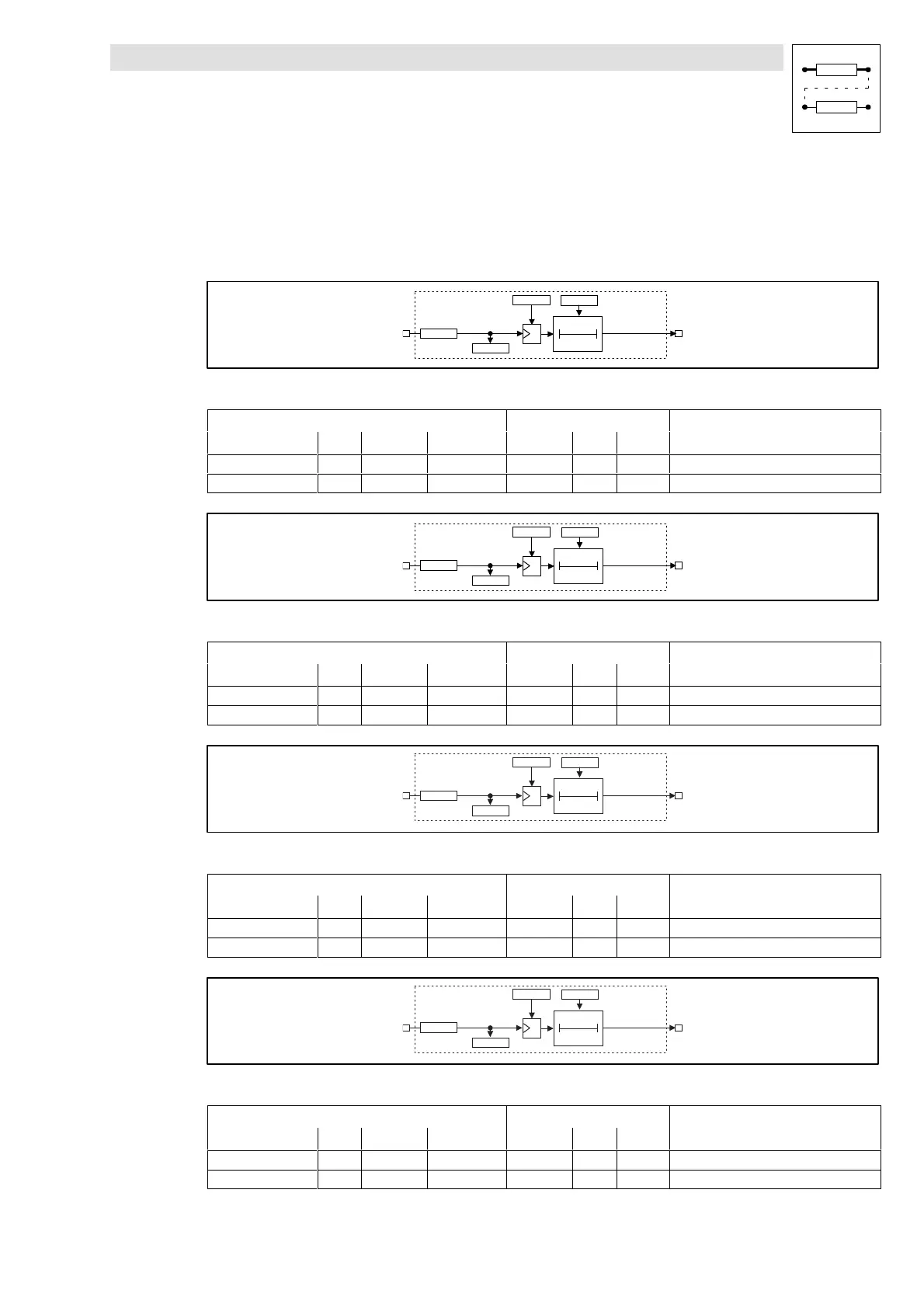

7.6.75 Edge evaluation (TRANS)
Purpose
This functionis used to evaluatedigitalsignaledgesand convert them into pulseswith adefined time.
t
0
TRANS1-IN
C0714
TRANS1-OUT
TRANS1
C0711
C0710
C0713
Fig. 7-184 Edge evaluation (TRANS1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
TRANS1-IN d C0714 bin C0713 2 1000 -
TRANS1-OUT d - - - - - -
t
0
TRANS2-IN
C0719
TRANS2-OUT
TRANS2
C0716
C0715
C0718
Fig. 7-185 Edge evaluation (TRANS2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
TRANS2-IN d C0719 bin C0718 2 1000 -
TRANS2-OUT d - - - - - -
t
0
TRANS3-IN
C 1144
TRANS3-O UT
TRANS3
C 1141
C 1140
C 1143
Fig. 7-186 Edge evaluation (TRANS3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
TRANS3-IN d C1144 bin C1143 2 1000 -
TRANS3-OUT d - - - - - -
t
0
TRANS3-IN
C 1144
TRANS3-O UT
TRANS3
C 1141
C 1140
C 1143
Fig. 7-187 Edge evaluation (TRANS4)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
TRANS4-IN d C1149 bin C1148 2 1000 -
TRANS4-OUT d - - - - - -
