7.6.27 Characteristic function (CURVE)
Purpose
Conversion of an analog signal into a characteristic.
2
1
3
2
1
3
Y 0 = C 0 9 6 1
Y 1 = C 0 9 6 2
Y 2 = C 0 9 6 3
Y100 = C 0964
X 1 = C 0 9 6 5
X 2 = C 0 9 6 6
Characteristic 1
x
y
y100
y0
Characteristic 2
x
y
y100
y0
y1
x1
Characteristic 3
x
y
y100
y0
y1
y2
x1
x2
CURVE1-IN
C 0968
C 0967
C 0960
CURVE1
CURVE1-OUT

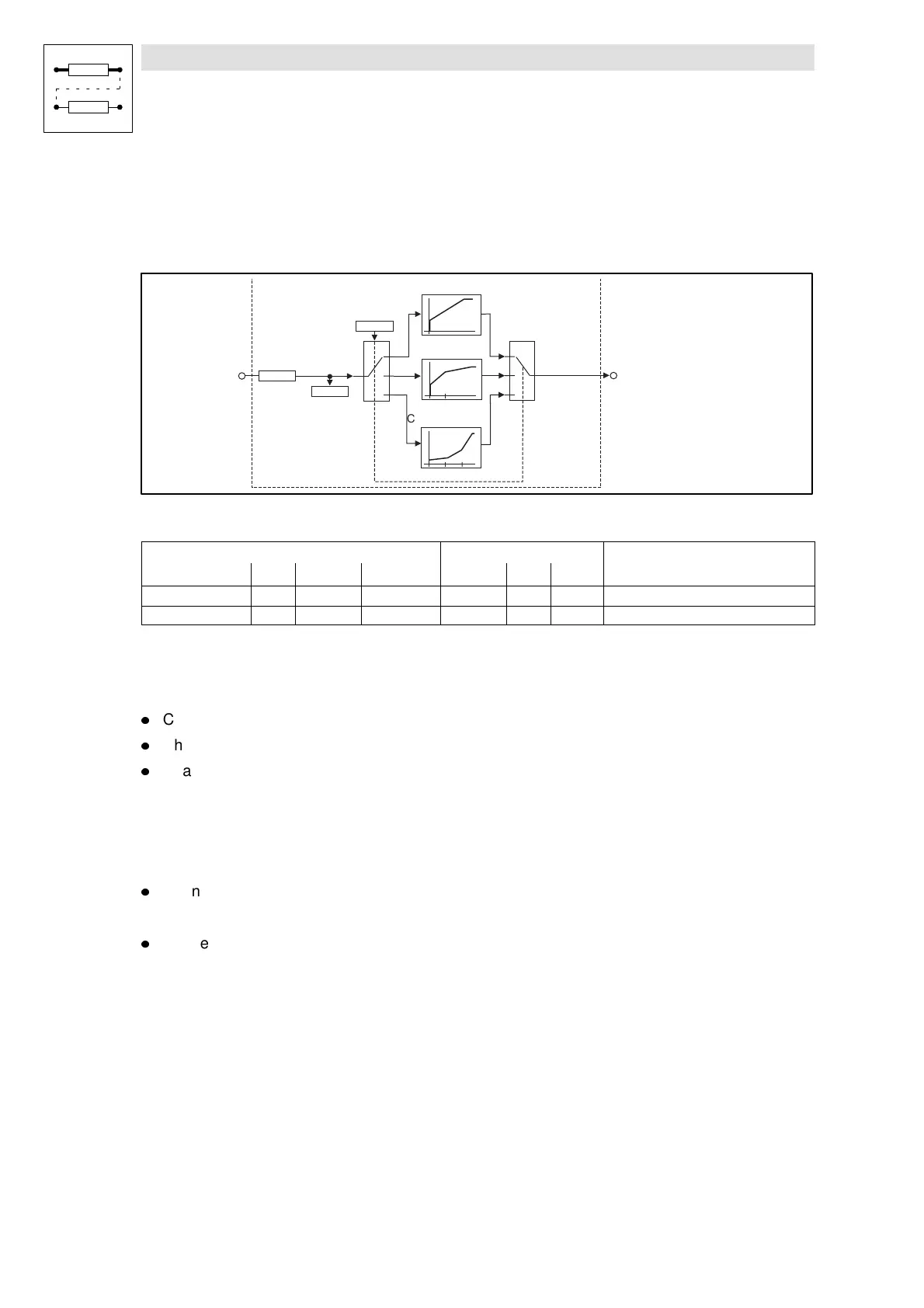

Fig. 7-66 Characteristic function (CURVE1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CURVE1- IN a C0968 dec [%] C0967 1 5001 -
CURVE1- OUT a - - - - - -
Scope of functions
Under C0960, you can select the function:
l Characteristic with two co-ordinates
l Characteristic with three co-ordinates
l Characteristic with four co-ordinates
The codes for entering the co-ordinates can be obtained from the line diagrams.
A linear interpolation is carried out between the co-ordinates.
For negative input values at CURVEx-IN, the settings of the co-ordinates are processed inversely
(see line diagrams).If this is not required:
l Connect absolute value generator (ABS) before or after the CURVE function block
or
l Connect limiter (LIM) before or after the CURVE function block
