7.6.53 OR operation (OR)
Purpose
Logic ORoperation of digital signals. The operations can be used for the control of functions or the
generation of status information.
OR1
1
OR1-IN1
OR1-IN2
OR1-IN3
OR1-OUT
C0831/1
C0831/2
C0831/3
C0830/1
C0830/2
C0830/3

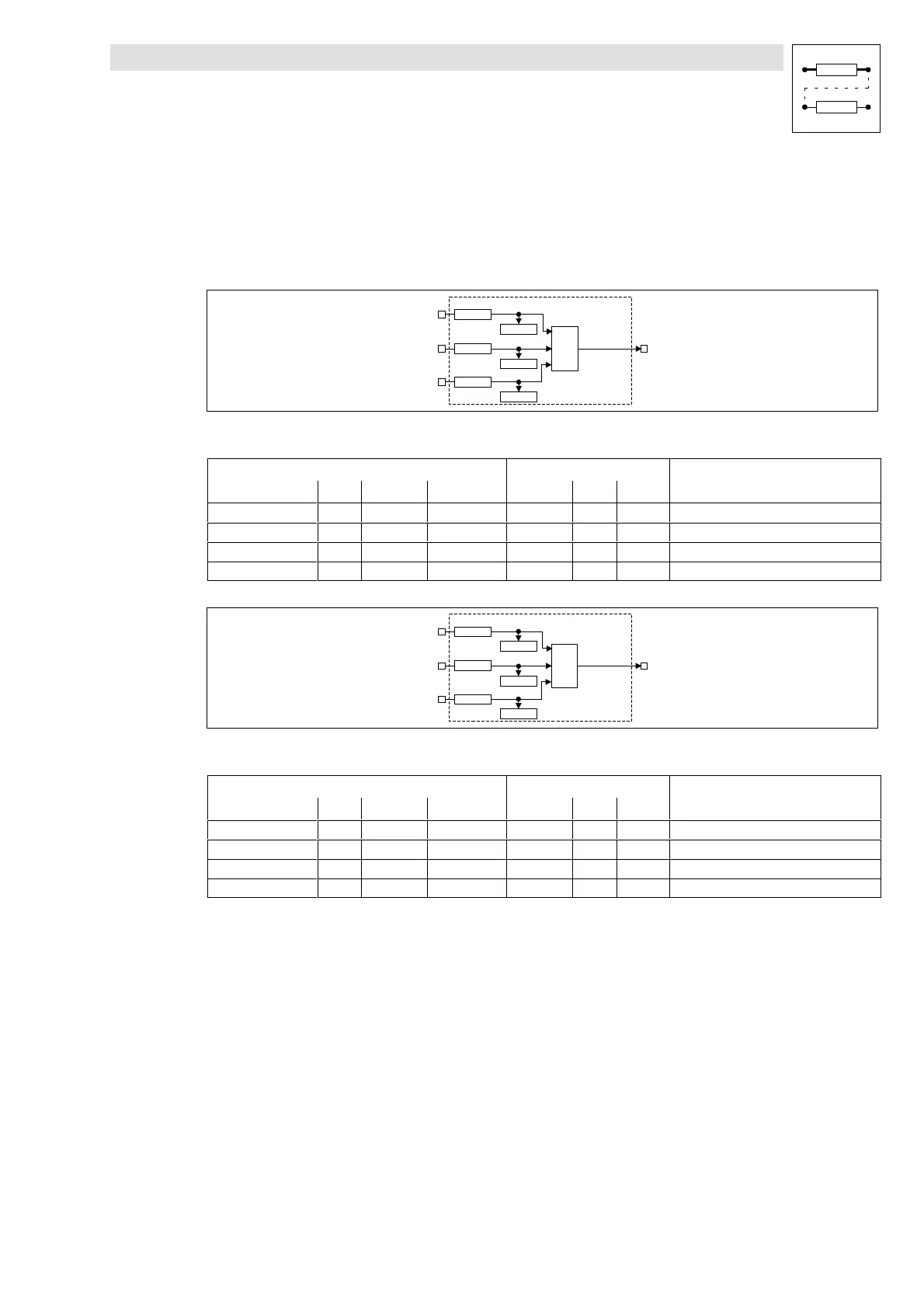

Fig. 7-128 OR operation
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
OR1-IN1 d C0831/1 bin C0830/1 2 1000 -
OR1-IN2 d C0831/2 bin C0830/2 2 1000 -
OR1-IN3 d C0831/3 bin C0830/3 2 1000 -
OR1-OUT d - - - - - -
OR2
1
OR2-IN1
OR2-IN2
OR2-IN3
OR2-OUT
C0833/1
C0833/2
C0833/3
C0832/1
C0832/2
C0832/3
Fig. 7-129 OR operation (OR2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
OR2-IN1 d C0833/1 bin C0832/1 2 1000 -
OR2-IN2 d C0833/2 bin C0832/2 2 1000 -
OR2-IN d C0833/3 bin C0832/3 2 1000 -
OR2-OUT d - - - - - -
