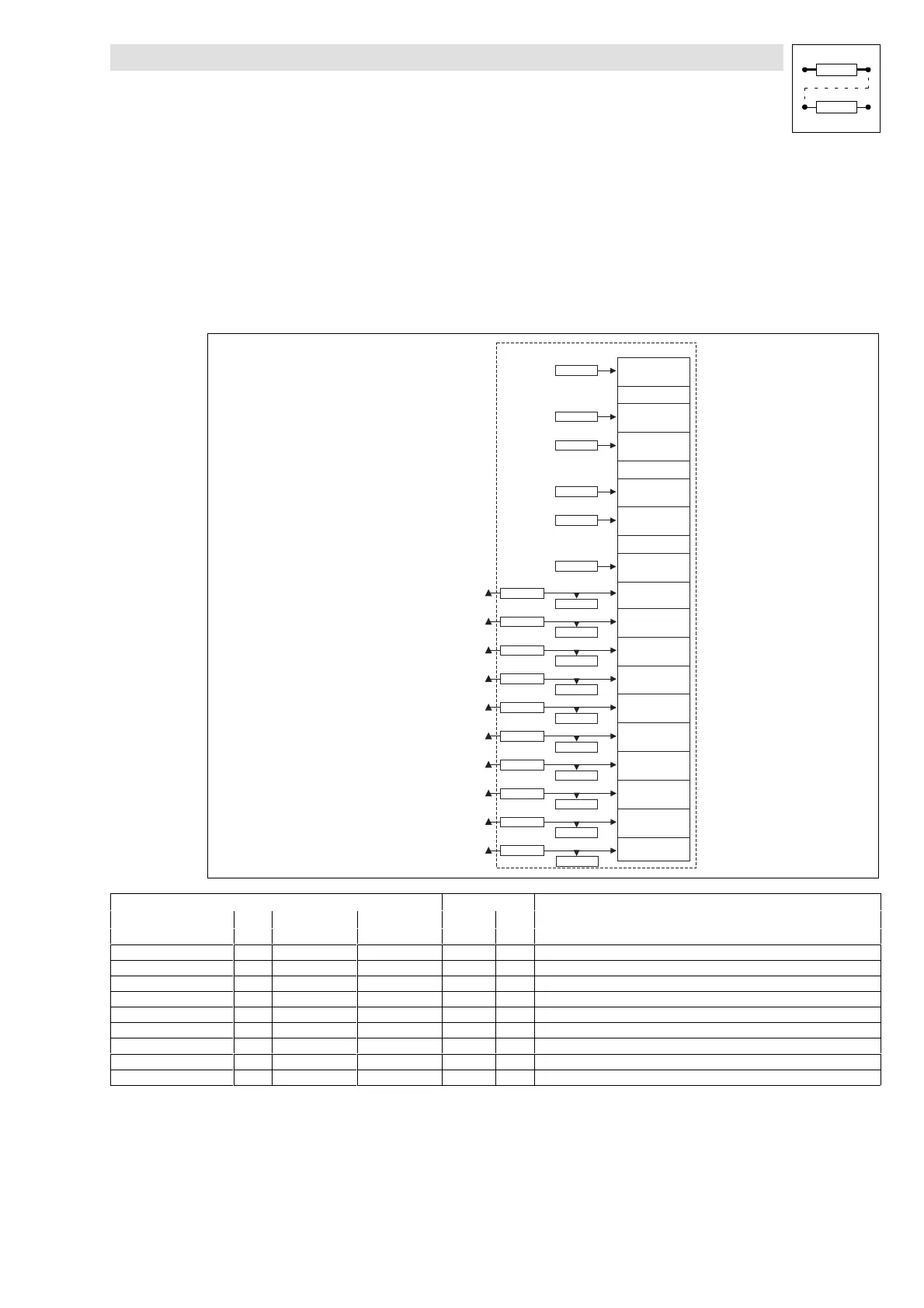

7.6.77 Positioning control (VTPOSC)
One function block (VTPOSC)is available.
Purpose
The FB is similar to the FB VTPOSC of the positioning controller (see Manual for Positioning
Controller). Changes were made to adapt it to the cam profiler. It is used to provide the switch point
positions for the switch point function blocks (SPC1/2).
VTPOSC-IN1
VTPOSC
C 1360/1
C 1361/1
VTPOSC-IN2
C 1360/2
C 1361/2
VTPOSC-IN9
C 1360/9
C 1361/9
C 1476/16
VTPOSC-No 16
VTPOSC-No 43
VTPOSC-No 44
VTPOSC-No 51
VTPOSC-IN10
C 1360/10
C 1361/10
VTPOSC-No 52
C 1476/1
VTPOSC-No 1
...
VTPOSC-IN3
C 1360/3
C 1361/3
VTPOSC-No 45
VTPOSC-IN4
C 1360/4
C 1361/4
VTPOSC-No 46
VTPOSC-IN5
C 1360/5
C 1361/5
VTPOSC-No 47
VTPOSC-IN6
C 1360/6
C 1361/6
VTPOSC-No 48
VTPOSC-IN7
C 1360/7
C 1361/7
VTPOSC-No 49
VTPOSC-IN8
C 1360/8
C 1361/8
VTPOSC-No 50
...
C 1477/16
VTPOSC-No 32
C 1477/1
VTPOSC-No 17
...
...
C 0474/10
VTPOSC-No 42
C 0474/1
VTPOSC-No 33
...
...
Signal Source Note
Name Type DIS DIS format CFG List
VTPOSC-IN1 ph C1361/1 dec[inc] C1360/1 VTPOSC-No 43
VTPOSC-IN2 ph C1361/2 dec[inc] C1360/2 VTPOSC-No 44
VTPOSC-IN3 ph C1361/3 dec[inc] C1360/3 VTPOSC-No 45
VTPOSC-IN4 ph C1361/4 dec[inc] C1360/4 VTPOSC-No 46
VTPOSC-IN5 ph C1361/5 dec[inc] C1360/5 VTPOSC-No 47
VTPOSC-IN6 ph C1361/6 dec[inc] C1360/6 VTPOSC-No 48
VTPOSC-IN7 ph C1361/7 dec[inc] C1360/7 VTPOSC-No 49
VTPOSC-IN8 ph C1361/8 dec[inc] C1360/8 VTPOSC-No 50
VTPOSC-IN9 ph C1361/9 dec[inc] C1360/9 VTPOSC-No 51
VTPOSC-IN10 ph C1361/10 dec[inc] C1360/10 VTPOSC-No 52
