7.6.23 Phase conversion (CONVPHPH)
Purpose
Conversion of a phase signal with dynamic fracture.
CONVPHPH1
CONVPHPH1-
O U T
CONVPHPH1-IN
C 1247
C 1242
CONVPHPH1-NUM
C 1245/1
C 1240/1
CONVPHPH1_DEN
C 1245/2
C 1240/2
1
x
y
C 1241
C 1246
CONVPHPH1_ACT

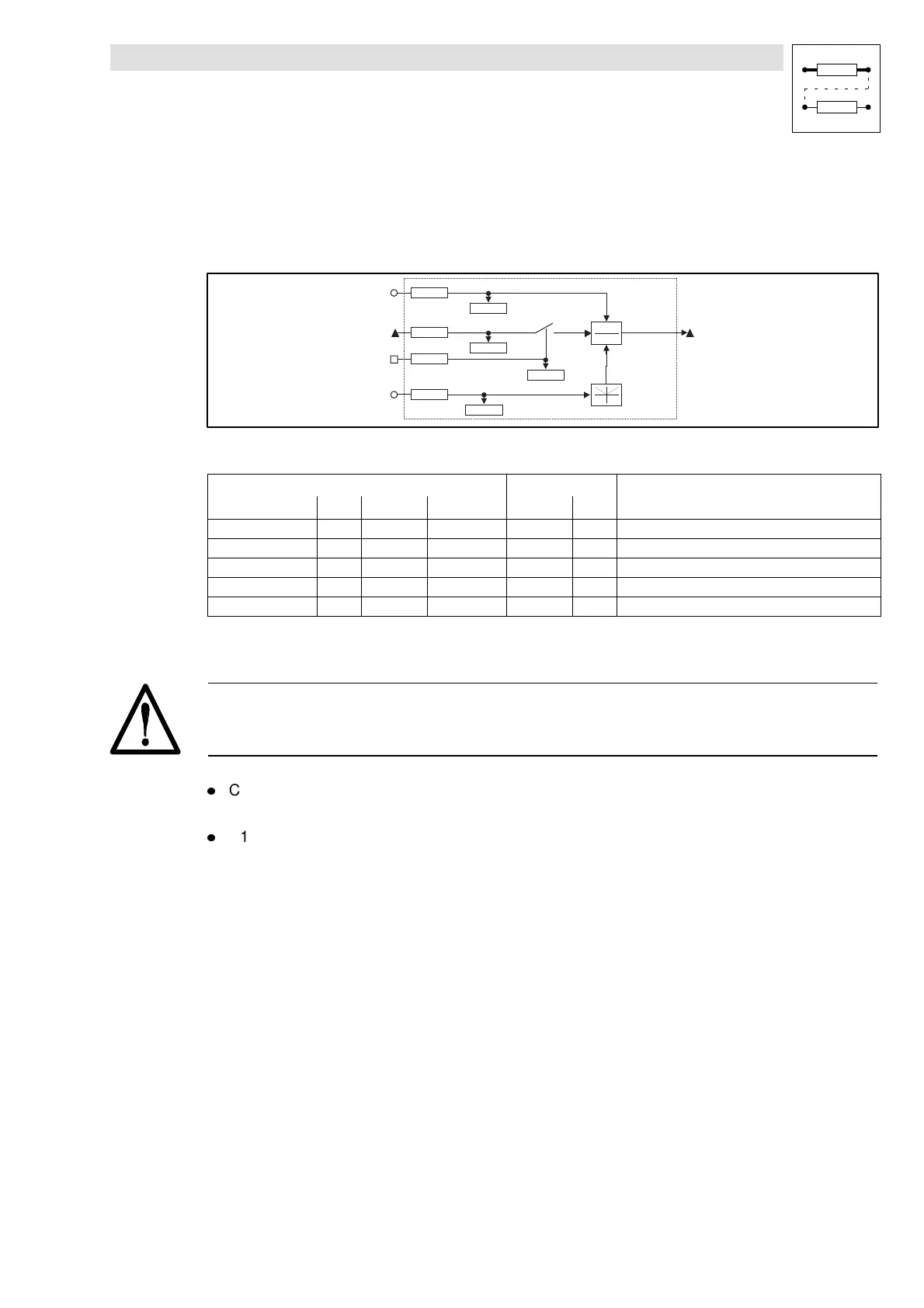

Fig. 7-64 Phase conversion (CONVPHPH1)
Signal
Source Note
Name Type DIS DIS format CFG List
CONVPHPH1-IN ph C1247 dec [inc] C1242 3 -
CONVPHPH1-NUM a C1245/1 dec C1240/1 1 Numerator
CONVPHPH1-DEN a C1245/2 dec C1240/2 1 Denominator (with absolute value generation)
CONVPHPH1-ACT d C1246 bin C1241 2 -
CONVPHPH1-OUT ph - - - - without limitation, remainder considered
Function
Caution!
Theconversionresult isnotlimited.Theresult mustthereforenotexceed therangeof±2147483647.
l C1241 = HIGH
– The phase signal at CONVPHPH1-IN is evaluated using the factor from C1245/1 / C1245/2.
l C1241 = LOW
– The value 0 is evaluated using the factor from C1245/1 / C1245/2.
