7.6.72 Memory block (STORE)
Purpose
Saves a setpoint phase signal which is created from a speed signal. The saving is activated via the
TP input Ex.
C 1216/1
STORE1-IN
C 1211/1
C 1215/1
STORE1-RESET
C 1210/1
C 1216/2
C 1211/2
STORE1-M ASKI
C 1217
STORE1-M ASKV
C 1212
> M askv
C 1215/3
STORE1-ENW IN
C 1210/3
C 1215/2
STORE1-ENTP
C 1210/2
&
_
> 1
_
> 1
_
R
D
1
1
0
TP Eingang E5
0
C 1215/4
CTR
C 1210/4
C 1215/5
STORE1-LOAD1
C 1210/5
> 1
_
2
1
R
C
L
Reg1
R
C
Reg2
R
C
S&H
R
C
+
-
STORE1-PHDIFF
STORE1-PH1
STORE1-PH2
STORE1-ACT
STORE1-TP-INH
STORE1
STORE1-LOAD0

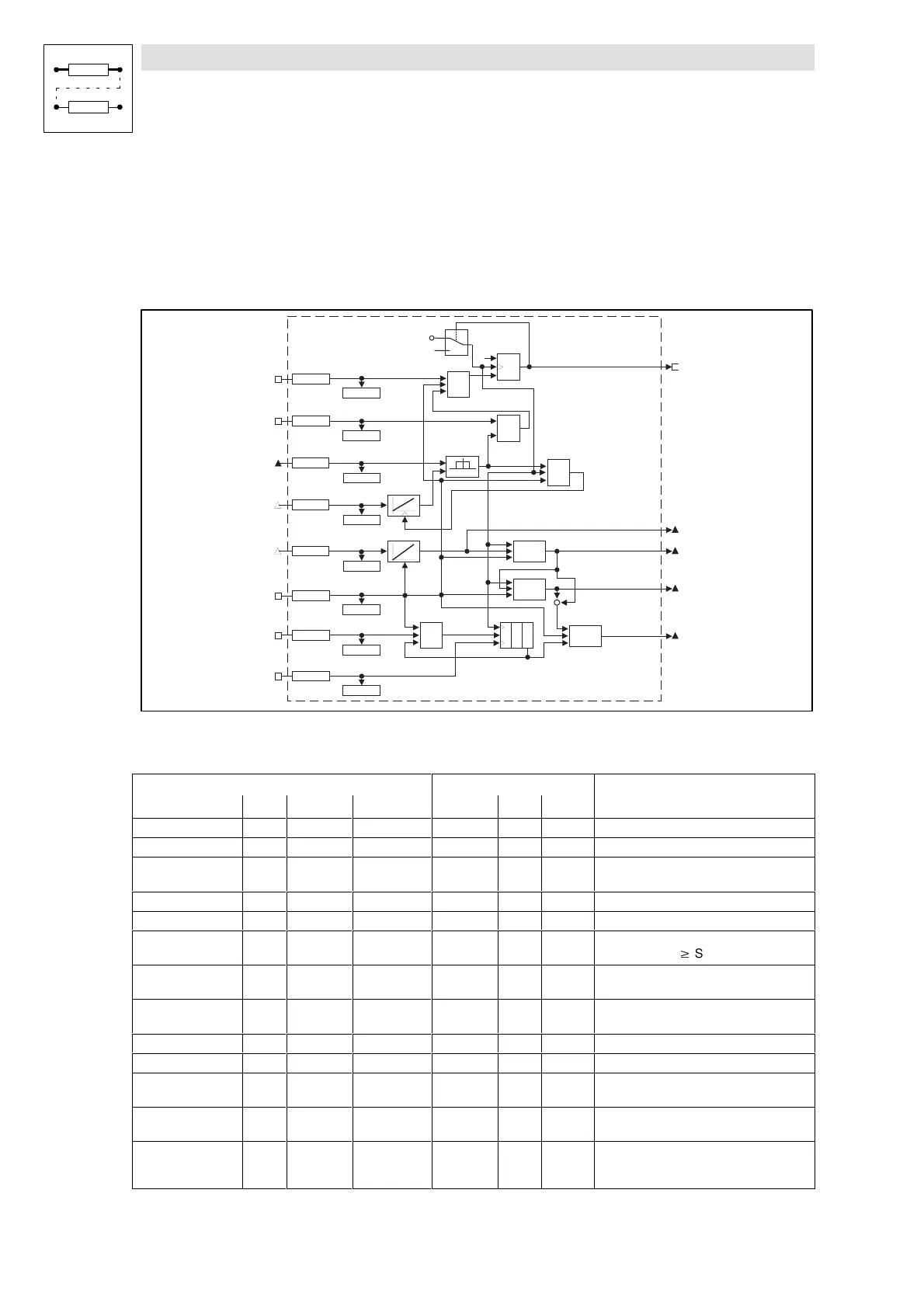

Fig. 7-178 Memory block (STORE1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
STORE1-IN phd C1216/1 dec [rpm] C1211/1 4 1000 -
STORE1-RESET d C1215/1 bin C1210/1 2 1000 HIGH = resets all functions
STORE1-ENTP d C1215/2 bin C1210/2 2 1000 HIGH = enables the triggering via the
TP input E5
STORE1-MASKI phd C1216/2 dec [rpm] C1211/2 4 1000 -
STORE1-MASKV ph C1217 dec [inc] C1212 3 1000 -
STORE1-ENWIN d C1215/3 bin C1210/3 2 1000 HIGH = signal is enabled when |
STORE1-MASKI |

STORE1-MASKV
STORE1-LOAD0 d C1215/4 bin C1210/4 2 1000 HIGH = resets the counter which controls the
output STORE1-PHDIFF
STORE1-LOAD1 d C1215/5 bin C1012/5 2 1000 LOW-HIGH edge = sets the counter = 1,
which controls the output STORE1-PHDIFF
STORE1-ACT ph - - - - - Outputs the current, integrated value
STORE1-PH1 ph - - - - - Outputs the last value stored by X5/E5
STORE1-PH2 ph - - - - - Outputs the last but one value stored by
X5/E5
STORE1-PHDIFF ph - - - - - Outputs the difference between STORE1-PH1
and STORE1-PH2
STORE1-TP-INH d - - - - - HIGH = Triggering via TP input E5 was carried
out. For another triggering, a positive edge
must occur at the input STORE1-ENTP.
