Lenze EVS9324-EK User Manual

Configuration
7-249

SHB9300CRV EN 2.0

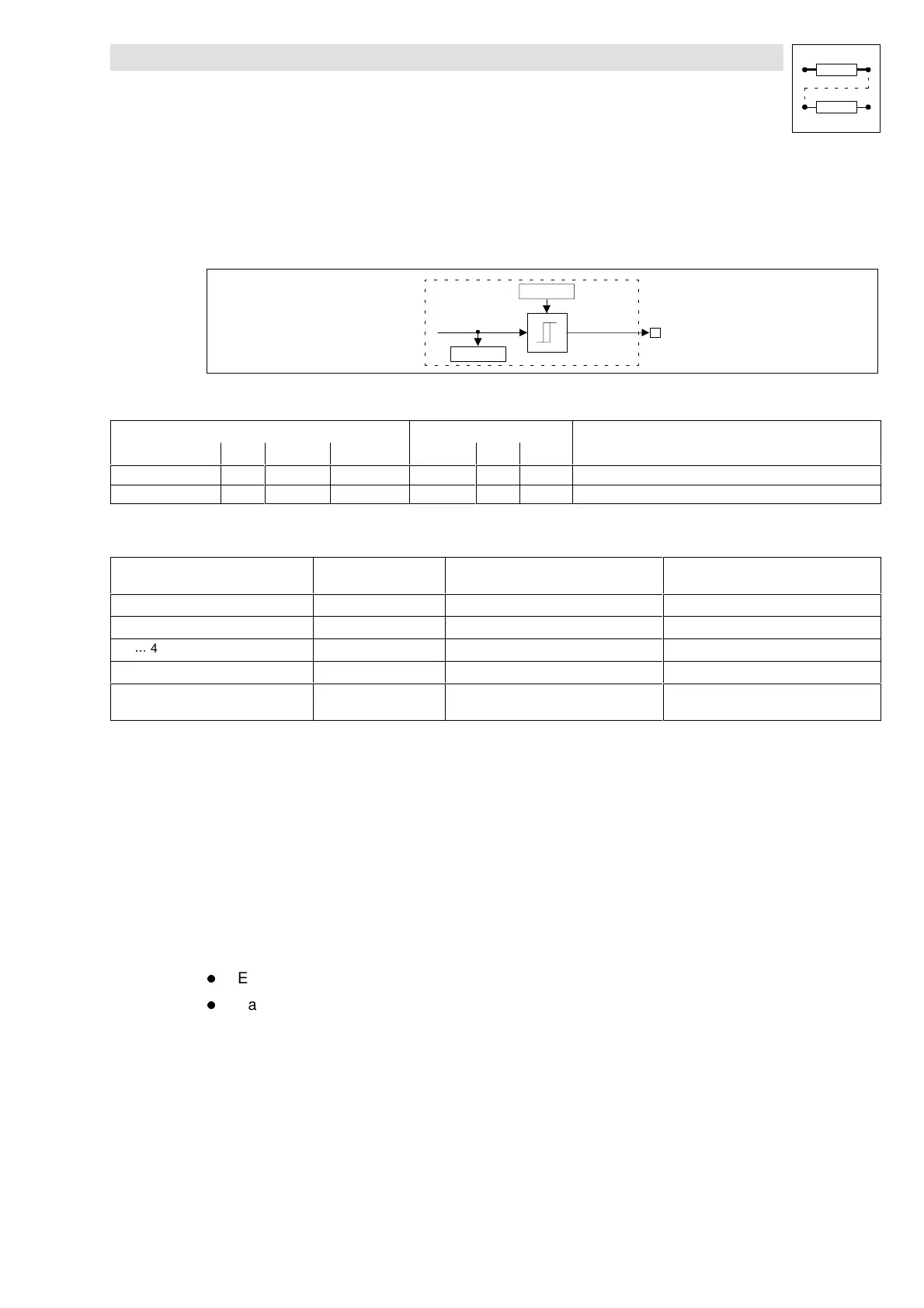

7.7.3.2 Overvoltage OU
Purpose
Monitores the DC bus. Protects the controller.
MONIT
V
G
-VOLTAGE
MONIT-OU
C0053
C0173
Fig. 7-195 Overvoltage OU
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
V
G
-VOLTAGE - C0053 dec - - - -
MONIT-OU d - - - - - -
Mains voltage range Selection number
(C0173)
Switch-off threshold OU Switch-on threshold OU
< 400 V 0 770 V 755 V
400 V 1 770 V 755 V
400
¡
460 V 2 770 V 755 V
480 V without brake chopper 3 770 V 755 V
Operation with brake chopper (up to 480
V)
4 800 V 785 V
Function
The monitoring will be activated if the DC-bus voltage (terminals +U
G
and -U
G
) falls below the
threshold (switch-off threshold OU) which has been set under code C0173.
The message will be reset when the value falls below the switch-on threshold OU.
Thetableaboveshows thesettings for the switching thresholds according to the selectionnumbers.
The switch-off threshold OU determines the voltage level of the DC-bus voltage at which the pulse
will be inhibited.
The selection number also applies to the undervoltage monitoring (LU).
Features:
l LECOM No.: 1020
l Reaction: MESSAGE (unchangeable)
