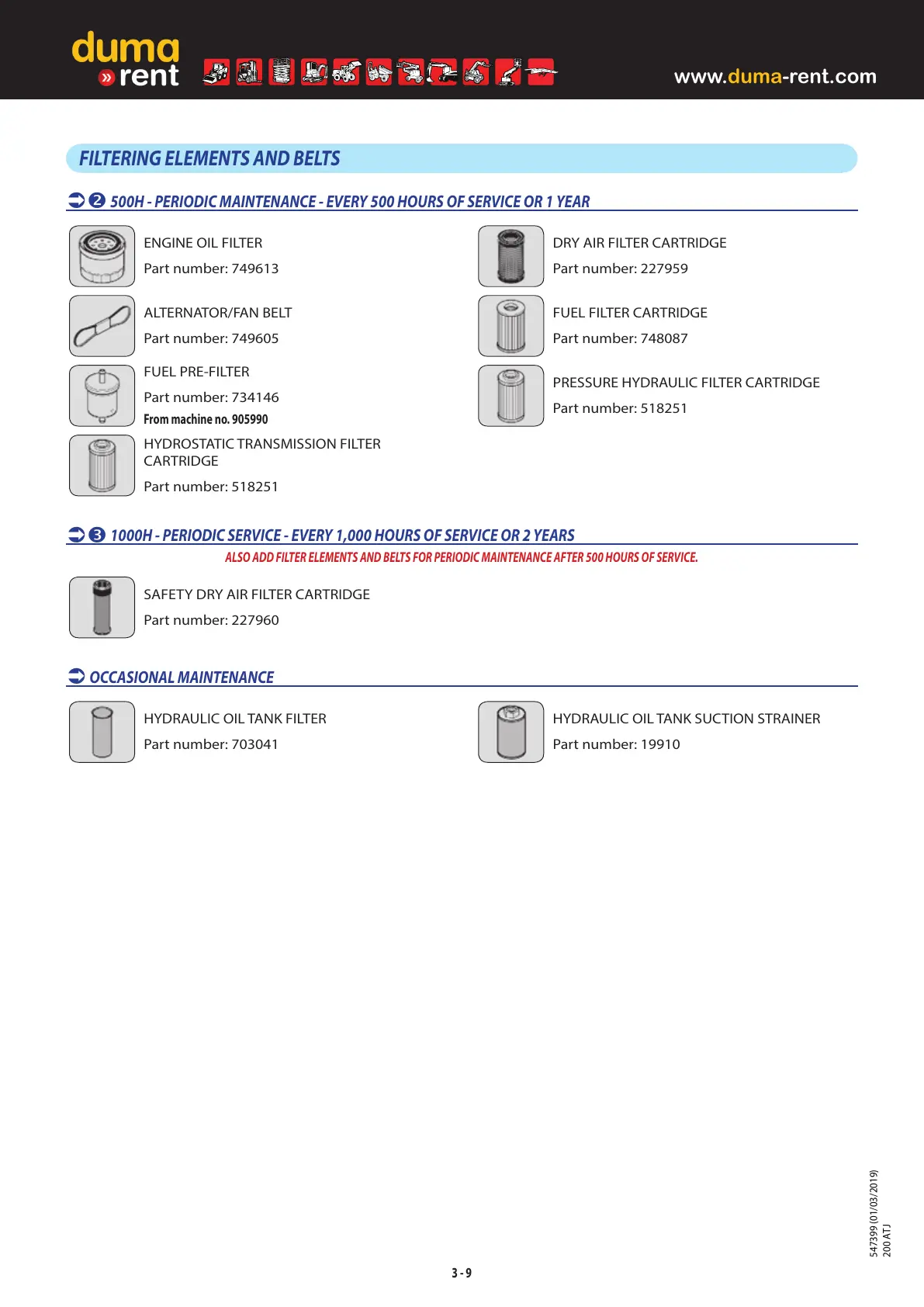

FILTERING ELEMENTS AND BELTS

Âo

500H - PERIODIC MAINTENANCE - EVERY 500 HOURS OF SERVICE OR 1 YEAR

ENGINE OIL FILTER

Part number: 749613

DRY AIR FILTER CARTRIDGE

Part number: 227959

ALTERNATOR/FAN BELT

Part number: 749605

FUEL FILTER CARTRIDGE

Part number: 748087

FUEL PRE-FILTER

Part number: 734146

From machine no. 905990

PRESSURE HYDRAULIC FILTER CARTRIDGE

Part number: 518251

HYDROSTATIC TRANSMISSION FILTER

CARTRIDGE

Part number: 518251

Âp

1000H - PERIODIC SERVICE - EVERY 1,000 HOURS OF SERVICE OR 2 YEARS

ALSO ADD FILTER ELEMENTS AND BELTS FOR PERIODIC MAINTENANCE AFTER 500 HOURS OF SERVICE.

SAFETY DRY AIR FILTER CARTRIDGE

Part number: 227960

OCCASIONAL MAINTENANCE

HYDRAULIC OIL TANK FILTER

Part number: 703041

HYDRAULIC OIL TANK SUCTION STRAINER

Part number: 19910
