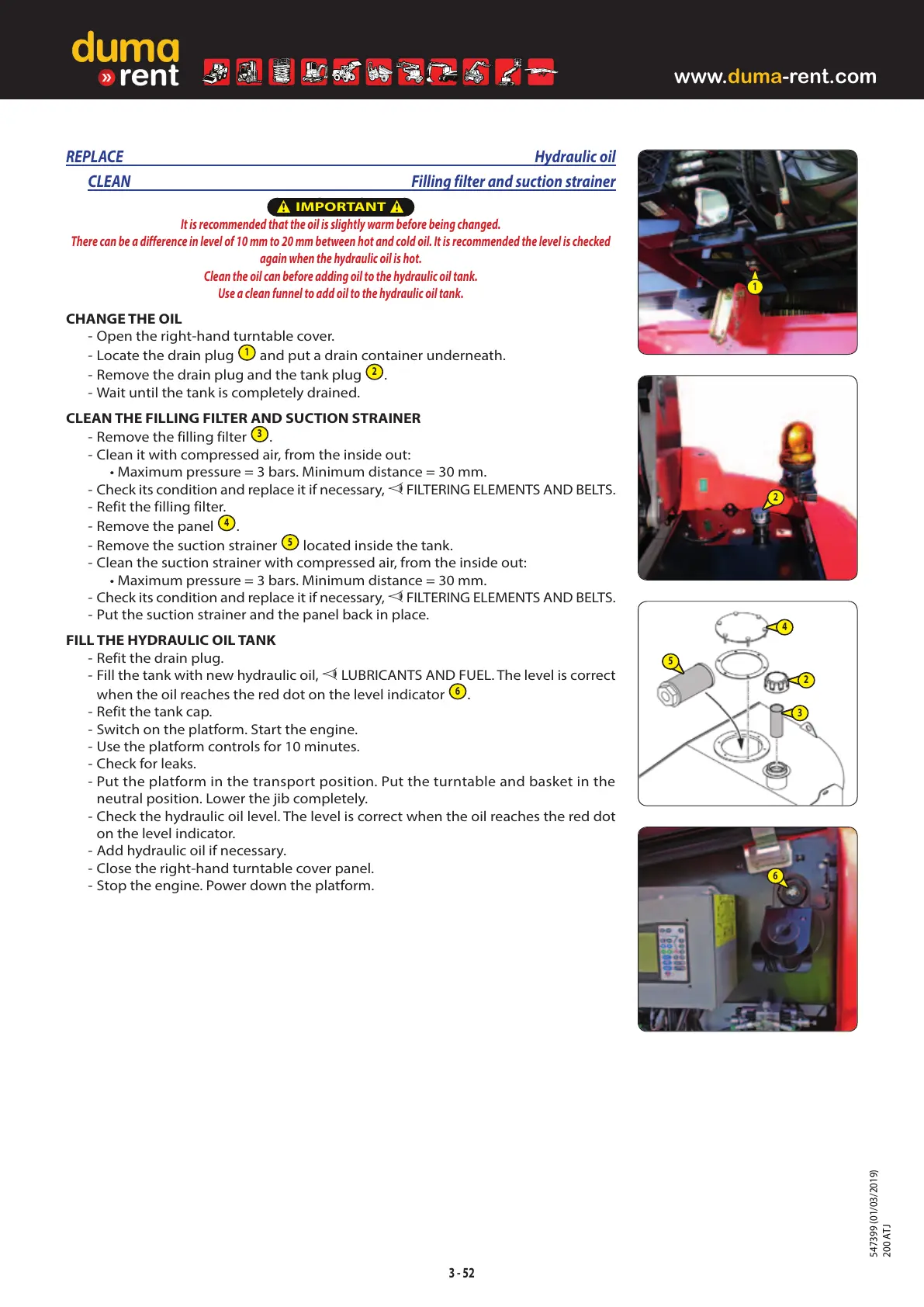

REPLACE Hydraulic oil
CLEAN Filling filter and suction strainer
IMPORTANT
It is recommended that the oil is slightly warm before being changed.
There can be a difference in level of 10 mm to 20 mm between hot and cold oil. It is recommended the level is checked
again when the hydraulic oil is hot.
Clean the oil can before adding oil to the hydraulic oil tank.
Use a clean funnel to add oil to the hydraulic oil tank.
CHANGE THE OIL
- Open the right-hand turntable cover.
- Locate the drain plug
1
and put a drain container underneath.
- Remove the drain plug and the tank plug
2
.
- Wait until the tank is completely drained.
CLEAN THE FILLING FILTER AND SUCTION STRAINER
- Remove the filling filter
3
.
- Clean it with compressed air, from the inside out:
• Maximum pressure = 3 bars. Minimum distance = 30 mm.
- Check its condition and replace it if necessary,
FILTERING ELEMENTS AND BELTS.
- Refit the filling filter.
- Remove the panel
4
.
- Remove the suction strainer
5
located inside the tank.
- Clean the suction strainer with compressed air, from the inside out:
• Maximum pressure = 3 bars. Minimum distance = 30 mm.
- Check its condition and replace it if necessary, FILTERING ELEMENTS AND BELTS.
- Put the suction strainer and the panel back in place.
FILL THE HYDRAULIC OIL TANK
- Refit the drain plug.
- Fill the tank with new hydraulic oil,
LUBRICANTS AND FUEL. The level is correct
when the oil reaches the red dot on the level indicator
6
.
- Refit the tank cap.
- Switch on the platform. Start the engine.
- Use the platform controls for 10 minutes.
- Check for leaks.
- Put the platform in the transport position. Put the turntable and basket in the
neutral position. Lower the jib completely.
- Check the hydraulic oil level. The level is correct when the oil reaches the red dot
on the level indicator.
- Add hydraulic oil if necessary.
- Close the right-hand turntable cover panel.
- Stop the engine. Power down the platform.
