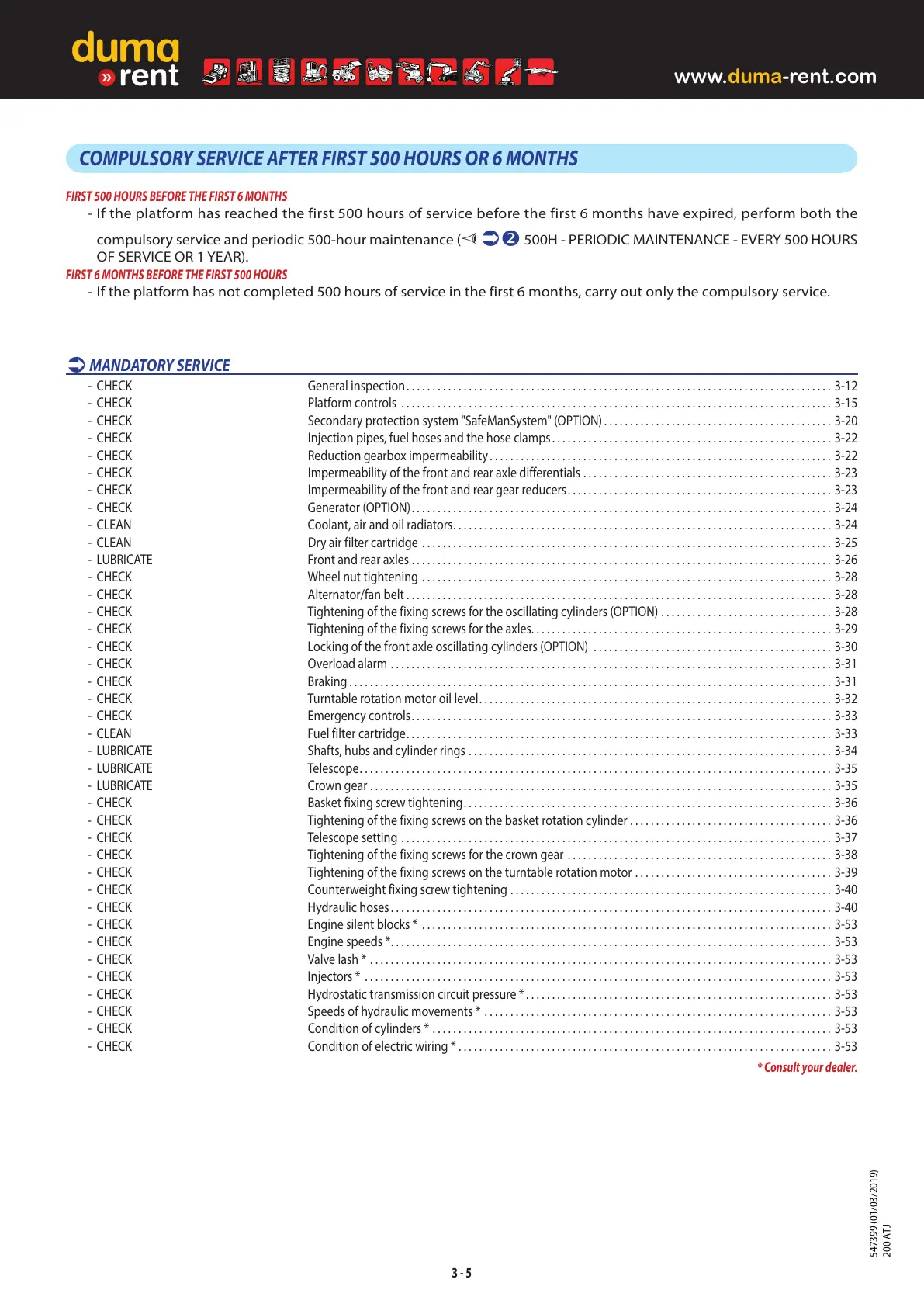

- CHECK General inspection.................................................................................. 3-12
- CHECK Platform controls ................................................................................... 3-15
- CHECK Secondary protection system "SafeManSystem" (OPTION) ............................................ 3-20
- CHECK Injection pipes, fuel hoses and the hose clamps ...................................................... 3-22
- CHECK Reduction gearbox impermeability .................................................................. 3-22
- CHECK Impermeability of the front and rear axle differentials ................................................ 3-23
- CHECK Impermeability of the front and rear gear reducers................................................... 3-23
- CHECK Generator (OPTION)................................................................................. 3-24
- CLEAN Coolant, air and oil radiators......................................................................... 3-24
- CLEAN Dry air filter cartridge ............................................................................... 3-25
- LUBRICATE Front and rear axles ................................................................................. 3-26
- CHECK Wheel nut tightening ............................................................................... 3-28
- CHECK Alternator/fan belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
- CHECK Tightening of the fixing screws for the oscillating cylinders (OPTION) ................................. 3-28
- CHECK Tightening of the fixing screws for the axles.......................................................... 3-29
- CHECK Locking of the front axle oscillating cylinders (OPTION) .............................................. 3-30
- CHECK Overload alarm ..................................................................................... 3-31
- CHECK Braking ............................................................................................. 3-31
- CHECK Turntable rotation motor oil level.................................................................... 3-32
- CHECK Emergency controls................................................................................. 3-33
- CLEAN Fuel filter cartridge.................................................................................. 3-33
- LUBRICATE Shafts, hubs and cylinder rings ...................................................................... 3-34
- LUBRICATE Telescope........................................................................................... 3-35
- LUBRICATE Crown gear ......................................................................................... 3-35
- CHECK Basket fixing screw tightening....................................................................... 3-36
- CHECK Tightening of the fixing screws on the basket rotation cylinder ....................................... 3-36
-
CHECK Telescope setting ................................................................................... 3-37
- CHECK Tightening of the fixing screws for the crown gear ................................................... 3-38
- CHECK Tightening of the fixing screws on the turntable rotation motor ...................................... 3-39
- CHECK Counterweight fixing screw tightening .............................................................. 3-40
- CHECK Hydraulic hoses ..................................................................................... 3-40
- CHECK Engine silent blocks * ............................................................................... 3-53
- CHECK Engine speeds *..................................................................................... 3-53
- CHECK Valve lash * ......................................................................................... 3-53
- CHECK Injectors * .......................................................................................... 3-53
- CHECK Hydrostatic transmission circuit pressure * ........................................................... 3-53
- CHECK Speeds of hydraulic movements * ................................................................... 3-53
- CHECK Condition of cylinders * ............................................................................. 3-53
- CHECK Condition of electric wiring * . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-53
* Consult your dealer.
COMPULSORY SERVICE AFTER FIRST 500 HOURS OR 6 MONTHS
FIRST 500 HOURS BEFORE THE FIRST 6 MONTHS
- If the platform has reached the first 500 hours of service before the first 6 months have expired, perform both the
compulsory service and periodic 500-hour maintenance (

Âo
500H - PERIODIC MAINTENANCE - EVERY 500 HOURS
OF SERVICE OR 1 YEAR).
FIRST 6 MONTHS BEFORE THE FIRST 500 HOURS
- If the platform has not completed 500 hours of service in the first 6 months, carry out only the compulsory service.
Â
MANDATORY SERVICE
547399 (01/03/2019) 200 ATJ
