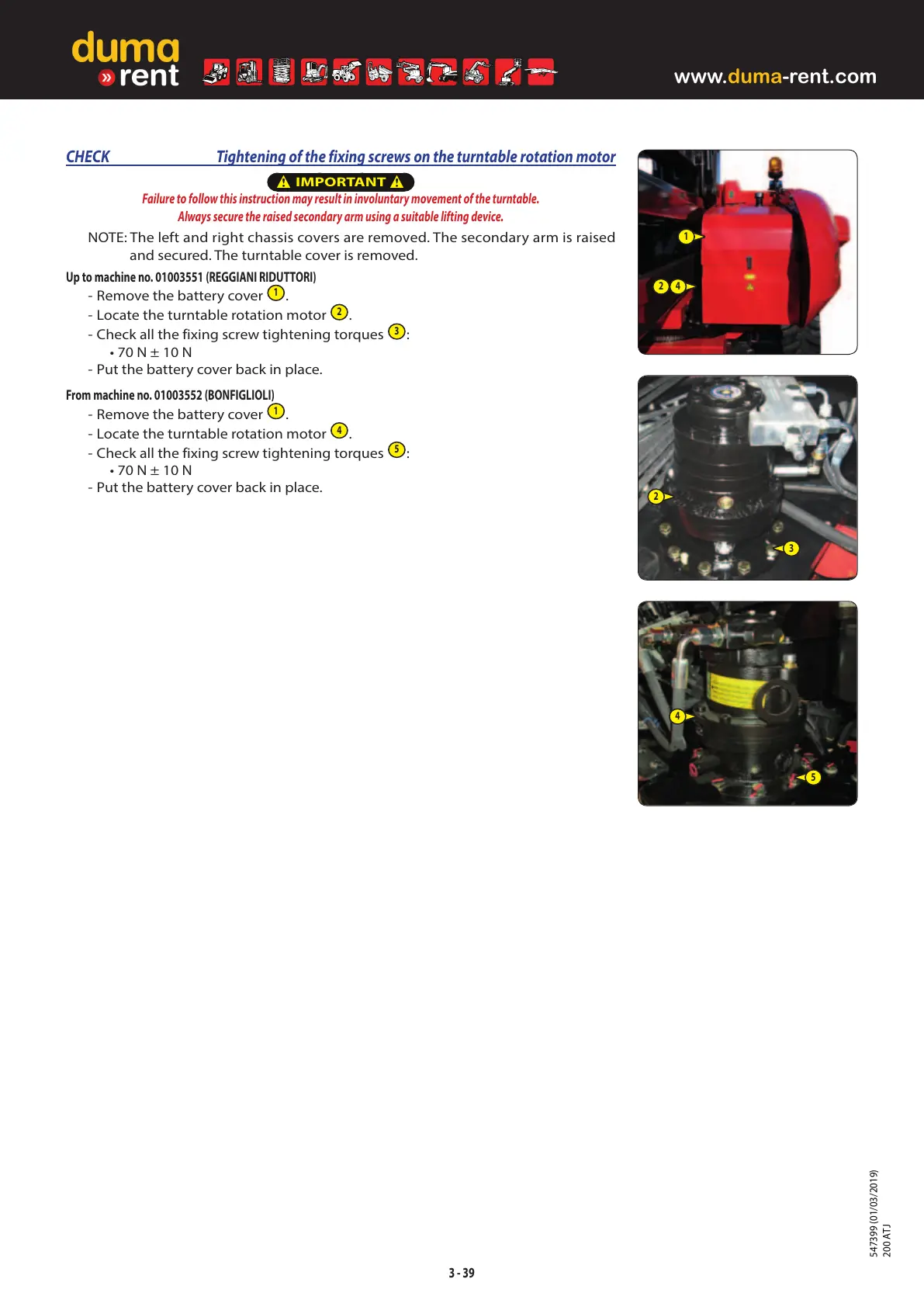

CHECK Tightening of the fixing screws on the turntable rotation motor

IMPORTANT

Failure to follow this instruction may result in involuntary movement of the turntable.
Always secure the raised secondary arm using a suitable lifting device.
NOTE: The left and right chassis covers are removed. The secondary arm is raised
and secured. The turntable cover is removed.
Up to machine no. 01003551 (REGGIANI RIDUTTORI)
- Remove the battery cover
1
.
- Locate the turntable rotation motor
2
.
- Check all the fixing screw tightening torques
3
:
• 70N ± 10N
- Put the battery cover back in place.
From machine no. 01003552 (BONFIGLIOLI)
- Remove the battery cover
1
.
- Locate the turntable rotation motor
4
.
- Check all the fixing screw tightening torques
5
:
• 70N ± 10N
- Put the battery cover back in place.
547399 (01/03/2019) 200 ATJ
