3 - 56
Â

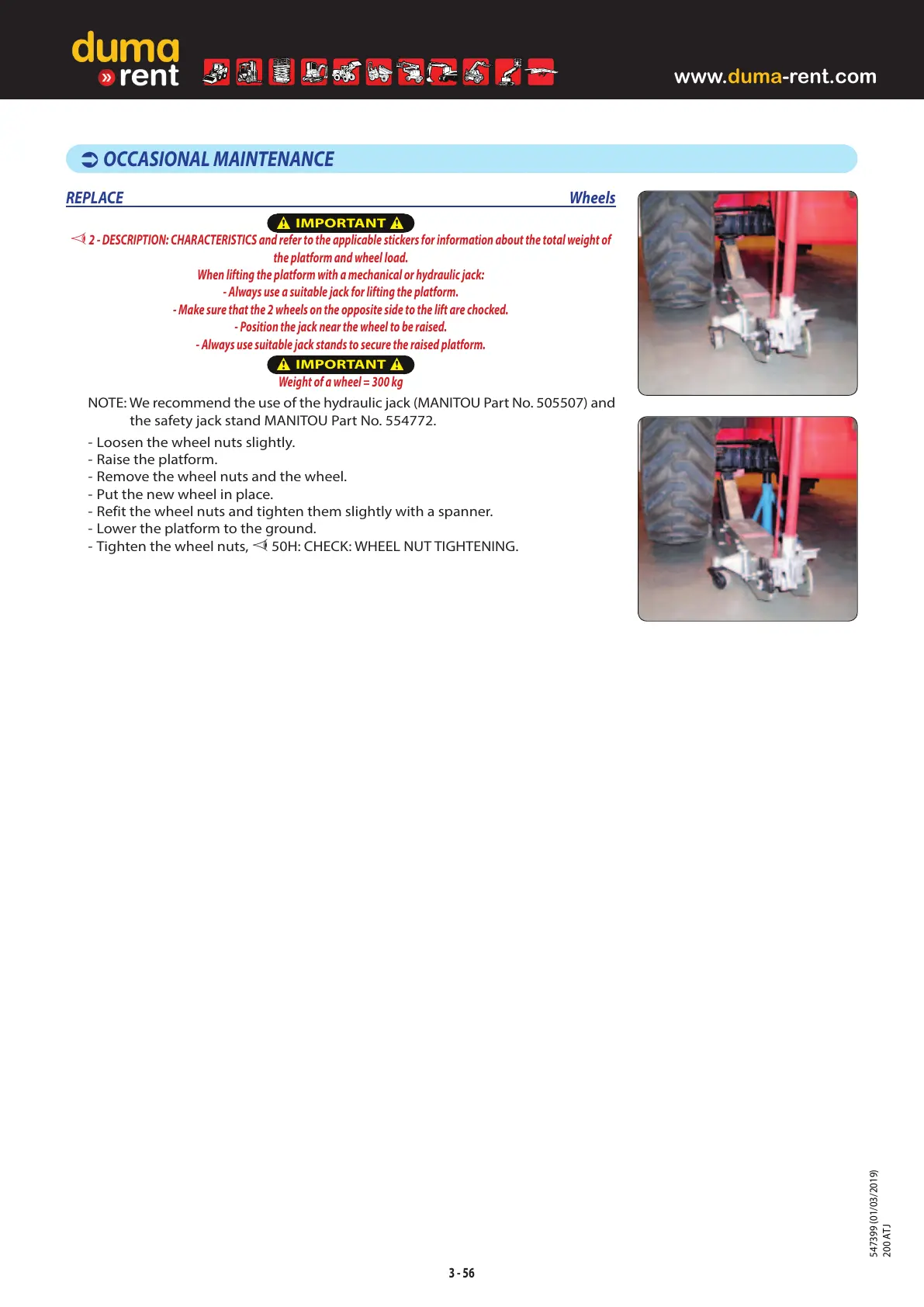

OCCASIONAL MAINTENANCE
REPLACE Wheels
IMPORTANT
2-DESCRIPTION: CHARACTERISTICS and refer to the applicable stickers for information about the total weight of
the platform and wheel load.
When lifting the platform with a mechanical or hydraulic jack:
- Always use a suitable jack for lifting the platform.
- Make sure that the 2 wheels on the opposite side to the lift are chocked.
- Position the jack near the wheel to be raised.
- Always use suitable jack stands to secure the raised platform.
IMPORTANT
Weight of a wheel = 300kg
NOTE: We recommend the use of the hydraulic jack (MANITOU Part No. 505507) and
the safety jack stand MANITOU Part No. 554772.
- Loosen the wheel nuts slightly.
- Raise the platform.
- Remove the wheel nuts and the wheel.
- Put the new wheel in place.
- Refit the wheel nuts and tighten them slightly with a spanner.
- Lower the platform to the ground.
- Tighten the wheel nuts,
50H: CHECK: WHEEL NUT TIGHTENING.
