Manitou 200 ATJ User Manual

3 - 25
4
5
1
2
3

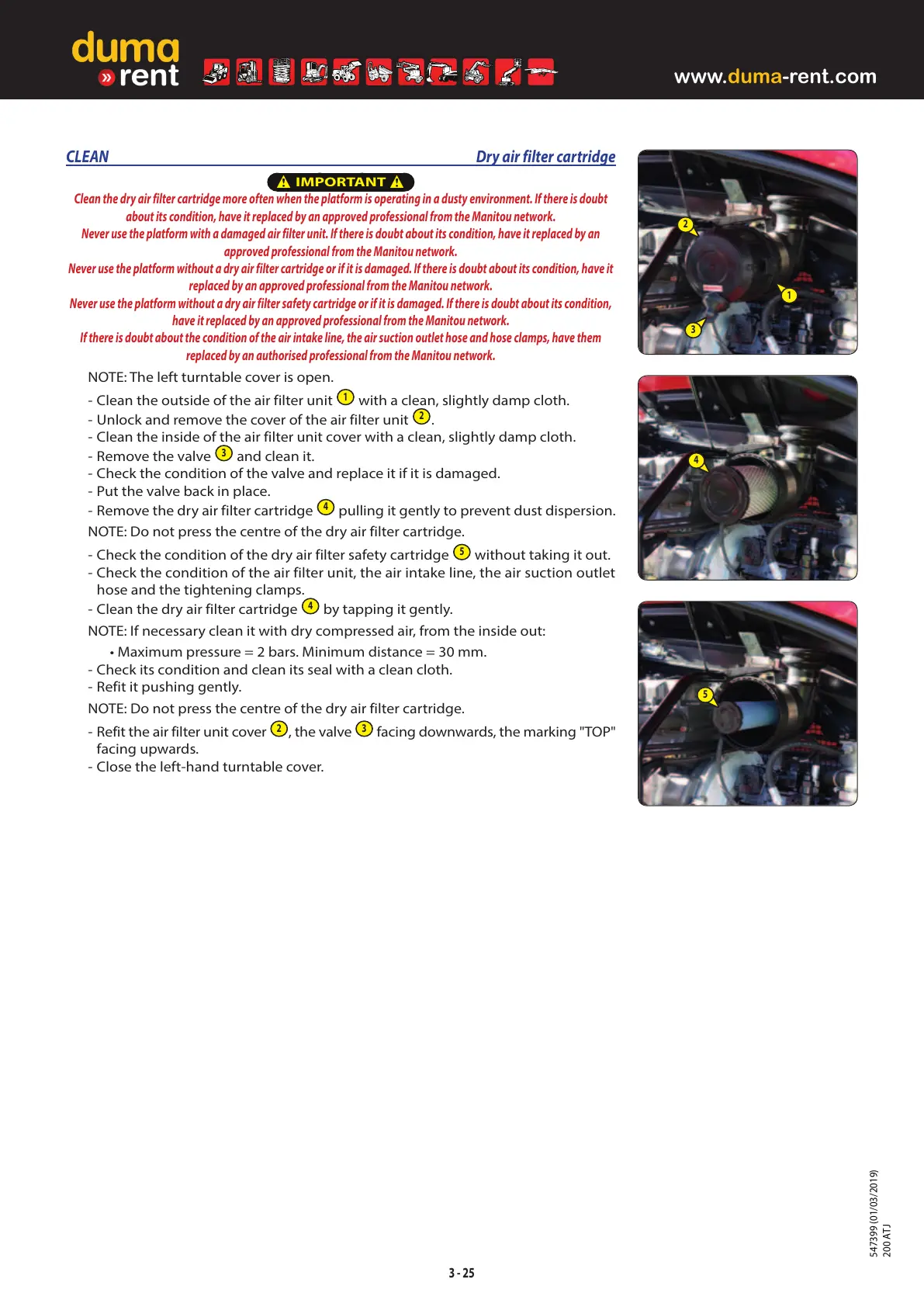

CLEAN Dry air filter cartridge

IMPORTANT

Clean the dry air filter cartridge more often when the platform is operating in a dusty environment. If there is doubt
about its condition, have it replaced by an approved professional from the Manitou network.
Never use the platform with a damaged air filter unit. If there is doubt about its condition, have it replaced by an
approved professional from the Manitou network.
Never use the platform without a dry air filter cartridge or if it is damaged. If there is doubt about its condition, have it
replaced by an approved professional from the Manitou network.
Never use the platform without a dry air filter safety cartridge or if it is damaged. If there is doubt about its condition,
have it replaced by an approved professional from the Manitou network.
If there is doubt about the condition of the air intake line, the air suction outlet hose and hose clamps, have them
replaced by an authorised professional from the Manitou network.
NOTE: The left turntable cover is open.
- Clean the outside of the air filter unit
1
with a clean, slightly damp cloth.
- Unlock and remove the cover of the air filter unit
2
.
- Clean the inside of the air filter unit cover with a clean, slightly damp cloth.
- Remove the valve
3
and clean it.
- Check the condition of the valve and replace it if it is damaged.
- Put the valve back in place.
- Remove the dry air filter cartridge
4
pulling it gently to prevent dust dispersion.
NOTE: Do not press the centre of the dry air filter cartridge.
- Check the condition of the dry air filter safety cartridge
5
without taking it out.
- Check the condition of the air filter unit, the air intake line, the air suction outlet
hose and the tightening clamps.
- Clean the dry air filter cartridge
4
by tapping it gently.
NOTE: If necessary clean it with dry compressed air, from the inside out:
• Maximum pressure = 2 bars. Minimum distance = 30 mm.
- Check its condition and clean its seal with a clean cloth.
- Refit it pushing gently.
NOTE: Do not press the centre of the dry air filter cartridge.
- Refit the air filter unit cover
2
, the valve
3
facing downwards, the marking "TOP"
facing upwards.
- Close the left-hand turntable cover.
547399 (01/03/2019) 200 ATJ
