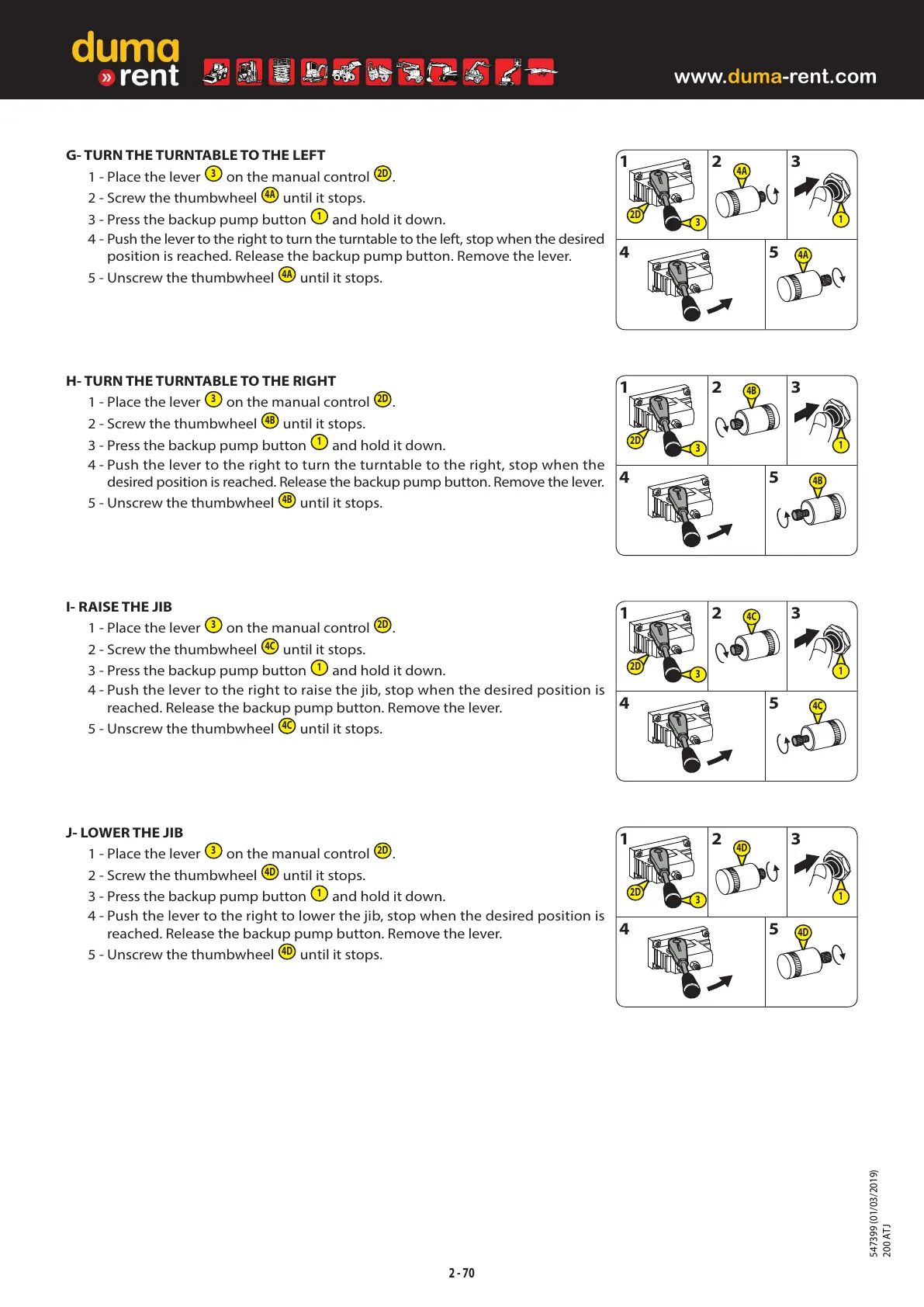

I- RAISE THE JIB
1 - Place the lever
3
on the manual control
2D
.
2 - Screw the thumbwheel
4C
until it stops.
3 - Press the backup pump button
1
and hold it down.
4 - Push the lever to the right to raise the jib, stop when the desired position is
reached. Release the backup pump button. Remove the lever.
5 - Unscrew the thumbwheel
4C
until it stops.
J- LOWER THE JIB
1 - Place the lever
3
on the manual control
2D
.
2 - Screw the thumbwheel
4D
until it stops.
3 - Press the backup pump button
1
and hold it down.
4 - Push the lever to the right to lower the jib, stop when the desired position is
reached. Release the backup pump button. Remove the lever.
5 - Unscrew the thumbwheel
4D
until it stops.
G- TURN THE TURNTABLE TO THE LEFT
1 - Place the lever
3
on the manual control
2D
.
2 - Screw the thumbwheel
4A
until it stops.
3 - Press the backup pump button
1
and hold it down.
4 - Push the lever to the right to turn the turntable to the left, stop when the desired
position is reached. Release the backup pump button. Remove the lever.
5 - Unscrew the thumbwheel
4A
until it stops.
H- TURN THE TURNTABLE TO THE RIGHT
1 - Place the lever
3
on the manual control
2D
.
2 - Screw the thumbwheel
4B
until it stops.
3 - Press the backup pump button
1
and hold it down.
4 - Push the lever to the right to turn the turntable to the right, stop when the
desired position is reached. Release the backup pump button. Remove the lever.
5 - Unscrew the thumbwheel
4B
until it stops.
