3 - 35
A
A
2
1

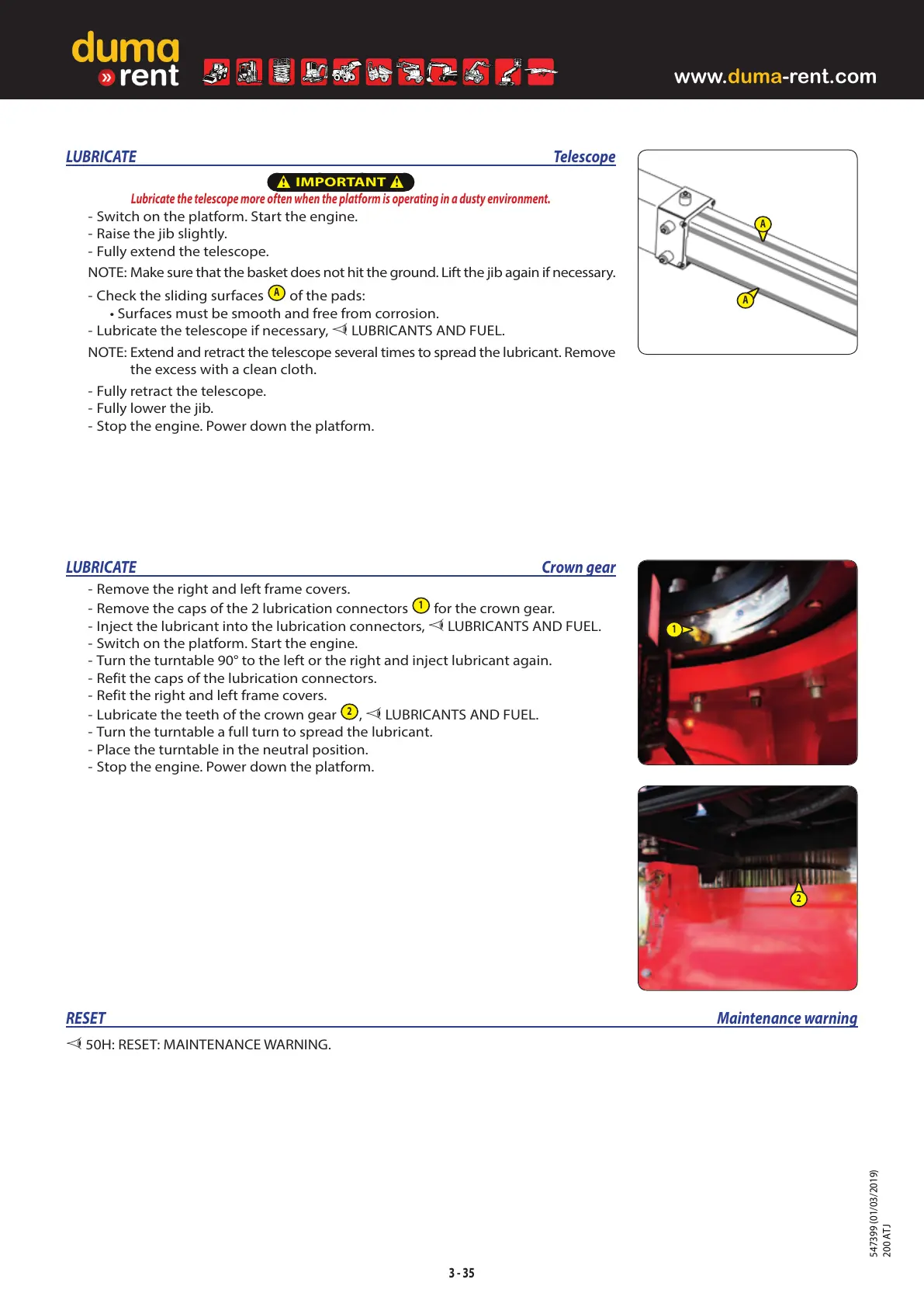

LUBRICATE Telescope
IMPORTANT
Lubricate the telescope more often when the platform is operating in a dusty environment.
- Switch on the platform. Start the engine.
- Raise the jib slightly.
- Fully extend the telescope.
NOTE: Make sure that the basket does not hit the ground. Lift the jib again if necessary.
- Check the sliding surfaces
A
of the pads:
• Surfaces must be smooth and free from corrosion.
- Lubricate the telescope if necessary, LUBRICANTS AND FUEL.
NOTE: Extend and retract the telescope several times to spread the lubricant. Remove
the excess with a clean cloth.
- Fully retract the telescope.
- Fully lower the jib.
- Stop the engine. Power down the platform.
LUBRICATE Crown gear
- Remove the right and left frame covers.
- Remove the caps of the 2 lubrication connectors
1
for the crown gear.
- Inject the lubricant into the lubrication connectors, LUBRICANTS AND FUEL.
- Switch on the platform. Start the engine.
- Turn the turntable 90° to the left or the right and inject lubricant again.
- Refit the caps of the lubrication connectors.
- Refit the right and left frame covers.
- Lubricate the teeth of the crown gear
2
, LUBRICANTS AND FUEL.
- Turn the turntable a full turn to spread the lubricant.
- Place the turntable in the neutral position.
- Stop the engine. Power down the platform.
RESET Maintenance warning
50H: RESET: MAINTENANCE WARNING.
