Manitou 200 ATJ User Manual

2 - 69
31 2
2A
1
3
321
2A
1
3
31 2
2B
1
3
321
2B
1
3
31 2
2C
1
3
321
2C
1
3

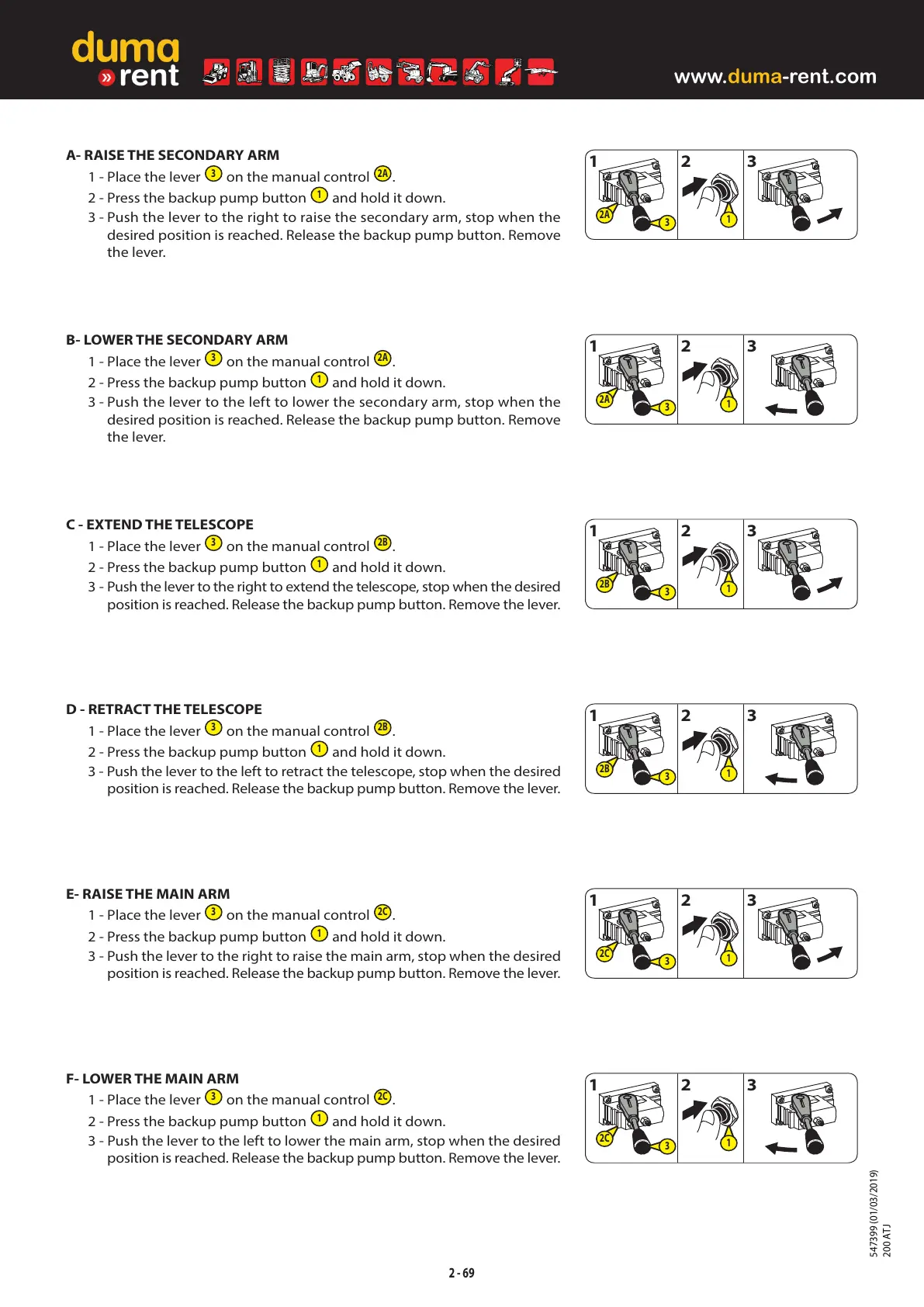

A- RAISE THE SECONDARY ARM
1 - Place the lever
3
on the manual control
2A
.
2 - Press the backup pump button
1
and hold it down.
3 - Push the lever to the right to raise the secondary arm, stop when the
desired position is reached. Release the backup pump button. Remove
the lever.
E- RAISE THE MAIN ARM
1 - Place the lever
3
on the manual control
2C
.
2 - Press the backup pump button
1
and hold it down.
3 - Push the lever to the right to raise the main arm, stop when the desired
position is reached. Release the backup pump button. Remove the lever.
B- LOWER THE SECONDARY ARM
1 - Place the lever
3
on the manual control
2A
.
2 - Press the backup pump button
1
and hold it down.
3 - Push the lever to the left to lower the secondary arm, stop when the
desired position is reached. Release the backup pump button. Remove
the lever.
C - EXTEND THE TELESCOPE
1 - Place the lever
3
on the manual control
2B
.
2 - Press the backup pump button
1
and hold it down.
3 - Push the lever to the right to extend the telescope, stop when the desired
position is reached. Release the backup pump button. Remove the lever.
D - RETRACT THE TELESCOPE
1 - Place the lever
3
on the manual control
2B
.
2 - Press the backup pump button
1
and hold it down.
3 - Push the lever to the left to retract the telescope, stop when the desired
position is reached. Release the backup pump button. Remove the lever.
F-LOWER THE MAIN ARM
1 - Place the lever
3
on the manual control
2C
.
2 - Press the backup pump button
1
and hold it down.
3 - Push the lever to the left to lower the main arm, stop when the desired
position is reached. Release the backup pump button. Remove the lever.
547399 (01/03/2019) 200 ATJ
