3 - 43
3
1
2

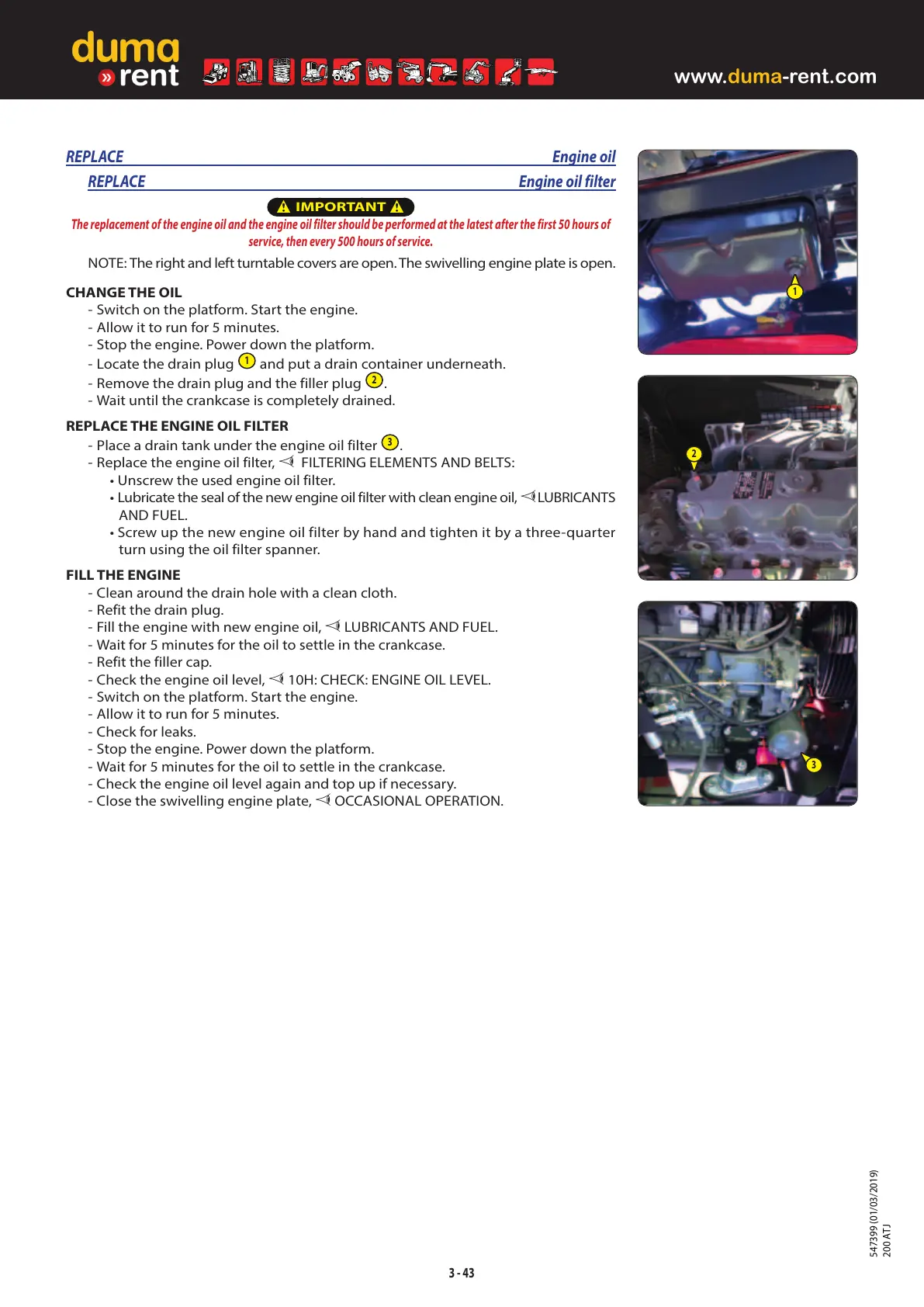

REPLACE Engine oil
REPLACE Engine oil filter
IMPORTANT
The replacement of the engine oil and the engine oil filter should be performed at the latest after the first 50 hours of
service, then every 500 hours of service.
NOTE: The right and left turntable covers are open. The swivelling engine plate is open.
CHANGE THE OIL
- Switch on the platform. Start the engine.
- Allow it to run for 5 minutes.
- Stop the engine. Power down the platform.
- Locate the drain plug
1
and put a drain container underneath.
- Remove the drain plug and the filler plug
2
.
- Wait until the crankcase is completely drained.
REPLACE THE ENGINE OIL FILTER
- Place a drain tank under the engine oil filter
3
.
- Replace the engine oil filter, FILTERING ELEMENTS AND BELTS:
• Unscrew the used engine oil filter.
• Lubricate the seal of the new engine oil filter with clean engine oil, LUBRICANTS
AND FUEL.
• Screw up the new engine oil filter by hand and tighten it by a three-quarter
turn using the oil filter spanner.
FILL THE ENGINE
- Clean around the drain hole with a clean cloth.
- Refit the drain plug.
- Fill the engine with new engine oil,
LUBRICANTS AND FUEL.
- Wait for 5 minutes for the oil to settle in the crankcase.
- Refit the filler cap.
- Check the engine oil level, 10H: CHECK: ENGINE OIL LEVEL.
- Switch on the platform. Start the engine.
- Allow it to run for 5 minutes.
- Check for leaks.
- Stop the engine. Power down the platform.
- Wait for 5 minutes for the oil to settle in the crankcase.
- Check the engine oil level again and top up if necessary.
- Close the swivelling engine plate, OCCASIONAL OPERATION.
