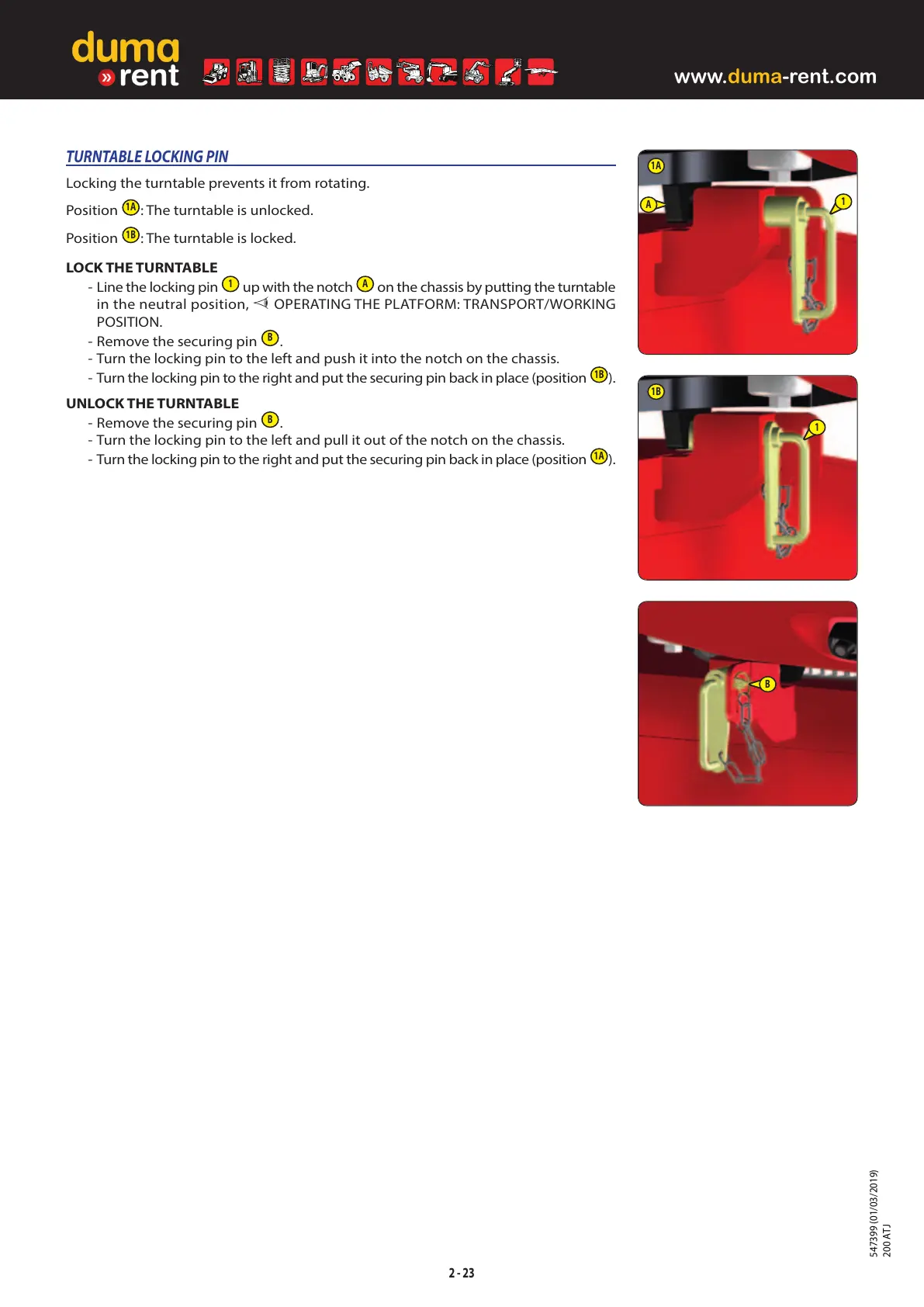

TURNTABLE LOCKING PIN
Locking the turntable prevents it from rotating.
Position
1A
: The turntable is unlocked.
Position
1B
: The turntable is locked.
LOCK THE TURNTABLE
- Line the locking pin
1
up with the notch
A
on the chassis by putting the turntable
in the neutral position, OPERATING THE PLATFORM: TRANSPORT/WORKING
POSITION.
- Remove the securing pin
B
.
- Turn the locking pin to the left and push it into the notch on the chassis.
- Turn the locking pin to the right and put the securing pin back in place (position
1B
).
UNLOCK THE TURNTABLE
- Remove the securing pin
B
.
- Turn the locking pin to the left and pull it out of the notch on the chassis.
- Turn the locking pin to the right and put the securing pin back in place (position
1A
).
