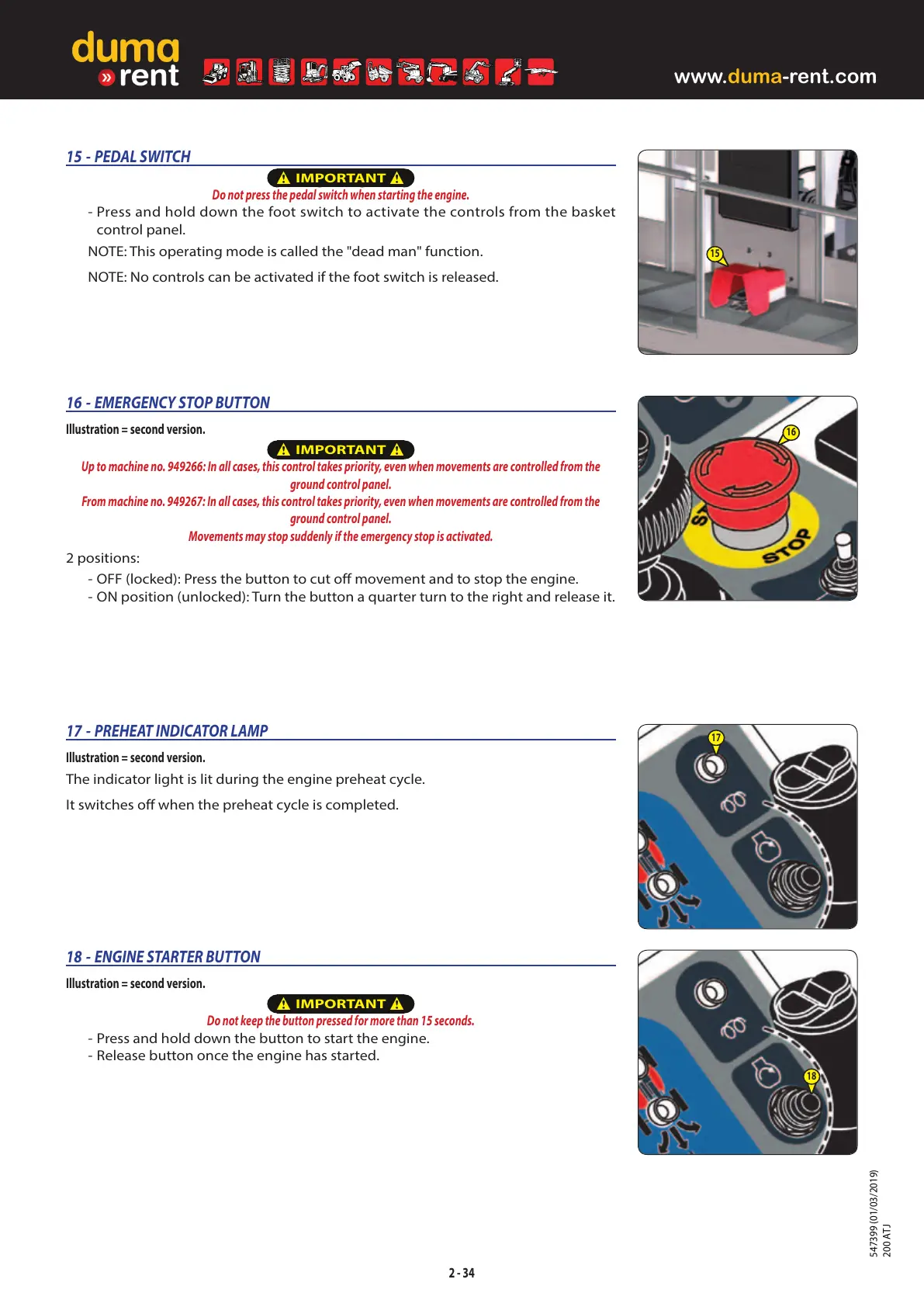

2 - 34
16
18
17
15
16 - EMERGENCY STOP BUTTON
Illustration = second version.
IMPORTANT
Up to machine no. 949266: In all cases, this control takes priority, even when movements are controlled from the
ground control panel.
From machine no. 949267: In all cases, this control takes priority, even when movements are controlled from the
ground control panel.
Movements may stop suddenly if the emergency stop is activated.
2positions:
- OFF (locked): Press the button to cut off movement and to stop the engine.
- ON position (unlocked): Turn the button a quarter turn to the right and release it.
18 - ENGINE STARTER BUTTON
Illustration = second version.
IMPORTANT
Do not keep the button pressed for more than 15 seconds.
- Press and hold down the button to start the engine.
- Release button once the engine has started.
17 - PREHEAT INDICATOR LAMP
Illustration = second version.
The indicator light is lit during the engine preheat cycle.
It switches off when the preheat cycle is completed.
15 - PEDAL SWITCH
IMPORTANT
Do not press the pedal switch when starting the engine.
- Press and hold down the foot switch to activate the controls from the basket
control panel.
NOTE: This operating mode is called the "dead man" function.
NOTE: No controls can be activated if the foot switch is released.
