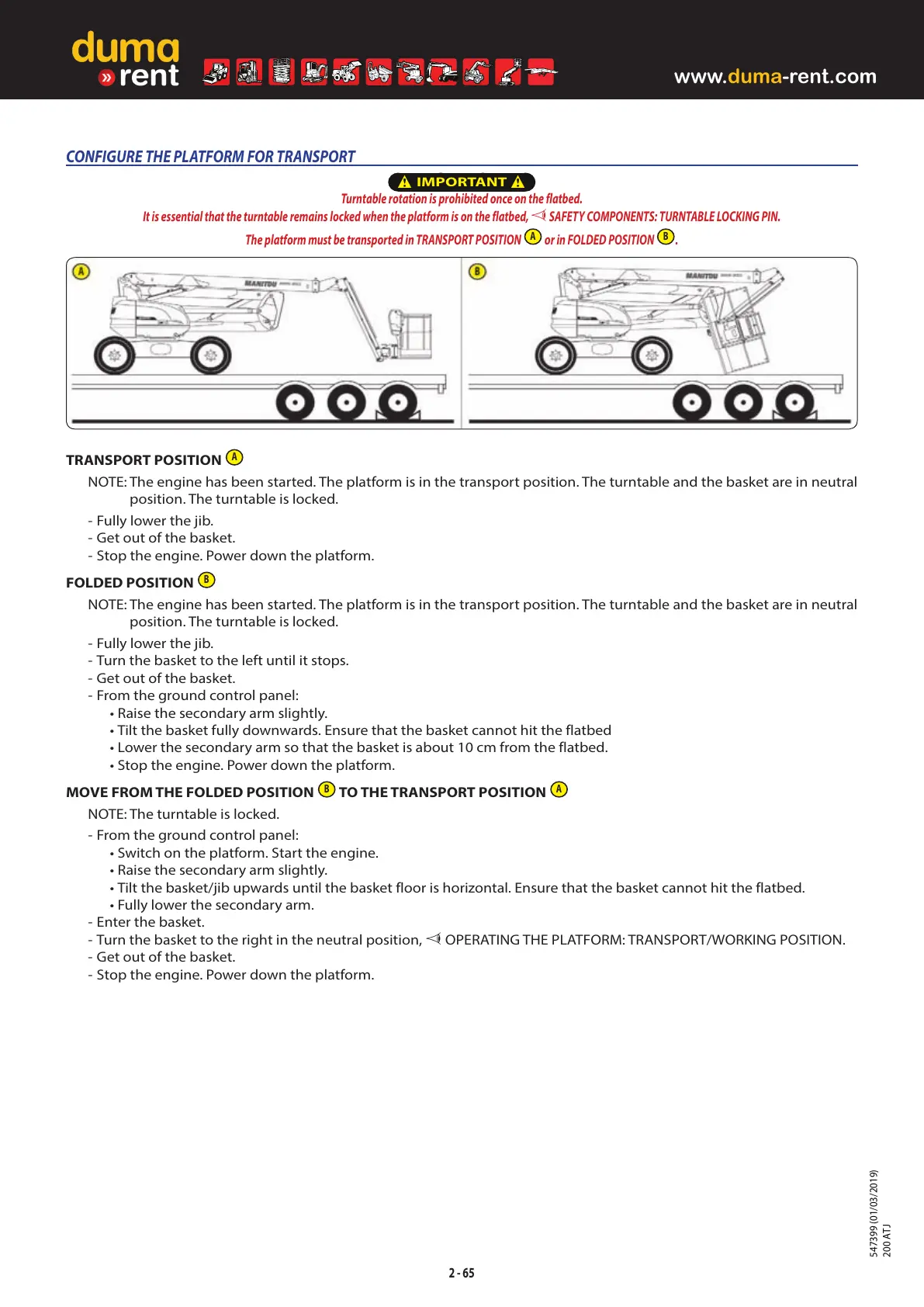

CONFIGURE THE PLATFORM FOR TRANSPORT

IMPORTANT

Turntable rotation is prohibited once on the flatbed.
It is essential that the turntable remains locked when the platform is on the flatbed,
 SAFETY COMPONENTS: TURNTABLE LOCKING PIN.
The platform must be transported in TRANSPORT POSITION
A
or in FOLDED POSITION
B
.
TRANSPORT POSITION
A
NOTE: The engine has been started. The platform is in the transport position. The turntable and the basket are in neutral
position. The turntable is locked.
- Fully lower the jib.
- Get out of the basket.
- Stop the engine. Power down the platform.
FOLDED POSITION
B
NOTE: The engine has been started. The platform is in the transport position. The turntable and the basket are in neutral
position. The turntable is locked.
- Fully lower the jib.
- Turn the basket to the left until it stops.
- Get out of the basket.
- From the ground control panel:
• Raise the secondary arm slightly.
• Tilt the basket fully downwards. Ensure that the basket cannot hit the flatbed
• Lower the secondary arm so that the basket is about 10cm from the flatbed.
• Stop the engine. Power down the platform.
MOVE FROM THE FOLDED POSITION
B
TO THE TRANSPORT POSITION
A
NOTE: The turntable is locked.
- From the ground control panel:
• Switch on the platform. Start the engine.
• Raise the secondary arm slightly.
• Tilt the basket/jib upwards until the basket floor is horizontal. Ensure that the basket cannot hit the flatbed.
• Fully lower the secondary arm.
- Enter the basket.
- Turn the basket to the right in the neutral position,
OPERATING THE PLATFORM: TRANSPORT/WORKING POSITION.
- Get out of the basket.
- Stop the engine. Power down the platform.
