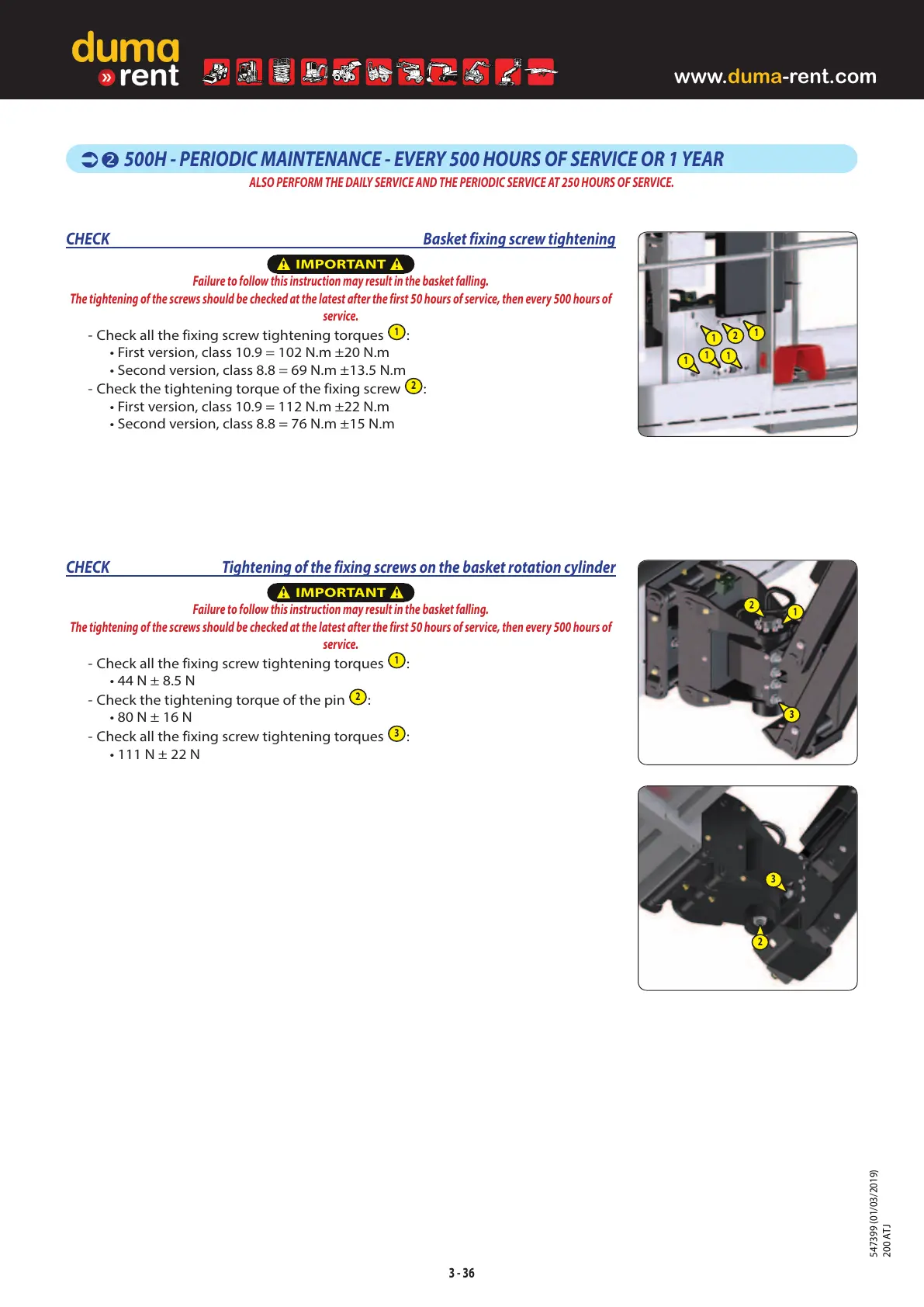

500H - PERIODIC MAINTENANCE - EVERY 500 HOURS OF SERVICE OR 1 YEAR
ALSO PERFORM THE DAILY SERVICE AND THE PERIODIC SERVICE AT 250 HOURS OF SERVICE.
CHECK Basket fixing screw tightening

IMPORTANT

Failure to follow this instruction may result in the basket falling.
The tightening of the screws should be checked at the latest after the first 50 hours of service, then every 500 hours of
service.
- Check all the fixing screw tightening torques
1
:
• First version, class 10.9= 102N.m±20N.m
• Second version, class 8.8= 69N.m±13.5N.m
- Check the tightening torque of the fixing screw
2
:
• First version, class 10.9= 112N.m±22N.m
• Second version, class 8.8= 76N.m±15N.m
CHECK Tightening of the fixing screws on the basket rotation cylinder

IMPORTANT

Failure to follow this instruction may result in the basket falling.
The tightening of the screws should be checked at the latest after the first 50 hours of service, then every 500 hours of
service.
- Check all the fixing screw tightening torques
1
:
• 44N ± 8.5N
- Check the tightening torque of the pin
2
:
• 80N ± 16N
- Check all the fixing screw tightening torques
3
:
• 111N ± 22N
547399 (01/03/2019) 200 ATJ
