Manitou 200 ATJ User Manual

3 - 32
6
A
B
2 5
1
2
3
4
6
5

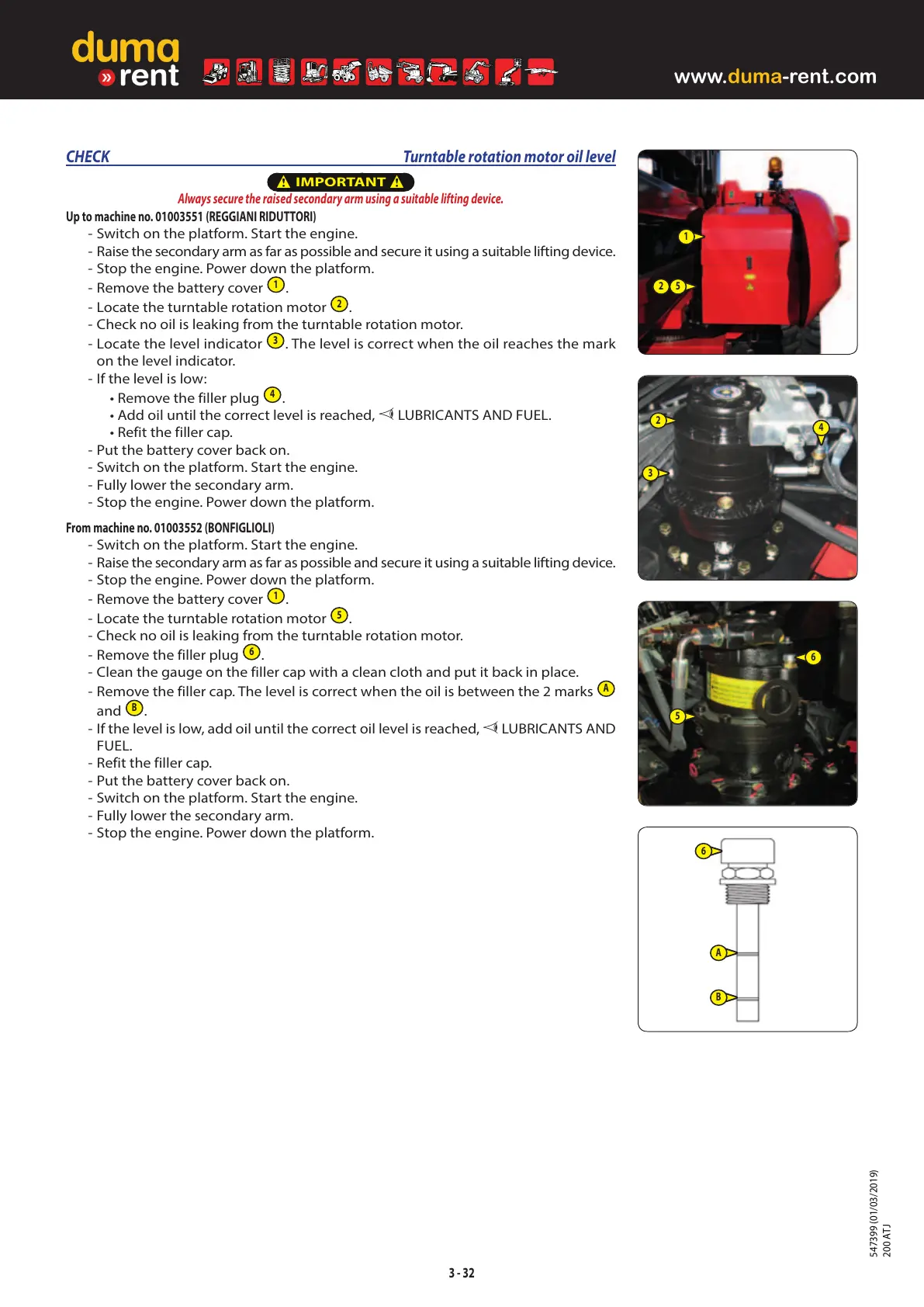

CHECK Turntable rotation motor oil level

IMPORTANT

Always secure the raised secondary arm using a suitable lifting device.
Up to machine no. 01003551 (REGGIANI RIDUTTORI)
- Switch on the platform. Start the engine.
- Raise the secondary arm as far as possible and secure it using a suitable lifting device.
- Stop the engine. Power down the platform.
- Remove the battery cover
1
.
- Locate the turntable rotation motor
2
.
- Check no oil is leaking from the turntable rotation motor.
- Locate the level indicator
3
. The level is correct when the oil reaches the mark
on the level indicator.
- If the level is low:
• Remove the filler plug
4
.
• Add oil until the correct level is reached, LUBRICANTS AND FUEL.
• Refit the filler cap.
- Put the battery cover back on.
- Switch on the platform. Start the engine.
- Fully lower the secondary arm.
- Stop the engine. Power down the platform.
From machine no. 01003552 (BONFIGLIOLI)
- Switch on the platform. Start the engine.
- Raise the secondary arm as far as possible and secure it using a suitable lifting device.
- Stop the engine. Power down the platform.
- Remove the battery cover
1
.
- Locate the turntable rotation motor
5
.
- Check no oil is leaking from the turntable rotation motor.
- Remove the filler plug
6
.
- Clean the gauge on the filler cap with a clean cloth and put it back in place.
- Remove the filler cap. The level is correct when the oil is between the 2 marks
A
and
B
.
- If the level is low, add oil until the correct oil level is reached, LUBRICANTS AND
FUEL.
- Refit the filler cap.
- Put the battery cover back on.
- Switch on the platform. Start the engine.
- Fully lower the secondary arm.
- Stop the engine. Power down the platform.
547399 (01/03/2019) 200 ATJ
www.duma-rent.com

Manitou 200 ATJ Specifications

General

Brand	Manitou
Model	200 ATJ
Category	Boom Lifts
Language	English
