2 - 46

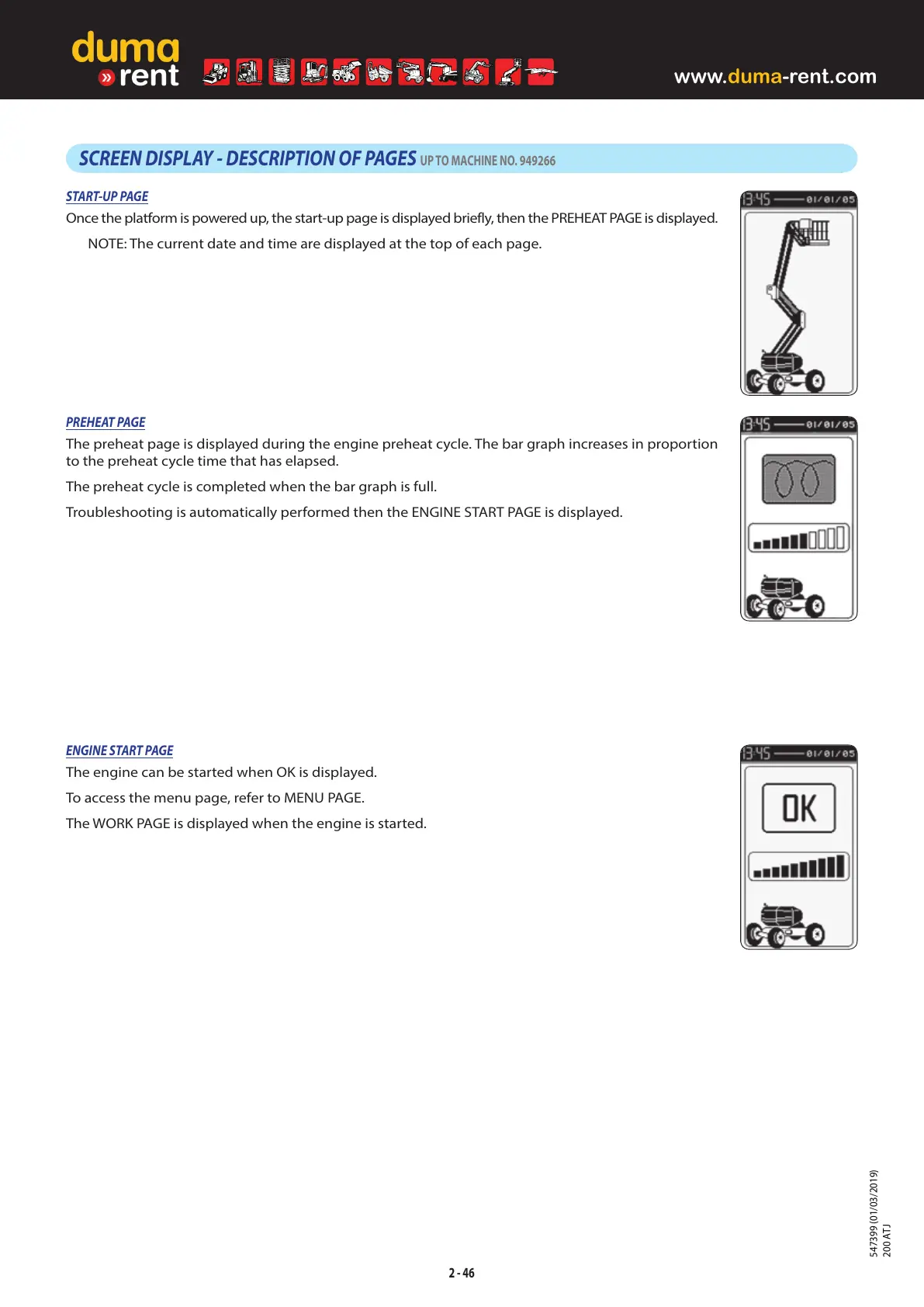

SCREEN DISPLAY - DESCRIPTION OF PAGES
UP TO MACHINE NO. 949266
START-UP PAGE
Once the platform is powered up, the start-up page is displayed briefly, then the PREHEAT PAGE is displayed.
NOTE: The current date and time are displayed at the top of each page.
PREHEAT PAGE
The preheat page is displayed during the engine preheat cycle. The bar graph increases in proportion
to the preheat cycle time that has elapsed.
The preheat cycle is completed when the bar graph is full.
Troubleshooting is automatically performed then the ENGINE START PAGE is displayed.
ENGINE START PAGE
The engine can be started when OK is displayed.
To access the menu page, refer to MENU PAGE.
The WORK PAGE is displayed when the engine is started.
