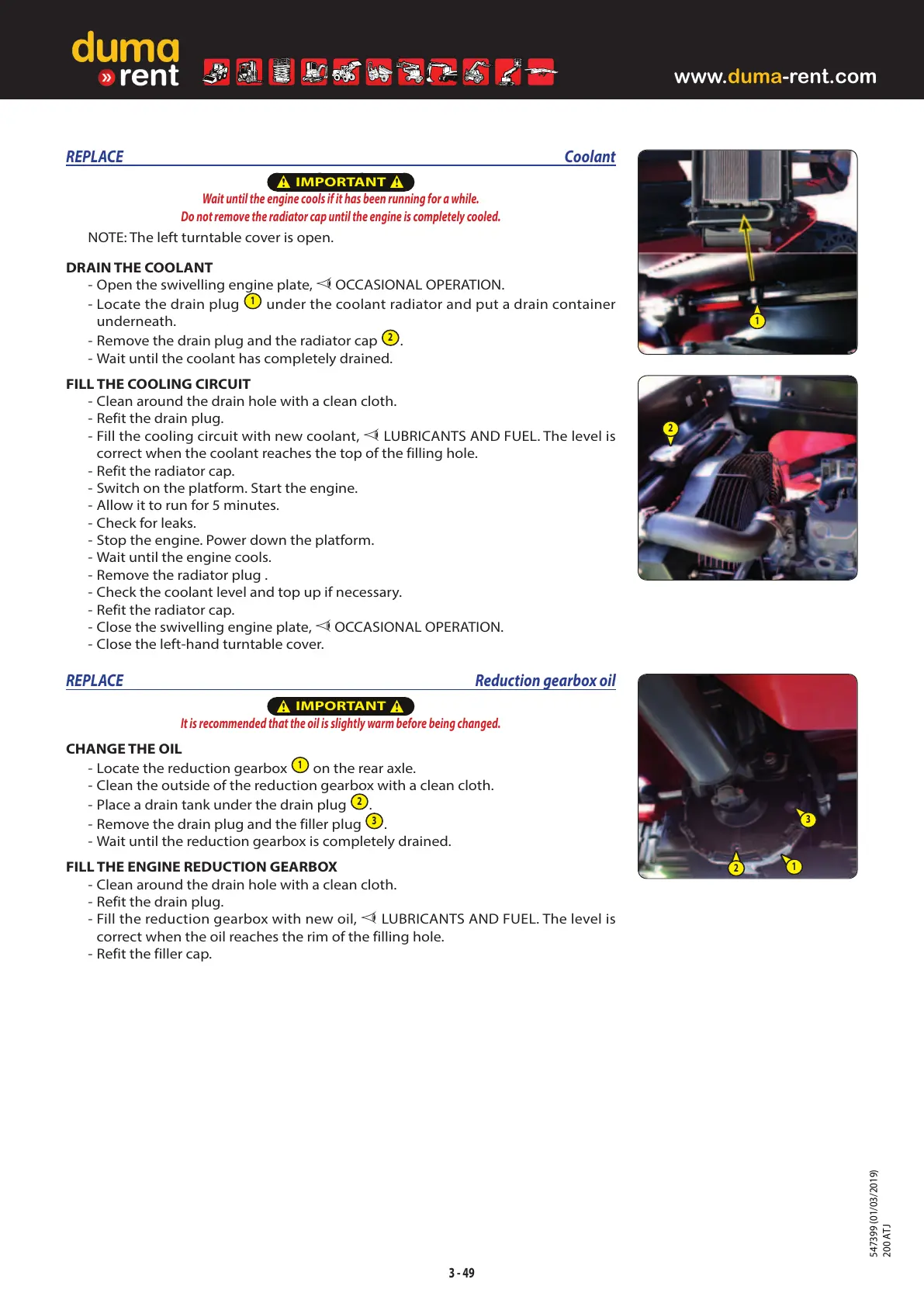

REPLACE Coolant
IMPORTANT
Wait until the engine cools if it has been running for a while.
Do not remove the radiator cap until the engine is completely cooled.
NOTE: The left turntable cover is open.
DRAIN THE COOLANT
- Open the swivelling engine plate,
OCCASIONAL OPERATION.
- Locate the drain plug
1
under the coolant radiator and put a drain container
underneath.
- Remove the drain plug and the radiator cap
2
.
- Wait until the coolant has completely drained.
FILL THE COOLING CIRCUIT
- Clean around the drain hole with a clean cloth.
- Refit the drain plug.
- Fill the cooling circuit with new coolant,
LUBRICANTS AND FUEL. The level is
correct when the coolant reaches the top of the filling hole.
- Refit the radiator cap.
- Switch on the platform. Start the engine.
- Allow it to run for 5 minutes.
- Check for leaks.
- Stop the engine. Power down the platform.
- Wait until the engine cools.
- Remove the radiator plug .
- Check the coolant level and top up if necessary.
- Refit the radiator cap.
- Close the swivelling engine plate, OCCASIONAL OPERATION.
- Close the left-hand turntable cover.
REPLACE Reduction gearbox oil
IMPORTANT
It is recommended that the oil is slightly warm before being changed.
CHANGE THE OIL
- Locate the reduction gearbox
1
on the rear axle.
- Clean the outside of the reduction gearbox with a clean cloth.
- Place a drain tank under the drain plug
2
.
- Remove the drain plug and the filler plug
3
.
- Wait until the reduction gearbox is completely drained.
FILL THE ENGINE REDUCTION GEARBOX
- Clean around the drain hole with a clean cloth.
- Refit the drain plug.
- Fill the reduction gearbox with new oil,
LUBRICANTS AND FUEL. The level is
correct when the oil reaches the rim of the filling hole.
- Refit the filler cap.
3
1
2
