2 - 39
28A
28B
#2
28A
#1
28B
29

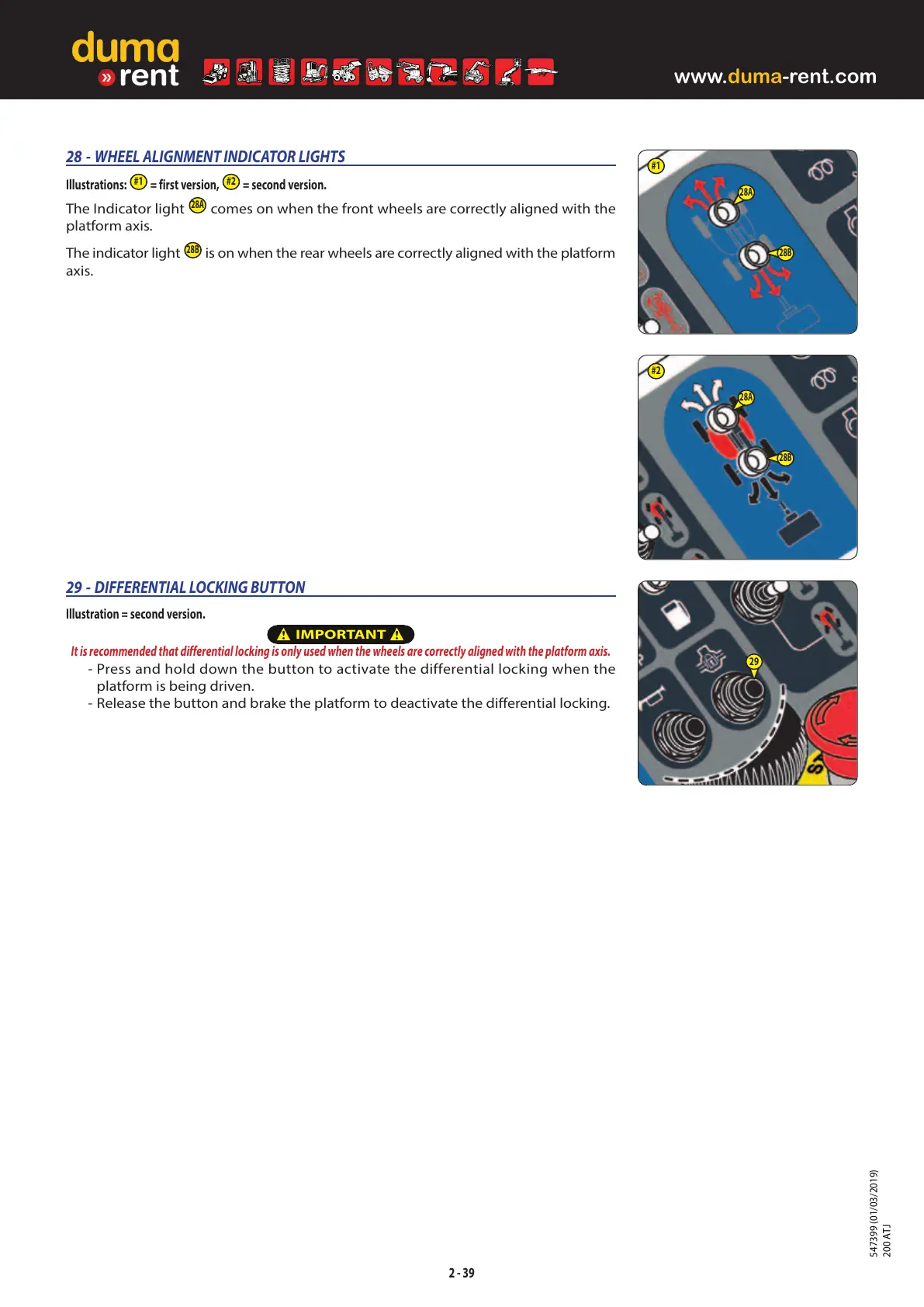

28 - WHEEL ALIGNMENT INDICATOR LIGHTS
Illustrations:
#1
= first version,
#2
= second version.
The Indicator light
28A
comes on when the front wheels are correctly aligned with the
platform axis.
The indicator light
28B
is on when the rear wheels are correctly aligned with the platform
axis.
29 - DIFFERENTIAL LOCKING BUTTON
Illustration = second version.
IMPORTANT
It is recommended that differential locking is only used when the wheels are correctly aligned with the platform axis.
- Press and hold down the button to activate the differential locking when the
platform is being driven.
- Release the button and brake the platform to deactivate the differential locking.
