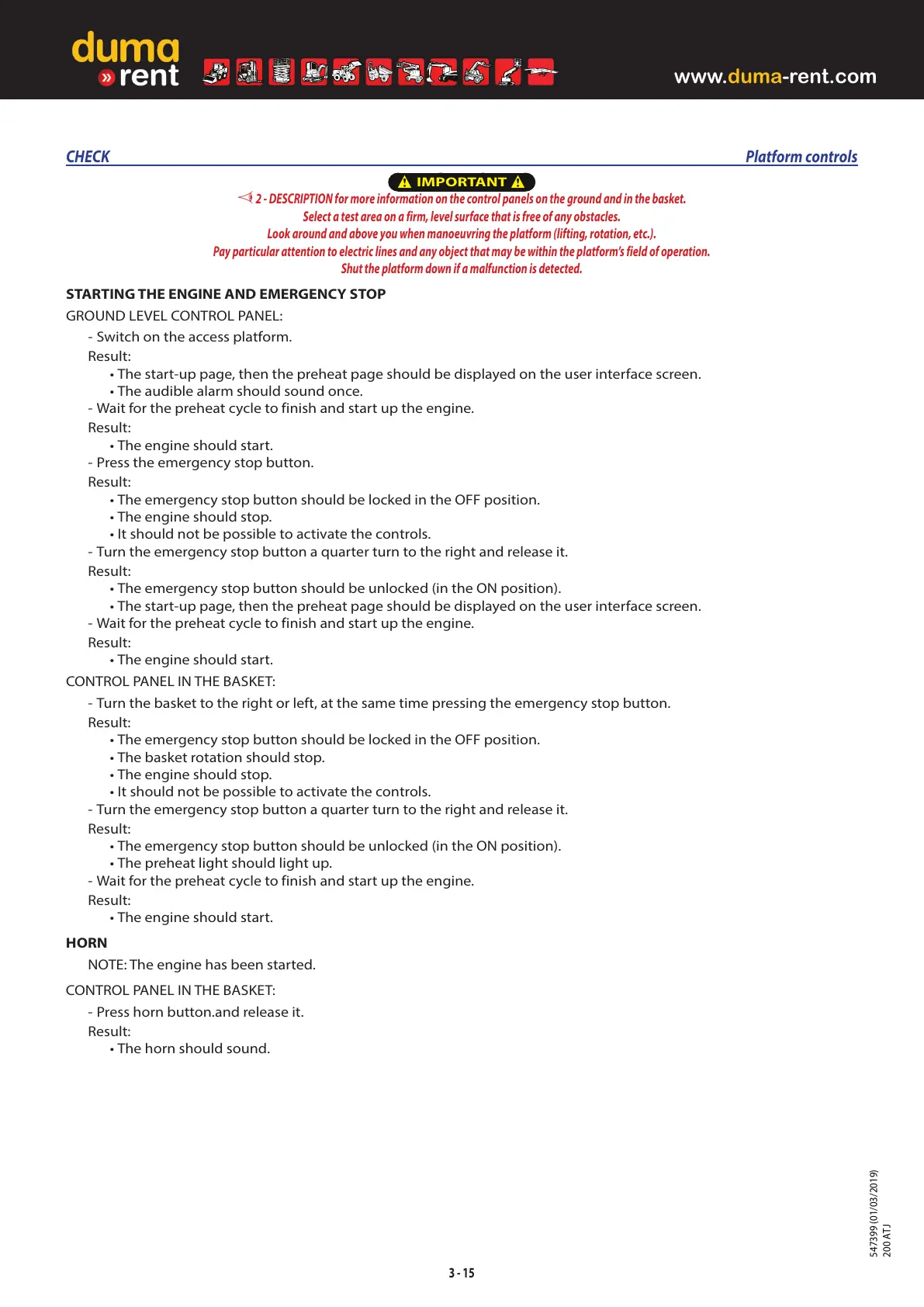

3 - 15
CHECK Platform controls

IMPORTANT

 2-DESCRIPTION for more information on the control panels on the ground and in the basket.
Select a test area on a firm, level surface that is free of any obstacles.
Look around and above you when manoeuvring the platform (lifting, rotation, etc.).
Pay particular attention to electric lines and any object that may be within the platform’s field of operation.
Shut the platform down if a malfunction is detected.
STARTING THE ENGINE AND EMERGENCY STOP
GROUND LEVEL CONTROL PANEL:
- Switch on the access platform.
Result:
• The start-up page, then the preheat page should be displayed on the user interface screen.
• The audible alarm should sound once.
- Wait for the preheat cycle to finish and start up the engine.
Result:
• The engine should start.
- Press the emergency stop button.
Result:
• The emergency stop button should be locked in the OFF position.
• The engine should stop.
• It should not be possible to activate the controls.
- Turn the emergency stop button a quarter turn to the right and release it.
Result:
• The emergency stop button should be unlocked (in the ON position).
• The start-up page, then the preheat page should be displayed on the user interface screen.
- Wait for the preheat cycle to finish and start up the engine.
Result:
• The engine should start.
CONTROL PANEL IN THE BASKET:
- Turn the basket to the right or left, at the same time pressing the emergency stop button.
Result:
• The emergency stop button should be locked in the OFF position.
• The basket rotation should stop.
• The engine should stop.
• It should not be possible to activate the controls.
- Turn the emergency stop button a quarter turn to the right and release it.
Result:
• The emergency stop button should be unlocked (in the ON position).
• The preheat light should light up.
- Wait for the preheat cycle to finish and start up the engine.
Result:
• The engine should start.
HORN
NOTE: The engine has been started.
CONTROL PANEL IN THE BASKET:
- Press horn button.and release it.
Result:
• The horn should sound.
547399 (01/03/2019) 200 ATJ
