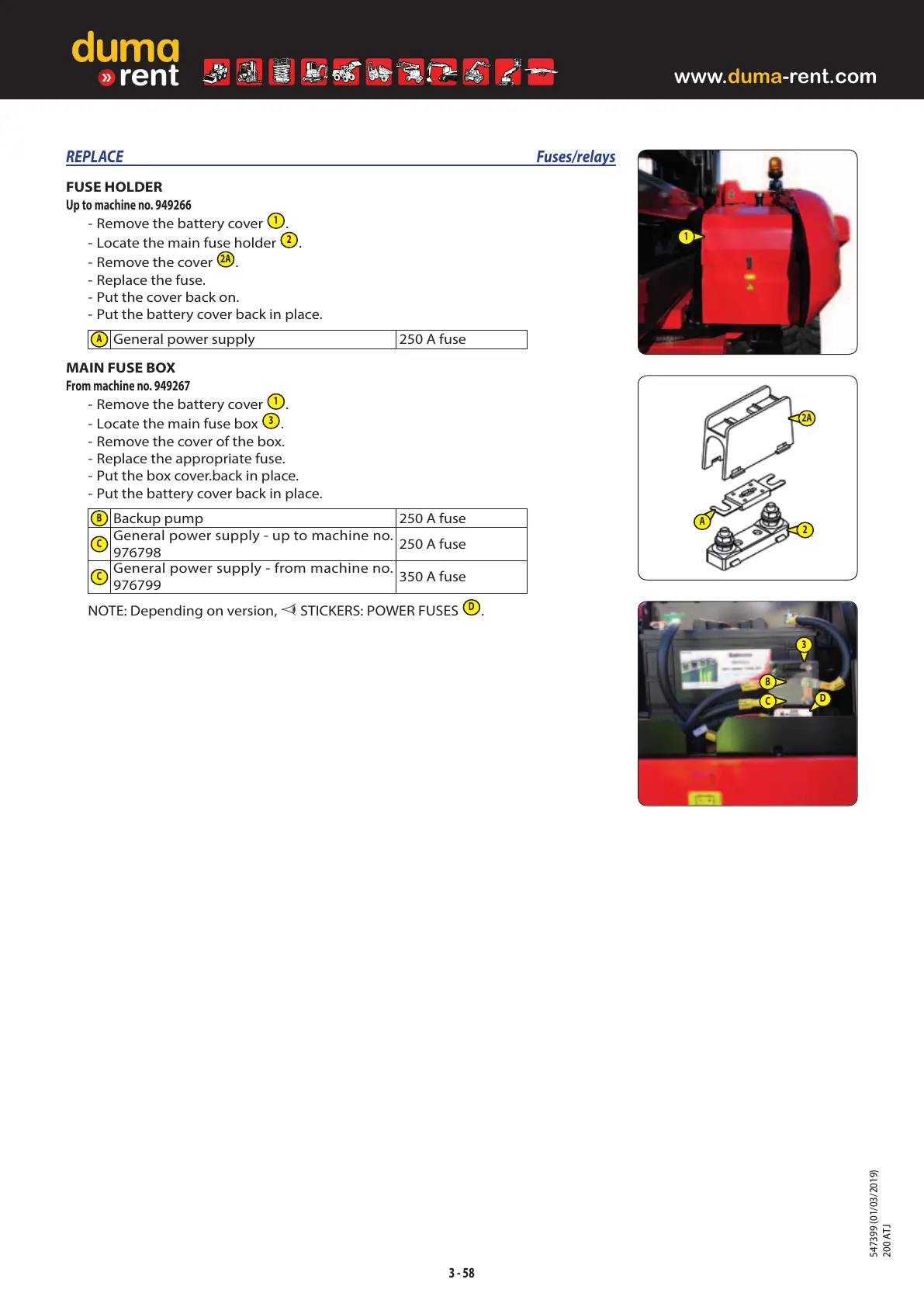

REPLACE Fuses/relays
FUSE HOLDER
Up to machine no. 949266
- Remove the battery cover
1
.
- Locate the main fuse holder
2
.
- Remove the cover
2A
.
- Replace the fuse.
- Put the cover back on.
- Put the battery cover back in place.
A
General power supply 250A fuse
MAIN FUSE BOX
From machine no. 949267
- Remove the battery cover
1
.
- Locate the main fuse box
3
.
- Remove the cover of the box.
- Replace the appropriate fuse.
- Put the box cover.back in place.
- Put the battery cover back in place.
B
Backup pump 250A fuse
C
General power supply - up to machine no.
976798
250A fuse
C
General power supply - from machine no.
976799
350A fuse
NOTE: Depending on version,
STICKERS: POWER FUSES
D
.
547399 (01/03/2019) 200 ATJ
