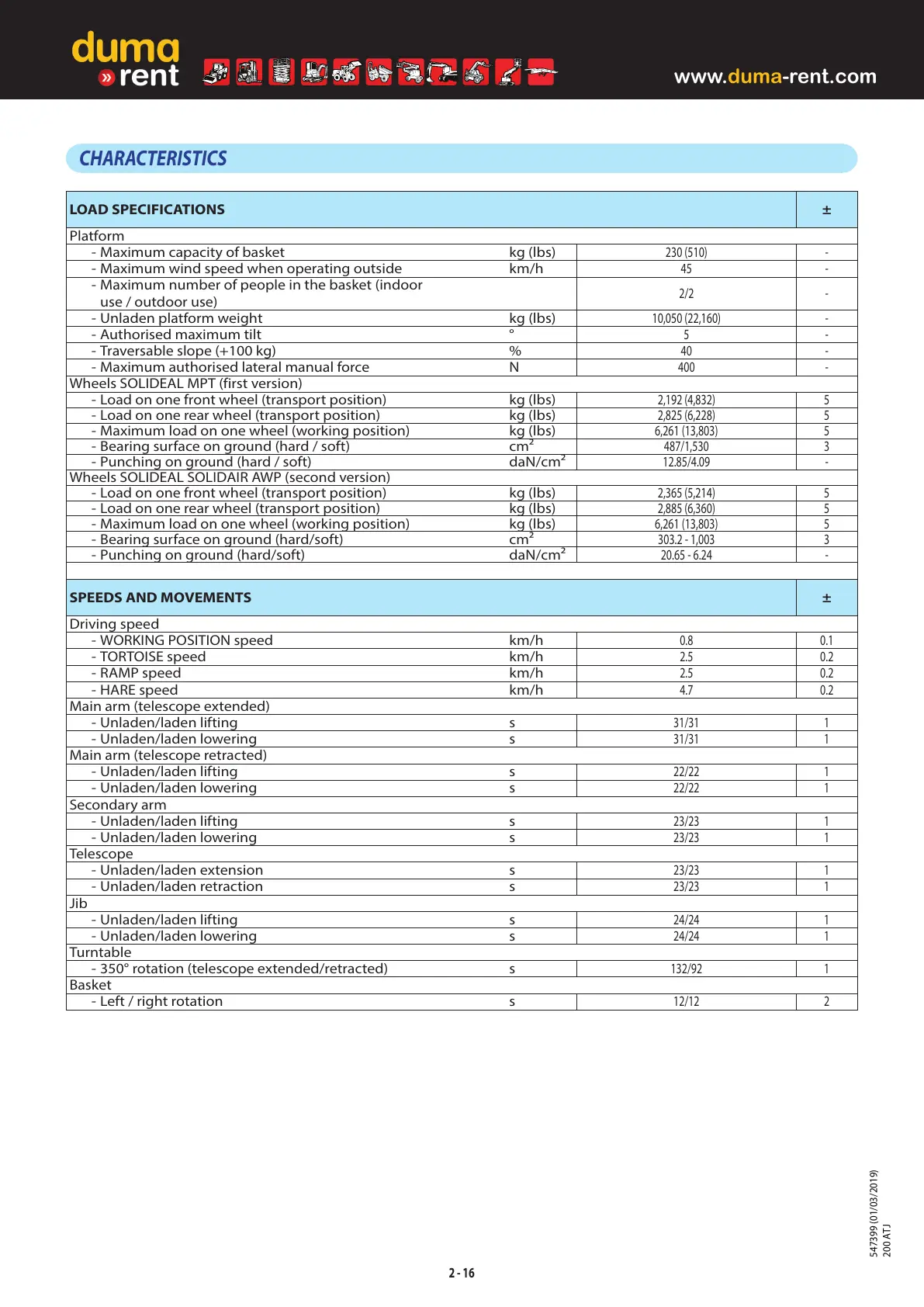

CHARACTERISTICS
LOAD SPECIFICATIONS ±
Platform
- Maximum capacity of basket kg (lbs)
230 (510) -
- Maximum wind speed when operating outside km/h 45 -
- Maximum number of people in the basket (indoor
use/outdoor use)
2/2 -
- Unladen platform weight kg (lbs) 10,050 (22,160) -
- Authorised maximum tilt ° 5-
- Traversable slope (+100 kg) % 40 -
- Maximum authorised lateral manual force N 400 -
Wheels SOLIDEALMPT (first version)
- Load on one front wheel (transport position) kg (lbs)
2,192 (4,832) 5
- Load on one rear wheel (transport position) kg (lbs) 2,825 (6,228) 5
- Maximum load on one wheel (working position) kg (lbs) 6,261 (13,803) 5
- Bearing surface on ground (hard/soft) cm² 487/1,530 3
- Punching on ground (hard/soft) daN/cm² 12.85/4.09 -
Wheels SOLIDEALSOLIDAIRAWP (second version)
- Load on one front wheel (transport position) kg (lbs)
2,365 (5,214) 5
- Load on one rear wheel (transport position) kg (lbs) 2,885 (6,360) 5
- Maximum load on one wheel (working position) kg (lbs) 6,261 (13,803) 5
- Bearing surface on ground (hard/soft) cm² 303.2 - 1,003 3
- Punching on ground (hard/soft) daN/cm² 20.65 - 6.24 -
SPEEDS AND MOVEMENTS ±
Driving speed
- WORKING POSITION speed km/h
0.8 0.1
- TORTOISE speed km/h 2.5 0.2
- RAMP speed km/h 2.5 0.2
- HARE speed km/h 4.7 0.2
Main arm (telescope extended)
- Unladen/laden lifting s
31/31 1
- Unladen/laden lowering s 31/31 1
Main arm (telescope retracted)
- Unladen/laden lifting s
22/22 1
- Unladen/laden lowering s 22/22 1
Secondary arm
- Unladen/laden lifting s
23/23 1
- Unladen/laden lowering s 23/23 1
Telescope
- Unladen/laden extension s
23/23 1
- Unladen/laden retraction s 23/23 1
Jib
- Unladen/laden lifting s
24/24 1
- Unladen/laden lowering s 24/24 1
Turntable
- 350° rotation (telescope extended/retracted) s
132/92 1
Basket
- Left/right rotation s
12/12 2
