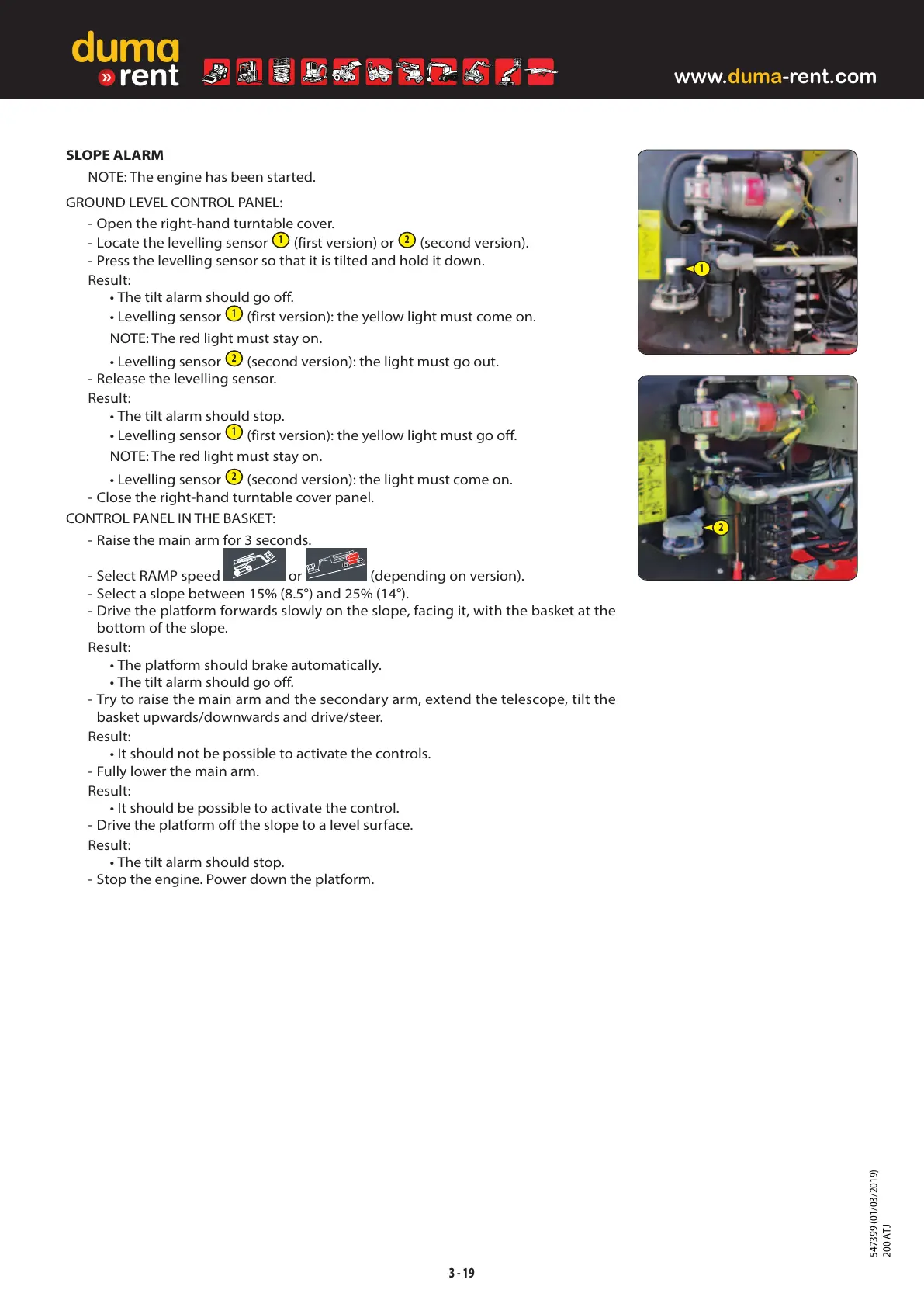

SLOPE ALARM
NOTE: The engine has been started.
GROUND LEVEL CONTROL PANEL:
- Open the right-hand turntable cover.
- Locate the levelling sensor
1
(first version) or
2
(second version).
- Press the levelling sensor so that it is tilted and hold it down.
Result:
• The tilt alarm should go off.
• Levelling sensor
1
(first version): the yellow light must come on.
NOTE: The red light must stay on.
• Levelling sensor
2
(second version): the light must go out.
- Release the levelling sensor.
Result:
• The tilt alarm should stop.
• Levelling sensor
1
(first version): the yellow light must go off.
NOTE: The red light must stay on.
• Levelling sensor
2
(second version): the light must come on.
- Close the right-hand turntable cover panel.
CONTROL PANEL IN THE BASKET:
- Raise the main arm for 3 seconds.
- Select RAMP speed
or (depending on version).
- Select a slope between 15% (8.5°) and 25% (14°).
- Drive the platform forwards slowly on the slope, facing it, with the basket at the
bottom of the slope.
Result:
• The platform should brake automatically.
• The tilt alarm should go off.
- Try to raise the main arm and the secondary arm, extend the telescope, tilt the
basket upwards/downwards and drive/steer.
Result:
• It should not be possible to activate the controls.
- Fully lower the main arm.
Result:
• It should be possible to activate the control.
- Drive the platform off the slope to a level surface.
Result:
• The tilt alarm should stop.
- Stop the engine. Power down the platform.
