3 - 59
5
4
6
F1
KAPC
KL
KA1
KPS
KA2
K5A
F3
F5
F7
F9
F11
F13
F15
KA3
K5B
F2
F4
F6
F8
F10
F12
F14
KA
K2
K1
K3
K4
F16

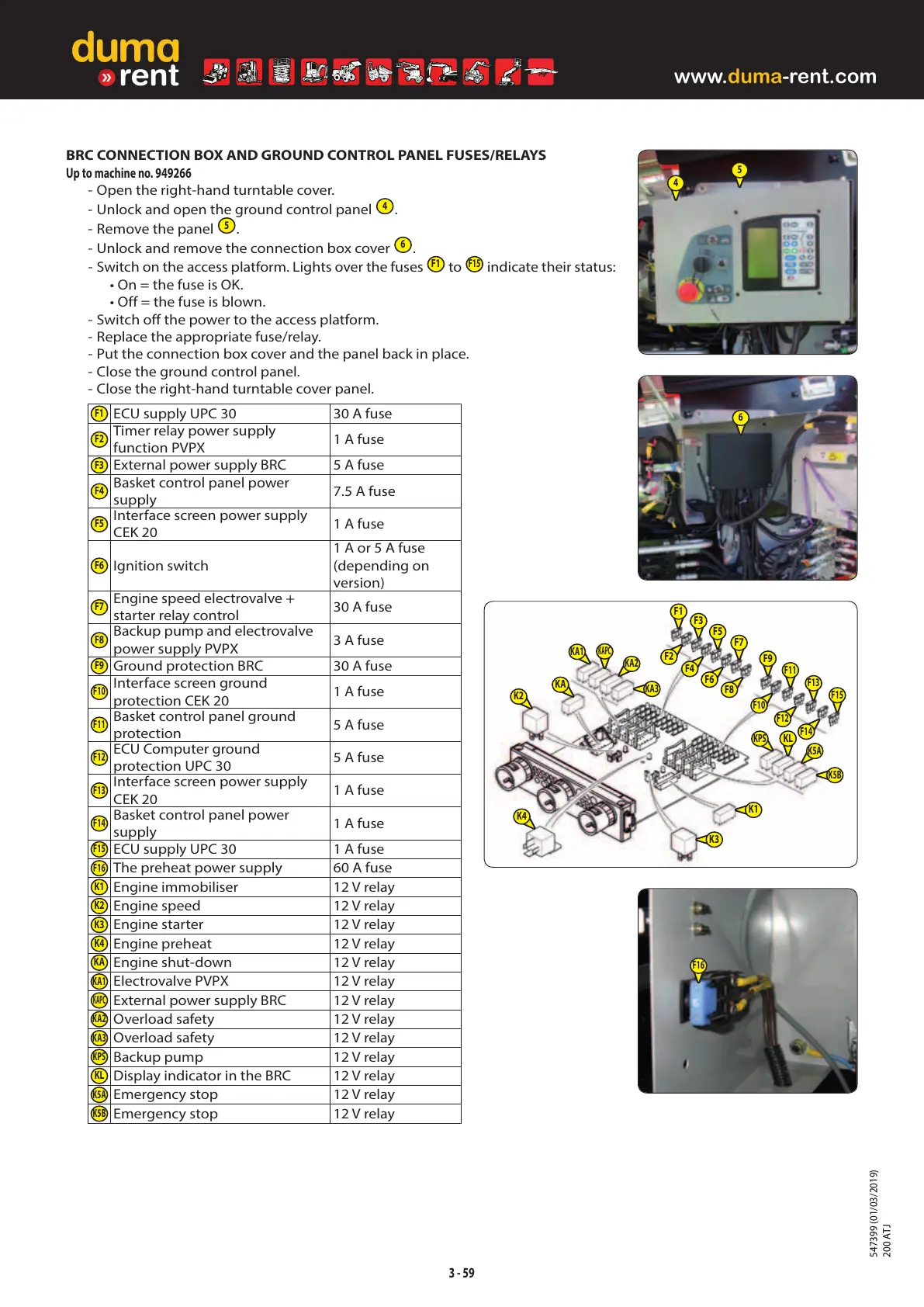

BRC CONNECTION BOX AND GROUND CONTROL PANEL FUSES/RELAYS
Up to machine no. 949266
- Open the right-hand turntable cover.
- Unlock and open the ground control panel
4
.
- Remove the panel
5
.
- Unlock and remove the connection box cover
6
.
- Switch on the access platform. Lights over the fuses
F1
to
F15
indicate their status:
• On = the fuse is OK.
• Off = the fuse is blown.
- Switch off the power to the access platform.
- Replace the appropriate fuse/relay.
- Put the connection box cover and the panel back in place.
- Close the ground control panel.
- Close the right-hand turntable cover panel.
F1
ECU supply UPC30 30A fuse
F2
Timer relay power supply
function PVPX
1A fuse
F3
External power supply BRC 5A fuse
F4
Basket control panel power
supply
7.5A fuse
F5
Interface screen power supply
CEK20
1A fuse
F6
Ignition switch
1A or 5A fuse
(depending on
version)
F7
Engine speed electrovalve +
starter relay control
30A fuse
F8
Backup pump and electrovalve
power supply PVPX
3A fuse
F9
Ground protection BRC 30A fuse
F10
Interface screen ground
protection CEK20
1A fuse
F11
Basket control panel ground
protection
5A fuse
F12
ECU Computer ground
protection UPC30
5A fuse
F13
Interface screen power supply
CEK20
1A fuse
F14
Basket control panel power
supply
1A fuse
F15
ECU supply UPC30 1A fuse
F16
The preheat power supply 60A fuse
K1
Engine immobiliser 12V relay
K2
Engine speed 12V relay
K3
Engine starter 12V relay
K4
Engine preheat 12V relay
KA
Engine shut-down 12V relay
KA1
Electrovalve PVPX 12V relay
KAPC
External power supply BRC 12V relay
KA2
Overload safety 12V relay
KA3
Overload safety 12V relay
KPS
Backup pump 12V relay
KL
Display indicator in the BRC 12V relay
K5A
Emergency stop 12V relay
K5B
Emergency stop 12V relay
