Manitou 200 ATJ User Manual

3 - 60
5
4
6
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F14
F13
K1
K7
K3
K4
K2
K6
K5

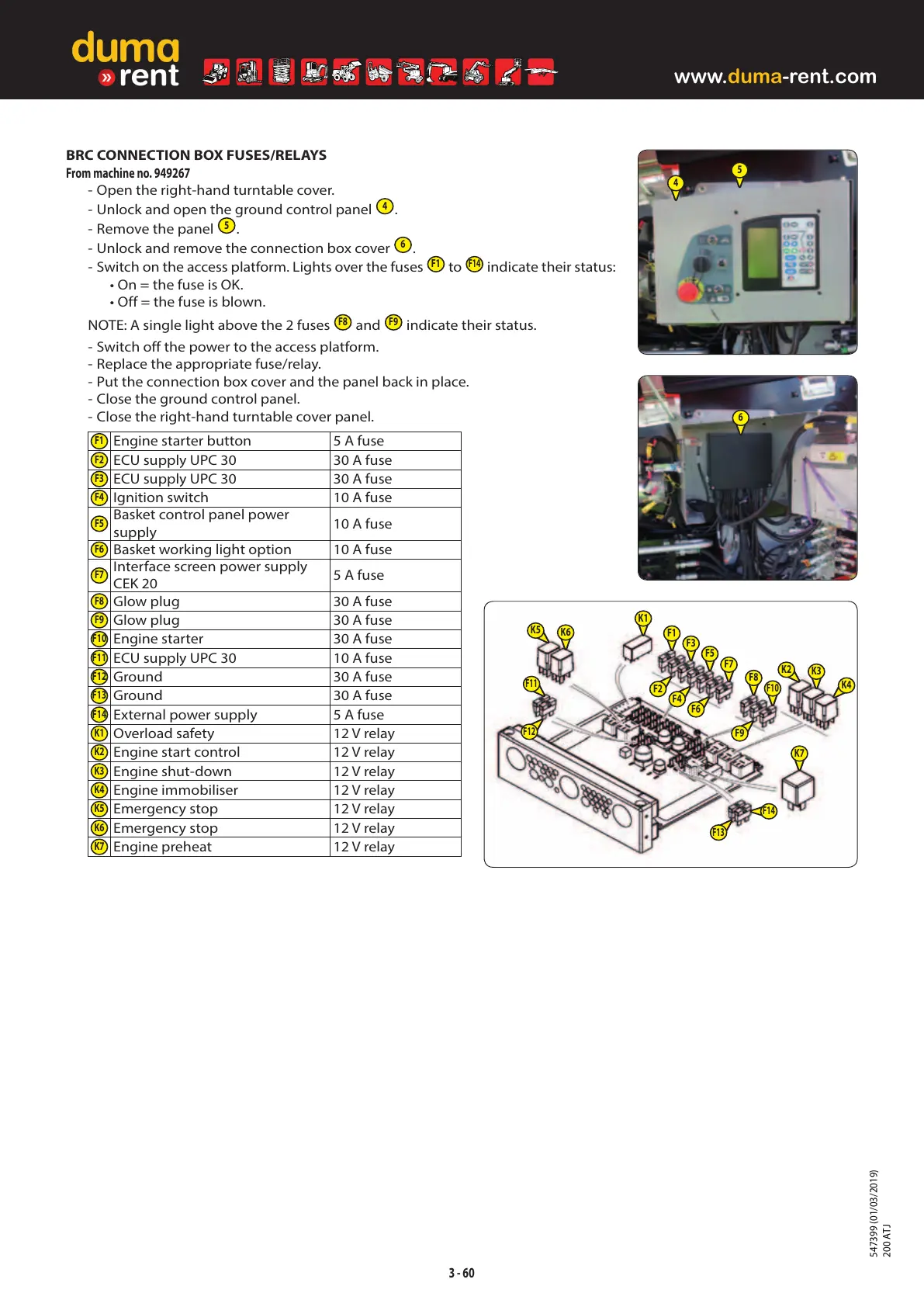

BRC CONNECTION BOX FUSES/RELAYS
From machine no. 949267
- Open the right-hand turntable cover.
- Unlock and open the ground control panel
4
.
- Remove the panel
5
.
- Unlock and remove the connection box cover
6
.
- Switch on the access platform. Lights over the fuses
F1
to
F14
indicate their status:
• On = the fuse is OK.
• Off = the fuse is blown.
NOTE: A single light above the 2 fuses
F8
and
F9
indicate their status.
- Switch off the power to the access platform.
- Replace the appropriate fuse/relay.
- Put the connection box cover and the panel back in place.
- Close the ground control panel.
- Close the right-hand turntable cover panel.
F1
Engine starter button 5A fuse
F2
ECU supply UPC30 30A fuse
F3
ECU supply UPC30 30A fuse
F4
Ignition switch 10A fuse
F5
Basket control panel power
supply
10A fuse
F6
Basket working light option 10A fuse
F7
Interface screen power supply
CEK20
5A fuse
F8
Glow plug 30A fuse
F9
Glow plug 30A fuse
F10
Engine starter 30A fuse
F11
ECU supply UPC30 10A fuse
F12
Ground 30A fuse
F13
Ground 30A fuse
F14
External power supply 5A fuse
K1
Overload safety 12V relay
K2
Engine start control 12V relay
K3
Engine shut-down 12V relay
K4
Engine immobiliser 12V relay
K5
Emergency stop 12V relay
K6
Emergency stop 12V relay
K7
Engine preheat 12V relay
547399 (01/03/2019) 200 ATJ
