Manitou 200 ATJ User Manual

3 - 45
8
A
B
2 6
1
8
6
7
2
5
4
3

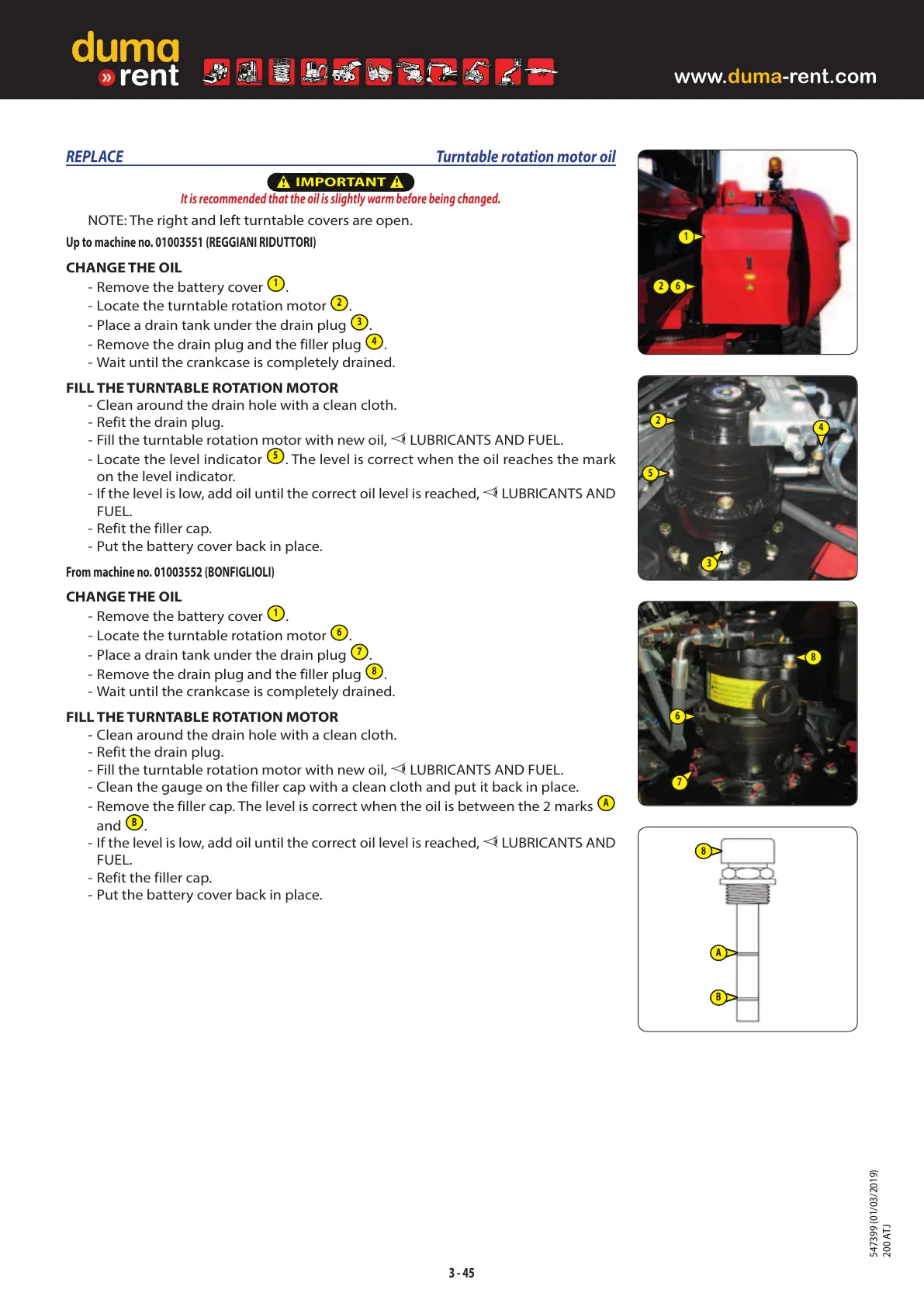

REPLACE Turntable rotation motor oil

IMPORTANT

It is recommended that the oil is slightly warm before being changed.
NOTE: The right and left turntable covers are open.
Up to machine no. 01003551 (REGGIANI RIDUTTORI)
CHANGE THE OIL
- Remove the battery cover
1
.
- Locate the turntable rotation motor
2
.
- Place a drain tank under the drain plug
3
.
- Remove the drain plug and the filler plug
4
.
- Wait until the crankcase is completely drained.
FILL THE TURNTABLE ROTATION MOTOR
- Clean around the drain hole with a clean cloth.
- Refit the drain plug.
- Fill the turntable rotation motor with new oil,
LUBRICANTS AND FUEL.
- Locate the level indicator
5
. The level is correct when the oil reaches the mark
on the level indicator.
- If the level is low, add oil until the correct oil level is reached, LUBRICANTS AND
FUEL.
- Refit the filler cap.
- Put the battery cover back in place.
From machine no. 01003552 (BONFIGLIOLI)
CHANGE THE OIL
- Remove the battery cover
1
.
- Locate the turntable rotation motor
6
.
- Place a drain tank under the drain plug
7
.
- Remove the drain plug and the filler plug
8
.
- Wait until the crankcase is completely drained.
FILL THE TURNTABLE ROTATION MOTOR
- Clean around the drain hole with a clean cloth.
- Refit the drain plug.
- Fill the turntable rotation motor with new oil,
LUBRICANTS AND FUEL.
- Clean the gauge on the filler cap with a clean cloth and put it back in place.
- Remove the filler cap. The level is correct when the oil is between the 2 marks
A
and
B
.
- If the level is low, add oil until the correct oil level is reached, LUBRICANTS AND
FUEL.
- Refit the filler cap.
- Put the battery cover back in place.
