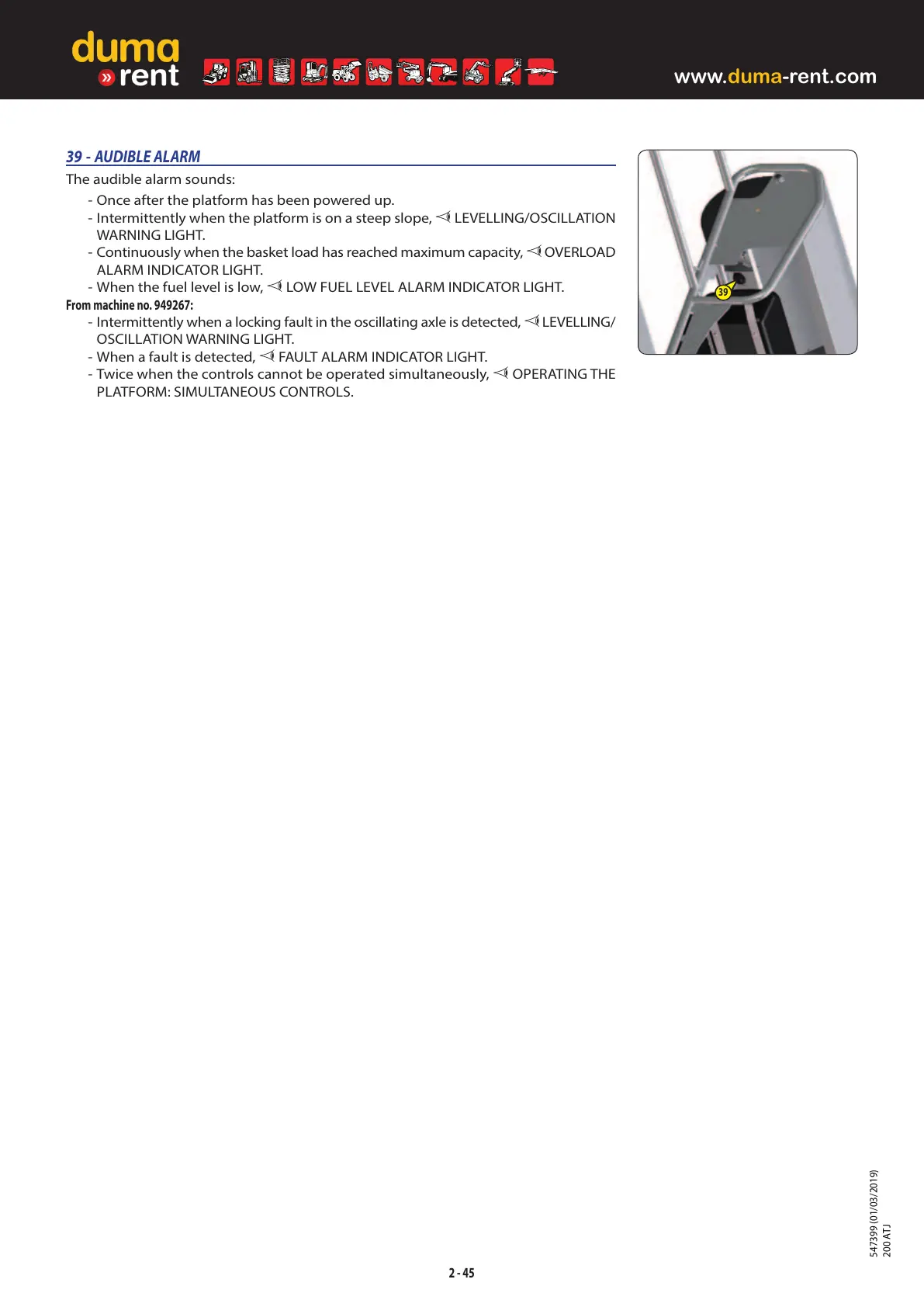

39 - AUDIBLE ALARM

The audible alarm sounds:

- Once after the platform has been powered up.

- Intermittently when the platform is on a steep slope,

LEVELLING/OSCILLATION

WARNING LIGHT.

- Continuously when the basket load has reached maximum capacity,

OVERLOAD

ALARM INDICATOR LIGHT.

- When the fuel level is low, LOW FUEL LEVEL ALARM INDICATOR LIGHT.

From machine no. 949267:

- Intermittently when a locking fault in the oscillating axle is detected, LEVELLING/

OSCILLATION WARNING LIGHT.

- When a fault is detected, FAULT ALARM INDICATOR LIGHT.

- Twice when the controls cannot be operated simultaneously, OPERATING THE

PLATFORM: SIMULTANEOUS CONTROLS.
