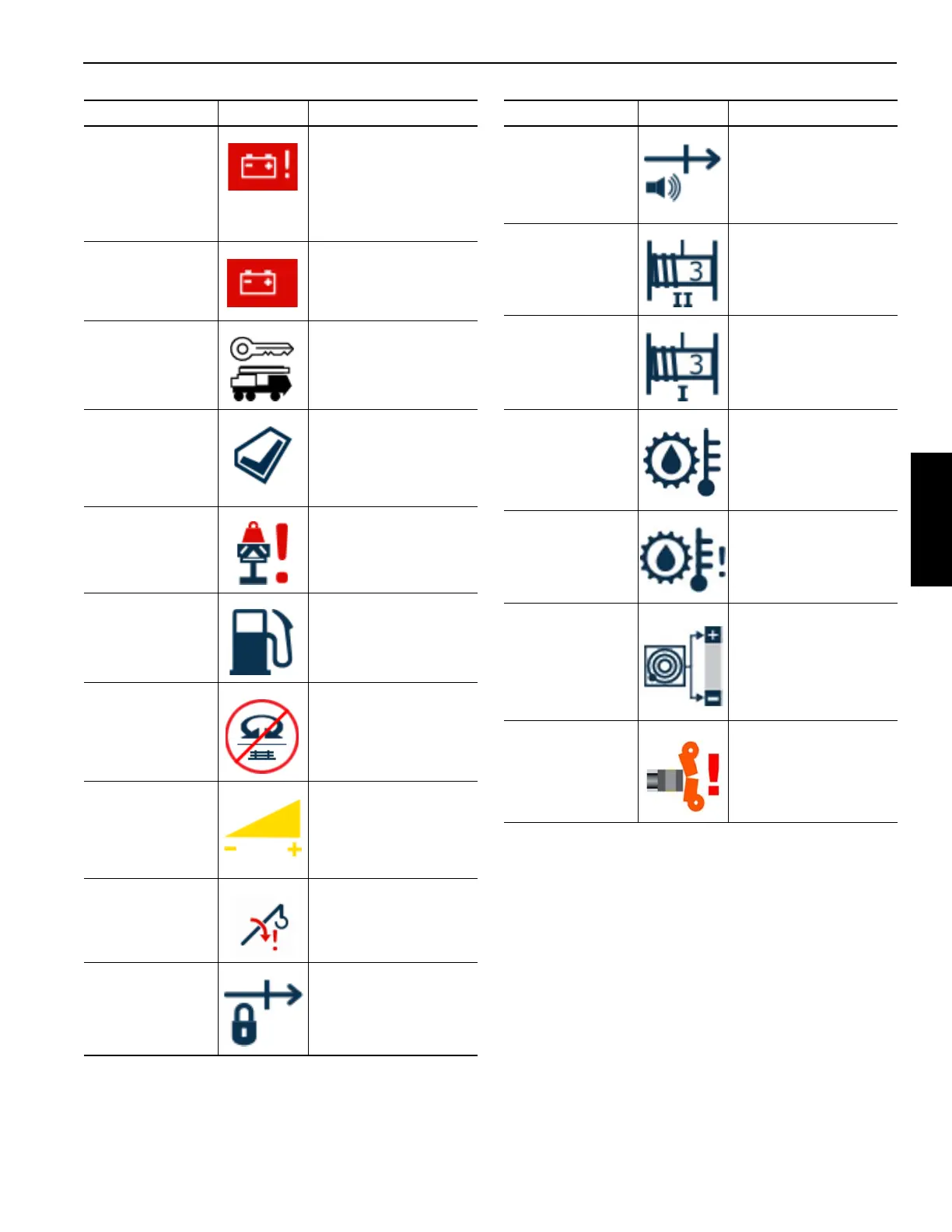

TMS9000-2 OPERATOR MANUAL OPERATING CONTROLS AND INDICATORS
3
Alternator
charge error
The engine is running
but the alternator is not
charging –OR—the
engine is not running
but the alternator is
charging.
Alternator
charge low
The battery voltage is
too low (about 22V or
less) or too high (30V
or more).
Carrier key on
The carrier cab key is
in the ON or START
position.
Cab not down
Cab tilt is blocked. This
could be during engine
start, or because the
seat switch is not
active.
Center stabilizer
overload
The pressure in the
center front jack
cylinder is too high.
Fuel level
The fuel level is low.
Counterweight
blocking swing
The counterweight is
blocking swinging
because the cylinders
are not fully up.
Settings speed
or Speed adjust
The speed settings or
joystick curves are not
at their default value
(100% or linear
joystick).
Boom extension
too low
The boom is near the
driving cab and motion
is blocked.
Forbidden zone
blocking range
The boom is near the
driving cab and motion
is blocked.
Name Icon Description
Forbidden zone
bypassed
The boom is near the
driving cab and motion
would be blocked but
the bypass switch is
allowing motion.
Third wrap aux.
hoist
Only 3 wraps remain
on the aux hoist. Hoist
lowering is blocked.
Third wrap main
hoist
Only 3 wraps remain
on the main hoist. Hoist
lowering is blocked.
Hydraulic oil
temp high
The hydraulic oil temp
is heated up to the
warning level.
Hydraulic oil
temp invalid
The hydraulic oil temp
cannot be read
correctly.
Level sensor
not OK
The level sensor is not
communicating, is not
calibrated, or is self-
reporting an error.
Tele cylinder at
boom nose
The telescoping
cylinder has extended
too far and reached the
boom nose. Tele
extension is blocked.
