Manitowoc Grove TMS9000-2 Series User Manual

GROVE 6-61
TMS9000-2 OPERATOR MANUAL SET-UP AND INSTALLATION
6
Published 02-21-2019, Control # 611-05

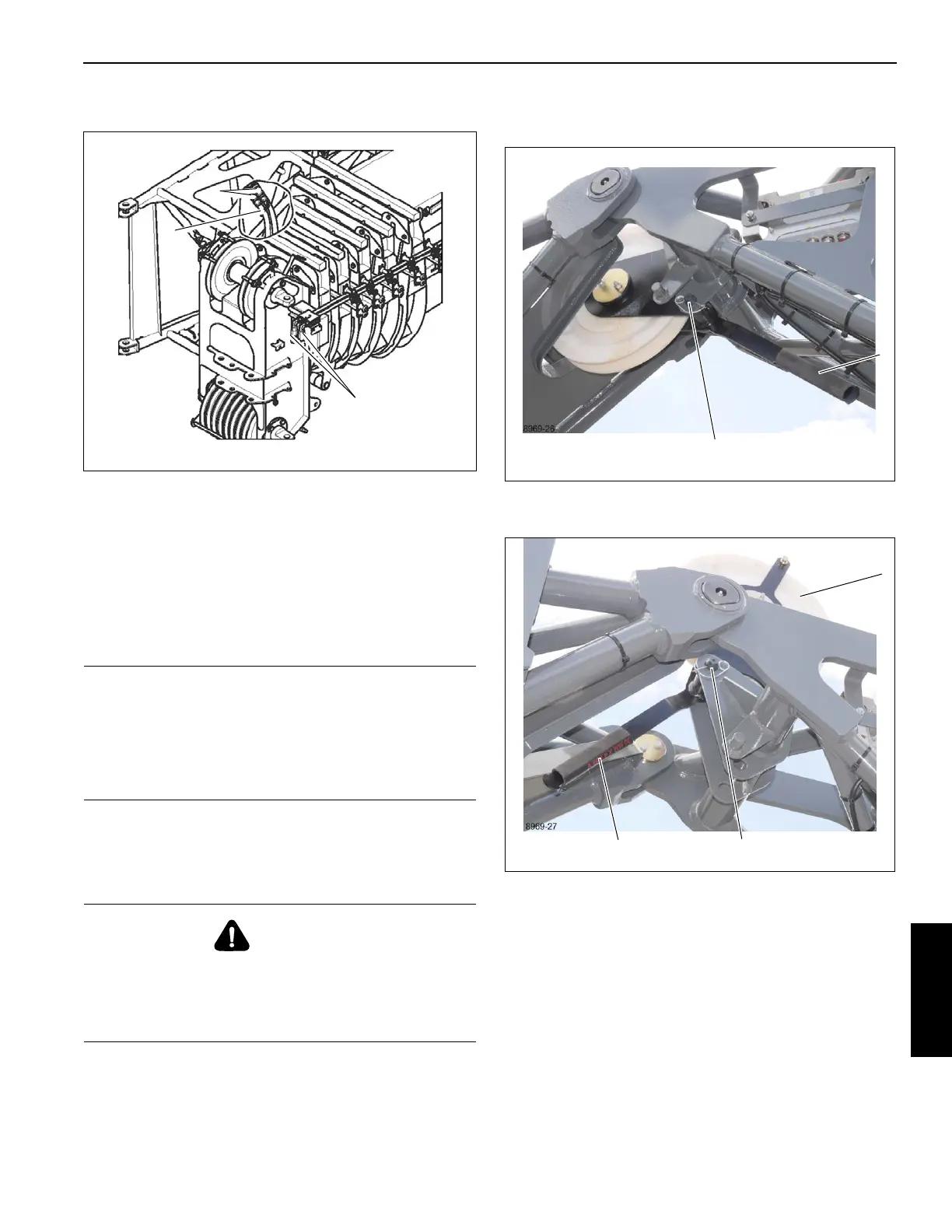

Disconnecting the Hydraulic Connection
1. Remove the hose lines (2) from the connections (1)
(Figure 6-120).
2. Close off the hose lines and the connections (1) with the
protective caps.
3. Secure hoses in holder (3) on the 10.5 m (35 ft)
extension.
Folding Deflection Sheaves
Deploying the Rear Deflection Sheave
The deflection sheave shall be deployed when the boom
extension is used. The sheave must be lowered for travel.
1. Remove the retaining clip from the pin (1)
(Figure 6-121).
2. Hold the deflection sheave by the handle (2) and pull out
the pin (1).
3. Fold the deflection sheave (1) up and fasten it in this
position with the pin (2) (Figure 6-122).
4. Secure the pin (2) using the retaining clip.
Stowing Rear Deflection Sheave
1. Remove the retaining clip from the pin (2)
(Figure 6-122).
2. Hold the deflection sheave by the handle (3) and pull out
the pin (2).
3. Fold the deflection sheave (1) down and fasten it in
position with the pin (2).
CAUTION
Machine Damage!
The deflection sheave must be stowed before adjusting
the offset angle of the extension. Failure to stow the
deflection sheave may result in damage to the extension
or sheave.
CAUTION
Pinch Hazard!
Keep hands clear of the moving deflection sheave during
deployment and stowing. Always use the handle provided
to control the movement.
7567-38
1
2
3
FIGURE 6-120
8969-26
FIGURE 6-121
1
2
8969-27
FIGURE 6-122
1
2
3
