Mindray DC-8 EXP Service Manual

11-10 System Diagnosis and Support
11.3.5 PHV Alarm
11.3.6 Gel Warmer Abnormality
FS_BB_BOT0, FS_BB_BOT1, FS_BB_BOT2, FS_BB_BOT3,
FS_FB_TOP0, FS_FB_TOP1, FS_FB_BOT0, FS_FB_BOT1
“FS_FB” refers to big fan; “FS_BB”refers to the small fan.

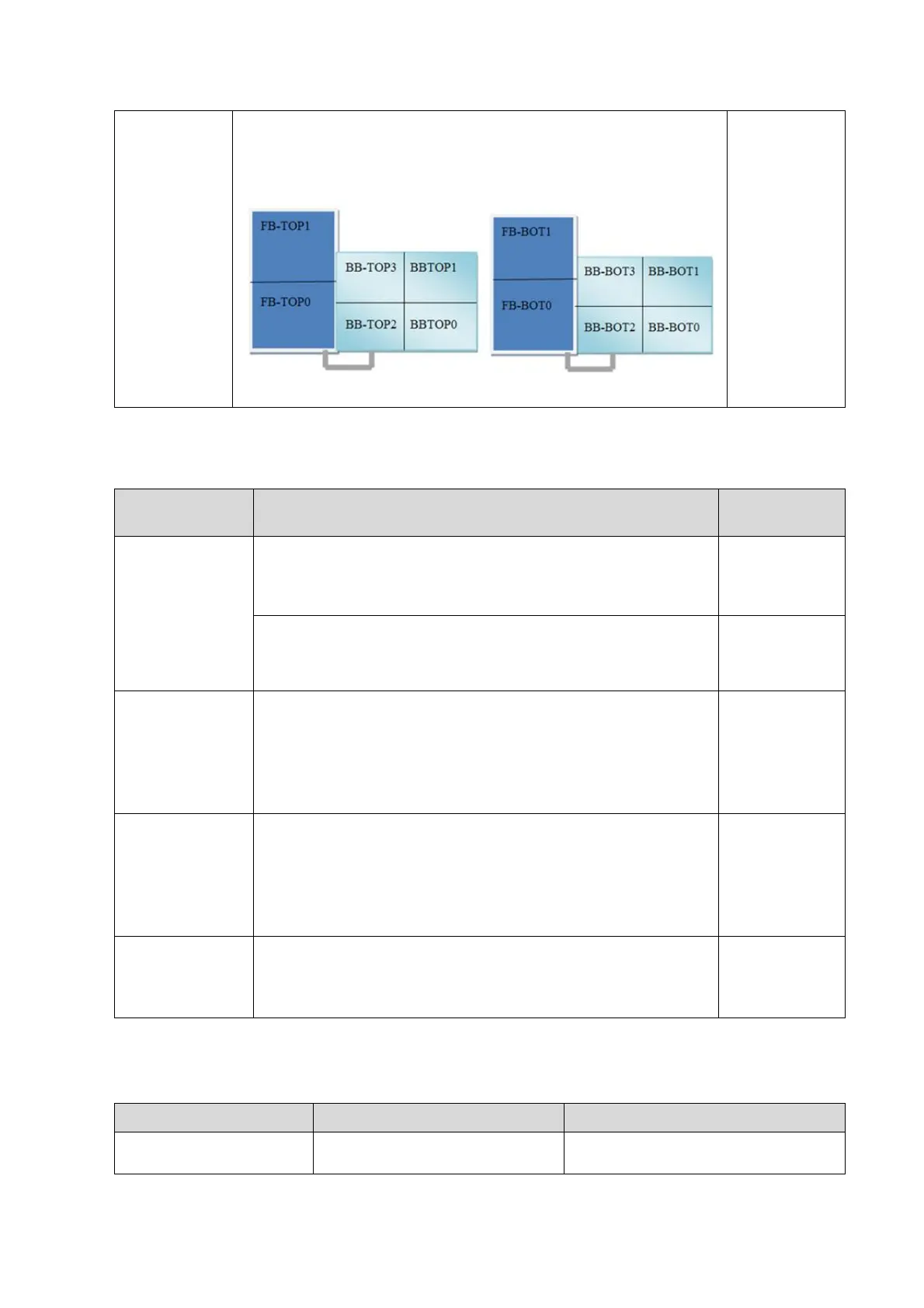

Fan locations are shown as follows:
Top fan Bottom fan
Alarming tips
LOG record
Potential
reason
None
*** +100V Power supply voltage error, the voltage is
[LLL]V ,normal region is 95.000V to 105.000V
[LLL] refers to the voltage
+100V
over-voltage or
zero
*** -100V Power supply voltage error, the voltage is
[LLL]V ,normal region is -95.000V to -105.000V
[LLL] refers to the voltage
-100V
over-voltage or
zero
Alarm!
High-voltage
transmission is
abnormal, and
images can’t
display normally!
*** [XXX] supply voltage error, [XXX] is [LLL] V (upper limit is
80.000V
[XXX] refers to the high-voltage name, they are: PHV1P,
PHV1N, PHV2P, PHV2N
[LLL] refers to the current value.
PHV1+/PHV1-/
PHV2+ /PHV2-
over voltage
Alarm!
High-voltage
transmission is
abnormal, and
images can’t
display normally!
*** UPhvMonitor: phv hardware warning: FAIL_HV&PHV
Malfunction on
the front-end
power main
board
*** PHV protect,
PHV1P:[VVV]V,PHV1N:[LLL]V,PHV2P:[PPP]V,PHV2N:[AAA]V
[VVV], [LLL], [PPP], [AAA]V refer to different voltages.
PHV1+/PHV1-
/PHV2+/PHV2-
is zero
Abnormality
Potential Causes
Suggestion
Green indicator is off
Damage of internal component
or abnormality in microcontroller
Unplug and reconnect the power
cord to observe if the green light is
