System Installation 3-11

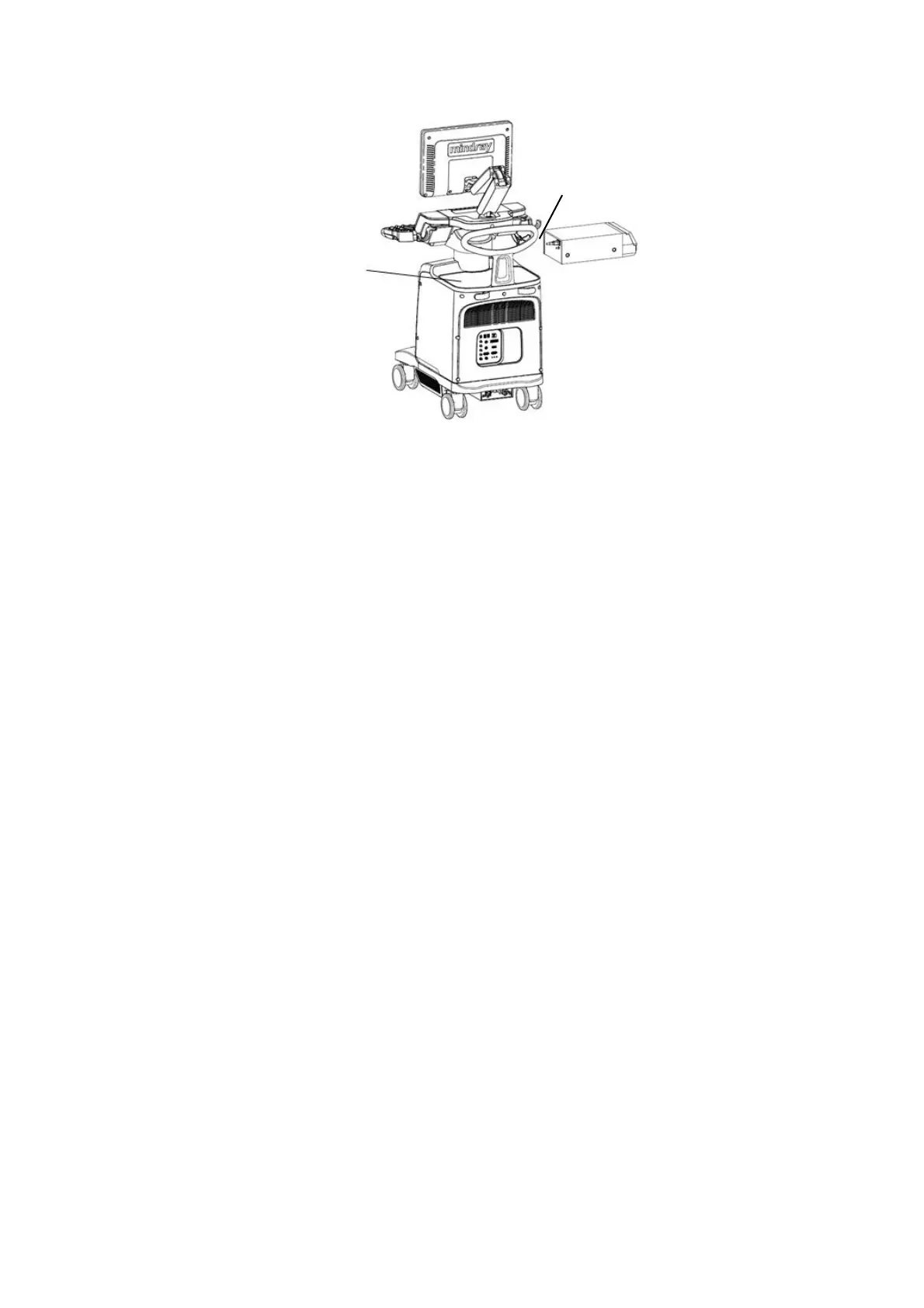

Installing a color video printer
3.4.3.2 Digital Video Printer
The installation method of B/W digital Video Printer is similar to color digital Video Printer. Take
MITSUBISHI P93DC for example.
1. Place the printer inside the compartment. Place another printer, if available, on the platform
behind the control panel.
2. Plug the AC power cord hidden in the compartment under the control panel of the system to the
AC LINE port of the printer.
3. Connect the USB video cable in the compartment to the port on the printer.
4. Printers listed in this manual (referring to 2.1.3) have drivers installed already.
3.4.3.3 Wireless Printer
HP e-All-IN-ONE B210a is a wireless printer used for report printing (not supported by Doppler
system V4.0 and later version).
1. Plug the printer power cord to an appropriate outlet.
2. Power on the system and the printer.
3. Make sure the ultrasound machine and the printer are connected to a same LAN, and turned
on the W-LAN function of the printer.
4. Open the [Preset]→[Printer Preset] page, select “Report Print” in the printer list, and then select
the printer to be HP e-All-IN-ONE B210a, and set properties.
5. Click [OK] to exit the preset and make the settings effective.
3.4.4 Installing Barcode Scanner
The system supports barcode reader to read the patient information (ID).
1. For structure of the scanner, see the figure below. The important parts are: LED indicator,
scanning surface, and the switch.
To Next Page
