NV8500 family Digital Routers • User’s Guide 91
2. Installation
Connecting to Power
4 Using a WC0046 cable (DB25), connect ‘PS Frame 1 Monitor’ on the NV8000 power supply
frame to ‘Power Supply Monitor’ on the router frame.
5 Connect power cords from AC power sources (90–230 VAC, 50–60 Hz) into power supply con-
nections PS 1 through PS 4. (See Figure 2-35.) Connect one power cord for each PS8100 power
supply module you will install.
6 Install the PS8100 power supply modules as follows:
a At the front of the NV8000, install primary PS8100 power supply modules in slots 1 and 3,
as shown in Figure 2-36.
b Optionally, install redundant PS8100 power supply modules in slots 2 and 4, as shown in
Figure 2-36.
c Repeat this step for the other power supply.

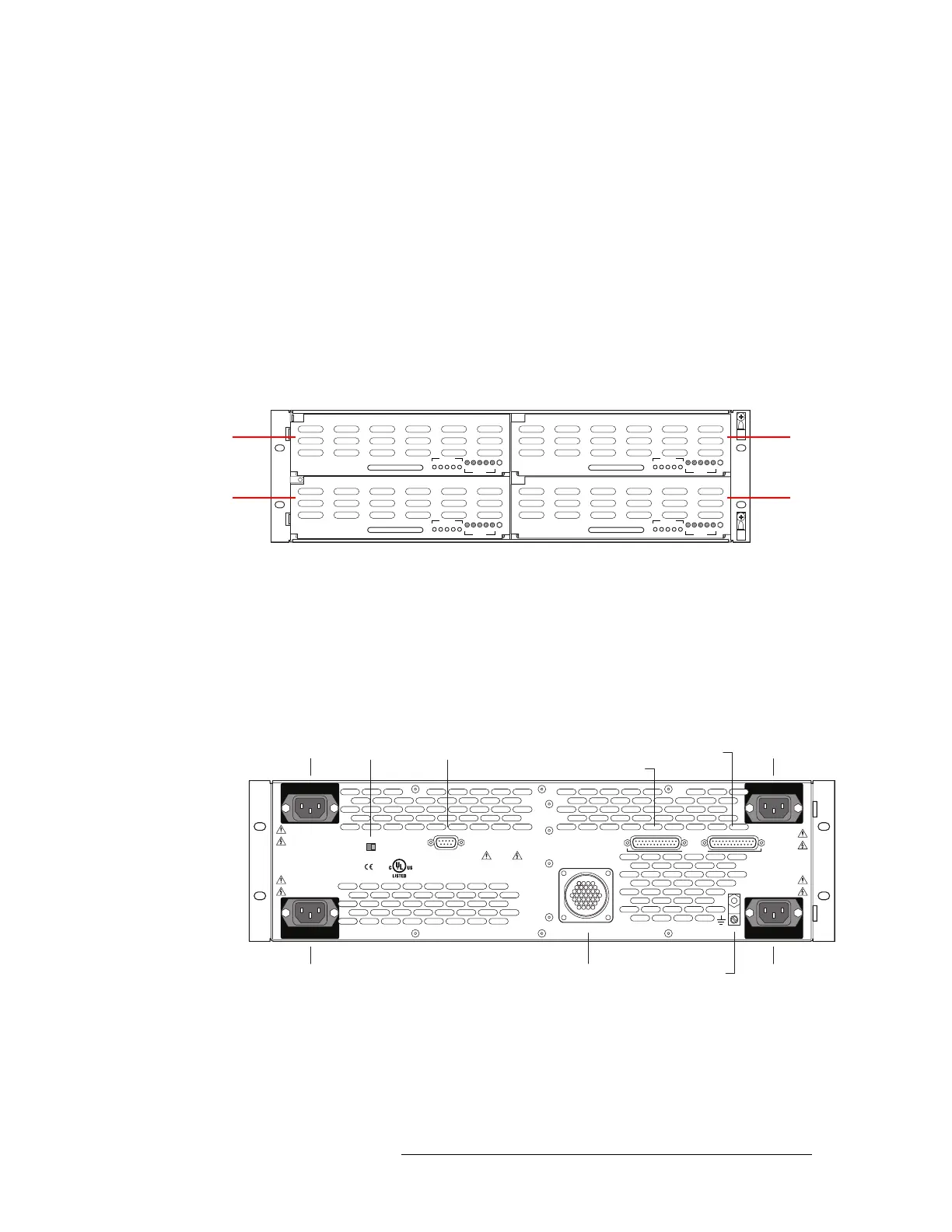

Figure 2-36. NV8000 Power Supply (Front View)
7 Connect the router’s ground lug to earth ground using a copper wire from 14 to 6 AWG. The
ground lug is located in the lower right corner of the frame.
How to Connect Two NV8000 Frames to One Router Frame (NV8576 only)
1 Locate the power cords and PS8100 power supply modules.
2 Facing the rear of one of the NV8000 frames (Power Supply 1), connect one end of a power
cable (WC0096) to ‘DC Output’, as shown in Figure 2-37.
Figure 2-37. NV8000 Power Supply (Rear View)
GND
PS8010
12345
12345
POWER
48V
+
GND
PS8010
12345
12345
POWER
48V
+
GND
PS8010
12345
12345
POWER
48V
+
GND
PS8010
12345
12345
POWER
48V
+
1 (primary) 2 (redundant)
4 (redundant)3 (primary)
PS3
LOWER LEFT
PS1
UPPER LEFT
90-130V~/180-250V~
12.5A/6.25A
50/60Hz
1125 WAT TS
MAX
PS FRAME 1 MONITOR PS FRAME 2 MONITOR
LOOP THRU
90-130V~/180-250V~
12.5A/6.25A
50/60Hz
1125 WAT TS MAX
VIDEO/AUDIO
PROFESSIONAL
CNTRL NO. 9K50
PLEASE READ INSTRUCTION
MANUAL BEFORE CONNECTING
EQUIPMENTTO THE MAINS
E146905
CAUTION
THIS EQUIPMENT HAS FOUR POWER
SUPPLY CORDS. TO REDUCETHE RISK
OF ELECTRIC SHOCK DISCONNECT ALL
POWER SUPPLY CORDS BEFORE SERVICING.
ALARMS
DC OUTPUT POWER
FRAME ID
1 2
PS4
LOWER RIGHT
PS2
UPPER RIGHT
90-130V~/180-250V~
12.5A/6.25A
50/60Hz
1125 WAT TS MAX
90-130V~/180-250V~
12.5A/6.25A
50/60Hz
1125 WAT TS MAX
PS1PS2
PS3PS4
PS Frame 1 Monitor
DC Output Ground Lug
PS Frame 2 MonitorAlarmsFrame ID
