104
4. BASIC OPERATION
4.4 Basic operation procedure (JOG operation)
4.4 Basic operation procedure (JOG operation)
4.4.1 Performing JOG operation using external signals
• Perform JOG operation only while the JOG signal is ON.
• Use Pr.15 Jog frequency and Pr.16 Jog acceleration/deceleration time for the operation.
•Set Pr.79 Operation mode selection = "2" (External operation mode).

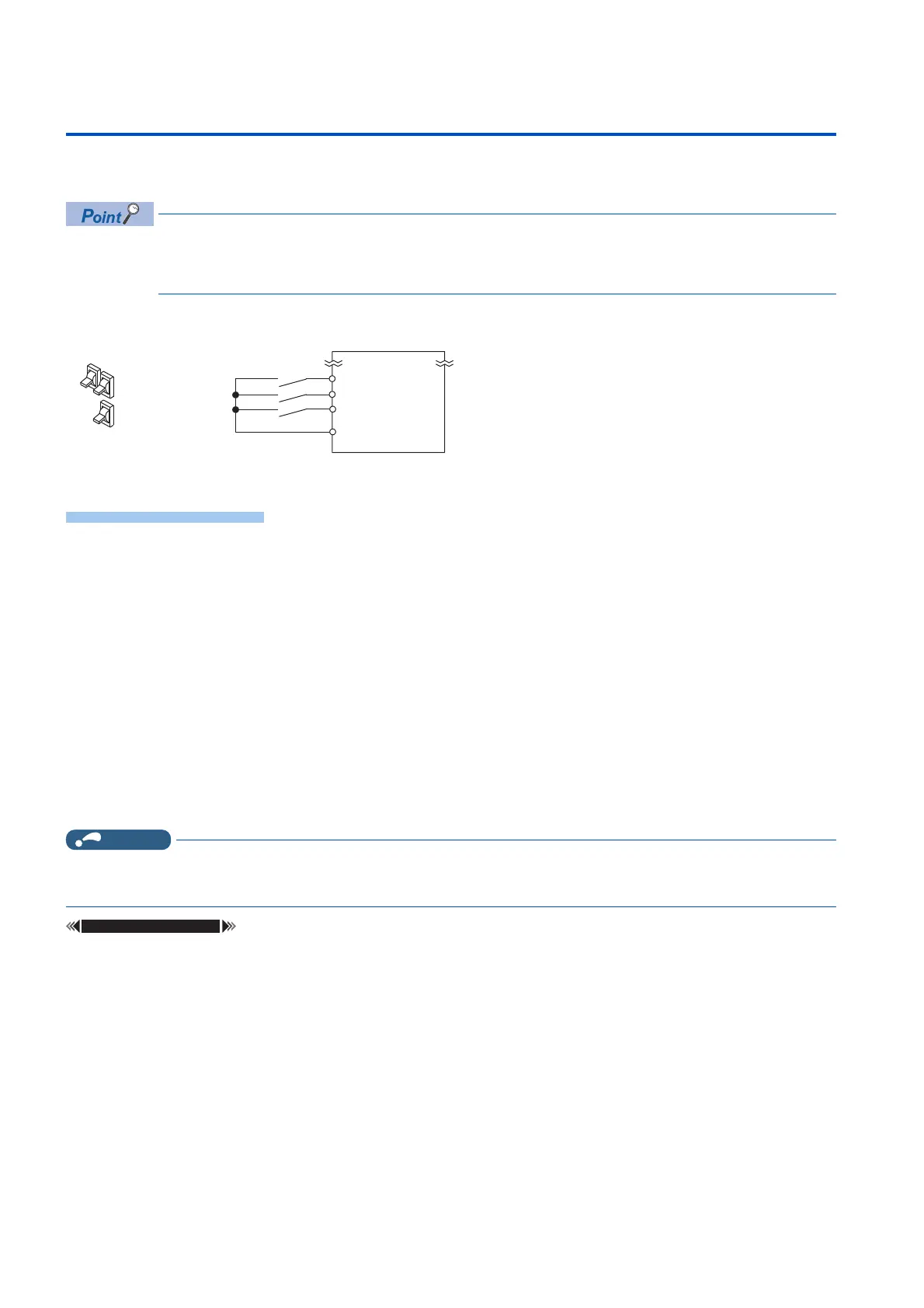

[Connection diagram]
The following shows the procedure to operate at 5 Hz.
1. Screen at power-ON
The monitor display appears.
2. Turning ON the JOG signal
Turn ON the JOG switch (JOG). The inverter is set ready for the JOG operation.
3. Start → acceleration → constant speed
Turn ON the start switch (STF or STR). The frequency value on the indication increases in Pr.16 Jog acceleration/
deceleration time, and "5.00 Hz" appears. [FWD] indicator is on during the forward rotation, and [REV] indicator is
on during the reverse rotation.
4. Deceleration → stop
Turn OFF the start switch (STF or STR). The frequency value on the indication decreases in Pr.16 Jog
acceleration/deceleration time, and the motor stops rotating with "0.00 Hz" displayed. [FWD] or [REV] indicator
turns OFF. Turn OFF the JOG switch (JOG).
• To change the frequency, change Pr.15 Jog frequency (initial value "5 Hz").
• To change the acceleration/deceleration time, change Pr.16 Jog acceleration/deceleration time (initial value "0.5 s").
Pr.15 Jog frequency page 224
Pr.16 Jog acceleration/deceleration time page 224
Pr.79 Operation mode selection page 204
STF
Forward rotation start
SD
JOG
Inverter
JOG signal
Reverse rotation start
STR
Switch
To Next Page
