226

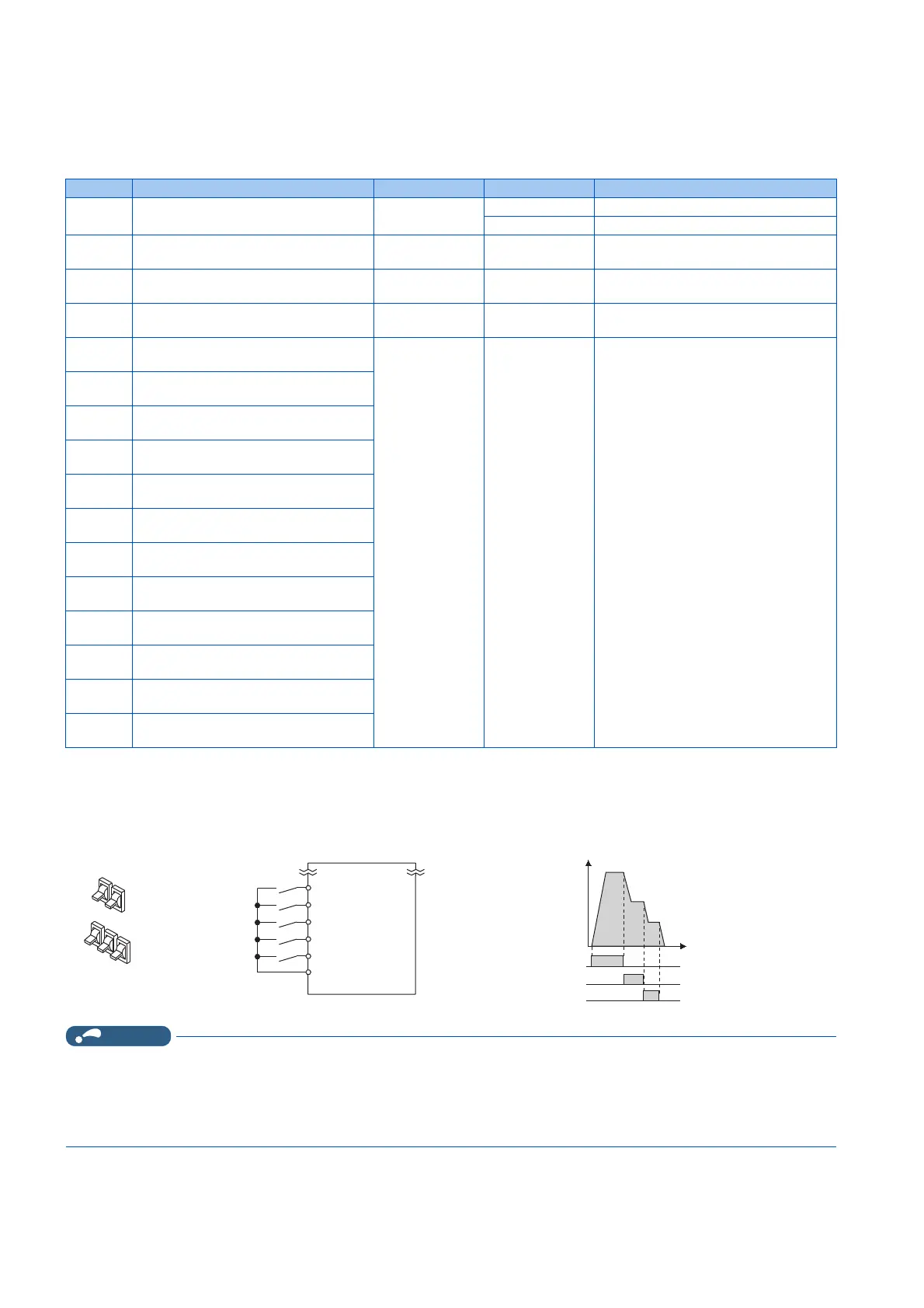

5. PARAMETERS
5.6 (D) Operation command and frequency command
5.6.7 Operation by multi-speed setting
Use these parameters to change among pre-set operation speeds with the terminals. The speeds are pre-set with parameters.
Any speed can be selected by simply turning ON/OFF the contact signals (RH, RM, RL, and REX signals).
Multi-speed setting (Pr.4 to Pr.6)
• The inverter operates at frequencies set in Pr.4 when RH signal is ON, Pr.5 when RM signal is ON and Pr.6 when RL
signal is ON.
• In the initial setting, when two or more of multi-speed settings are simultaneously selected, priority is given to the set
frequency of the lower signal. For example, when RH and RM signals turn ON, RM signal (Pr.5) has a higher priority.
• The RH, RM and RL signals are assigned to the terminals RH, RM and RL in the initial status. Set "0 (RL)", "1 (RM)", and
"2 (RH)" in any of Pr.178 to Pr.189 (Input terminal function selection) to assign the signals to other terminals.
Pr. Name Initial value Setting range Description
28
D300
Multi-speed input compensation
selection
0 0 Without compensation
1 With compensation
4
D301
Multi-speed setting (high speed) 60 Hz 0 to 590 Hz Sets the frequency when RH is ON.
5
D302
Multi-speed setting (middle speed) 30 Hz 0 to 590 Hz Sets the frequency when RM is ON.
6
D303
Multi-speed setting (low speed) 10 Hz 0 to 590 Hz Sets the frequency when RL is ON.
24
D304
Multi-speed setting (speed 4) 9999 0 to 590 Hz, 9999 Frequency from 4th speed to 15th speed
can be set according to the combination of
the RH, RM, RL and REX signals.
9999: Not selected
25
D305
Multi-speed setting (speed 5)
26
D306
Multi-speed setting (speed 6)
27
D307
Multi-speed setting (speed 7)
232
D308
Multi-speed setting (speed 8)
233
D309
Multi-speed setting (speed 9)
234
D310
Multi-speed setting (speed 10)
235
D311
Multi-speed setting (speed 11)
236
D312
Multi-speed setting (speed 12)
237
D313
Multi-speed setting (speed 13)
238
D314
Multi-speed setting (speed 14)
239
D315
Multi-speed setting (speed 15)
Forward rotation start
RM
STF
STR
RH
SD
RL
Inverter
Switch
Reverse rotation start
High speed
Middle speed
Low speed
ON
ON
ON
Output frequency (Hz)
Speed 1
(High speed)
Speed 2
(Middle speed)
Speed 3
(Low speed)
Time
RH
RM
RL
