312
5. PARAMETERS
5.8 (M) Monitor display and monitor output signal
5.8.11 Analog remote output function
An analog value can be output from the analog output terminal.
Analog remote output (Pr.656 to Pr.659)
• The terminals CA/AM and the analog output terminal of the option FR-A8AY can output the values set in Pr.656 to Pr.659
(Analog remote output).
• When Pr.54 CA terminal function selection = "87, 88, 89, or 90" (remote output), analog current can be output from the
terminal CA.
• Terminal CA output [mA] = 20 [mA] (analog remote output value - 1000)/100
Where the output range is 0 to 20 mA.
• When Pr.158 AM terminal function selection = "87, 88, 89, or 90", an analog voltage can be output from the terminal AM.
• Terminal AM output [V] = 10 [V] (analog remote output value - 1000)/100
The output range is -10 V to +10 V regardless of the Pr.290 Monitor negative output selection setting.

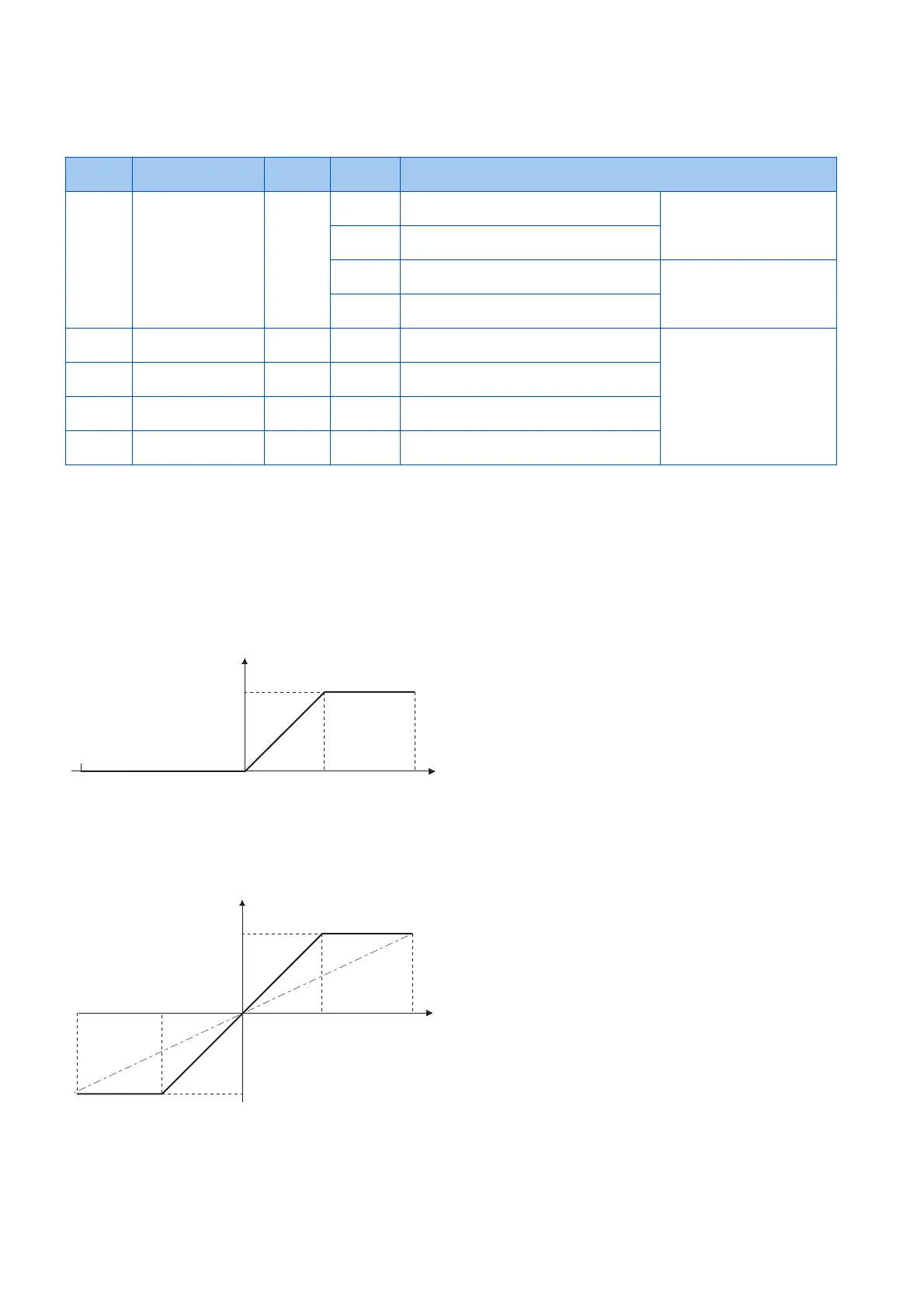

Pr. Name Initial
value
Setting
range
Description
655
M530
Analog remote
output selection
0 0 Remote output data is cleared when the
power supply is turned OFF
Remote output data is cleared
during an inverter reset
1 Remote output data is retained when the
power supply is turned OFF
10 Remote output data is cleared when the
power supply is turned OFF
Remote output data is
retained during an inverter
reset
11 Remote output data is retained when the
power supply is turned OFF
656
M531
Analog remote
output 1
1000% 800 to
1200%
Value output from the terminal set as "87" in
terminal function selection (Pr.54, Pr.158)
Set the analog value for
outputting from the analog
output terminals CA and AM
and option FR-A8AY.
657
M532
Analog remote
output 2
1000% 800 to
1200%
Value output from the terminal set as "88" in
terminal function selection (Pr.54, Pr.158)
658
M533
Analog remote
output 3
1000% 800 to
1200%
Value output from the terminal set as "89" in
terminal function selection (Pr.54, Pr.158)
659
M534
Analog remote
output 4
1000% 800 to
1200%
Value output from the terminal set as "90" in
terminal function selection (Pr.54, Pr.158)
20
1100 1200
Output current [mA]
800
1000
Analog remote output value [%]
0
Terminal CA
10
1100 1200
-10
900
Output voltage [V]
800
1000
Analog remote output value [%]
Terminal AM
0
