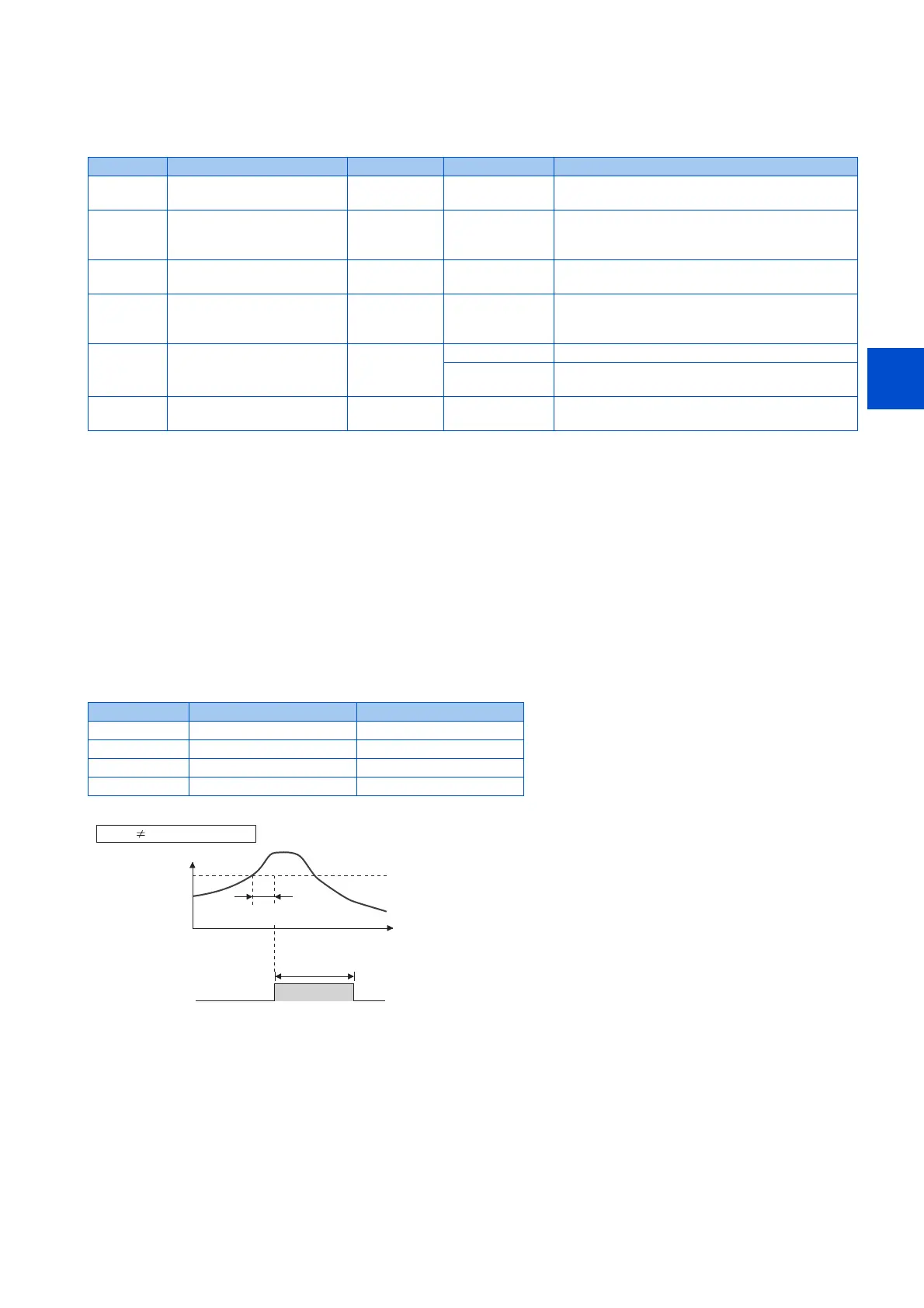

5.8.8 Output current detection function
The output current during inverter running can be detected and output to the output terminal.
Output current detection (Y12 signal, Pr.150, Pr.151, Pr.166, Pr.167)
• The output current detection function can be used for purposes such as overtorque detection.
• If the inverter output during inverter running remains higher than the Pr.150 setting for the time set in Pr.151 or longer, the
Output current detection (Y12) signal is output.
• When the Y12 signal turns ON, the ON state is retained for the time set in Pr.166.
• When Pr.166 = "9999", the ON state is retained until the next start.
• Setting Pr.167 = "1" while the Y12 signal is ON does not cause E.CDO. The Pr.167 setting becomes valid after the Y12
signal is turned OFF.
• For the Y12 signal, set "12 (positive logic) or 112 (negative logic)" in any of Pr.190 to Pr.196 (Output terminal function
selection) to assign the function to the output terminal.
• Select whether the inverter output stops or the inverter operation continues when Y12 signal turns ON, by setting Pr.167.
Pr. Name Initial value Setting range Description
150
M460
Output current detection
level
110% 0 to 220% Set the output current detection level. Consider the
value of the inverter rated current as 100%.
151
M461
Output current detection
signal delay time
0 s 0 to 300 s Set the time from when the output current exceeds the
Pr.150 setting until the Output current detection (Y12)
signal is output.
152
M462
Zero current detection level 5% 0 to 220% Set the zero current detection level.
The inverter rated current is regarded as 100%.
153
M463
Zero current detection time 0.5 s 0 to 300 s Set the time from when the output current falls below
the Pr.152 setting until the Zero current detection
(Y13) signal is output.
166
M433
Output current detection
signal retention time
0.1 s 0 to 10 s Set the retention time when the Y12 signal is ON.
9999 Retain the Y12 signal ON status. The signal is turned
OFF at the next start.
167
M464
Output current detection
operation selection
0 0, 1, 10, 11 Select the operation when Y12 and Y13 signals turn
ON.
Pr.167 setting When Y12 signal turns ON When Y13 signal turns ON
0 (Initial value) Continuous operation Continuous operation
1 Inverter trip (E.CDO) Continuous operation
10 Continuous operation Inverter trip (E.CDO)
11 Inverter trip (E.CDO) Inverter trip (E.CDO)
Time
Pr.150
OFF
ON
OFF
Output current
detection signal
(Y12)
Pr.166
Output current
Pr.166 "9999", Pr.167 = "0"
Pr.151
