4. BASIC OPERATION
4.3 Basic operation procedure (External operation)
4.3 Basic operation procedure (External operation)
Select a method to give the frequency command from the list below, and refer to the specified page for its procedure.
4.3.1 Using the frequency set by the operation panel
• Switch ON the STF (STR) signal to give a start command.
• Use the operation panel ( ) to give a start command.
•Set Pr.79 ="3" (External/PU combined operation mode 1).

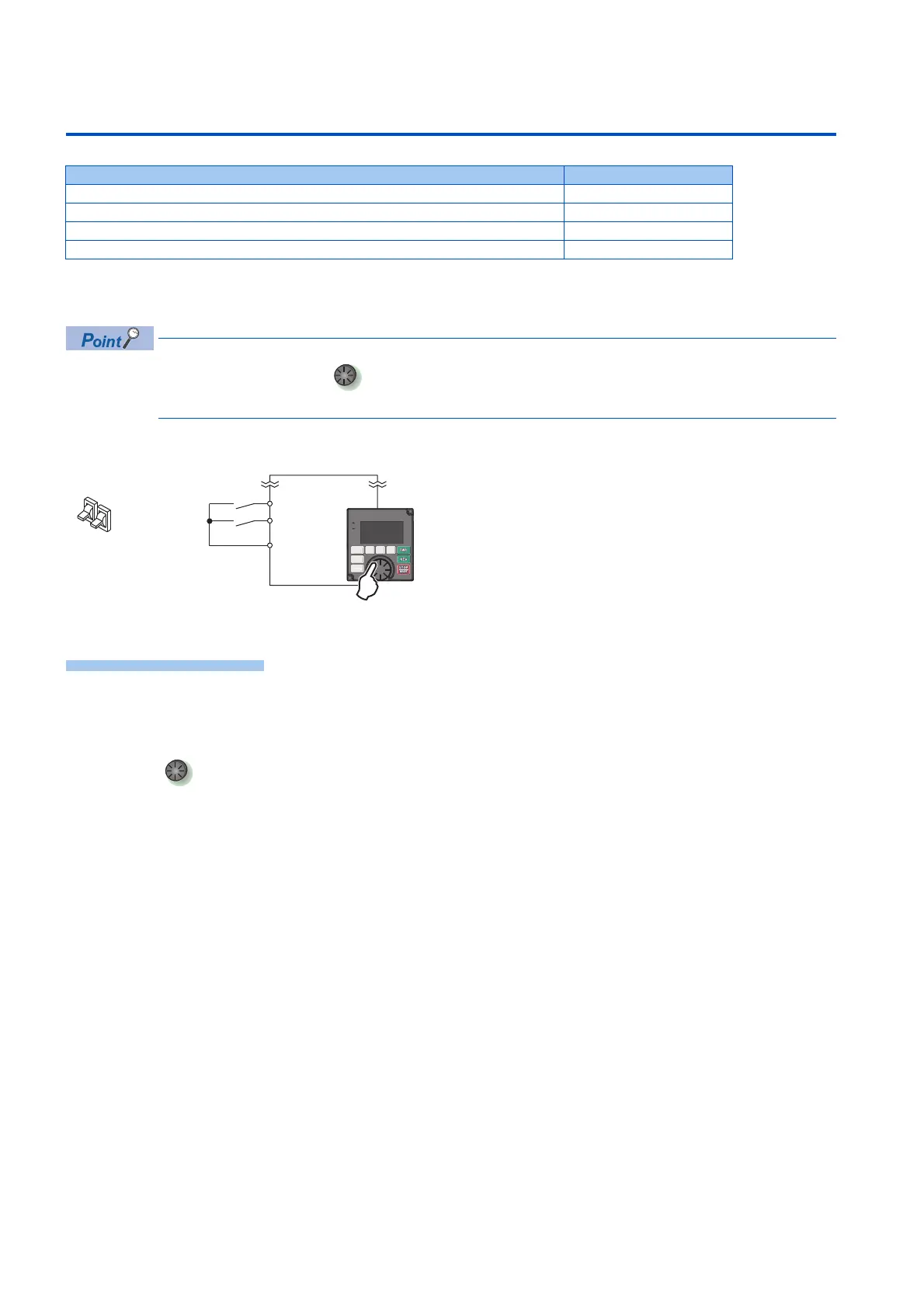

[Connection diagram]
The following shows the procedure to operate at 30 Hz.
1. Changing the operation mode
Set "3" in Pr.79. [PU+E] indicator is on.
2. Setting the frequency
Turn to until the target frequency, "30.00 Hz", appears.
Press [SET] to enter the frequency. "Completed" flickers.
3. Start → acceleration → constant speed
Turn ON the start switch (STF or STR). The frequency value on the indication increases in Pr.7 Acceleration time,
and "30.00 Hz" appears. [FWD] indicator is on during the forward rotation, and [REV] indicator is on during the
reverse rotation. (To change the set frequency, perform the operation in above step 2. The previously set frequency
appears.)
4. Deceleration → stop
Turn OFF the start switch (STF or STR). The frequency value on the indication decreases in Pr.8 Deceleration
time, and the motor stops rotating with "0.00 Hz" displayed.
Method to give the frequency command Refer to page
Setting the frequency on the operation panel in the frequency setting mode 96
Turning ON/OFF switches wired to inverter's terminals (multi-speed setting) 98
Setting the frequency by inputting voltage signals 99
Setting the frequency by inputting current signals 102
Inverter
Operation panel
SD
STF
STR
Forward rotation
start
Reverse rotation
start
Switch
