37
2. INSTALLATION AND WIRING
2.3 Installation of the inverter and enclosure design
3
2
3
4
5
6
7
8
9
10
2.3.5 Protruding the heat sink through a panel
When encasing the inverter of the FR-F860-02890 or higher to an enclosure, the heat generated in the enclosure can be greatly
reduced by protruding the heat sink of the inverter.
When installing the inverter in a compact enclosure, etc., this installation method is recommended.

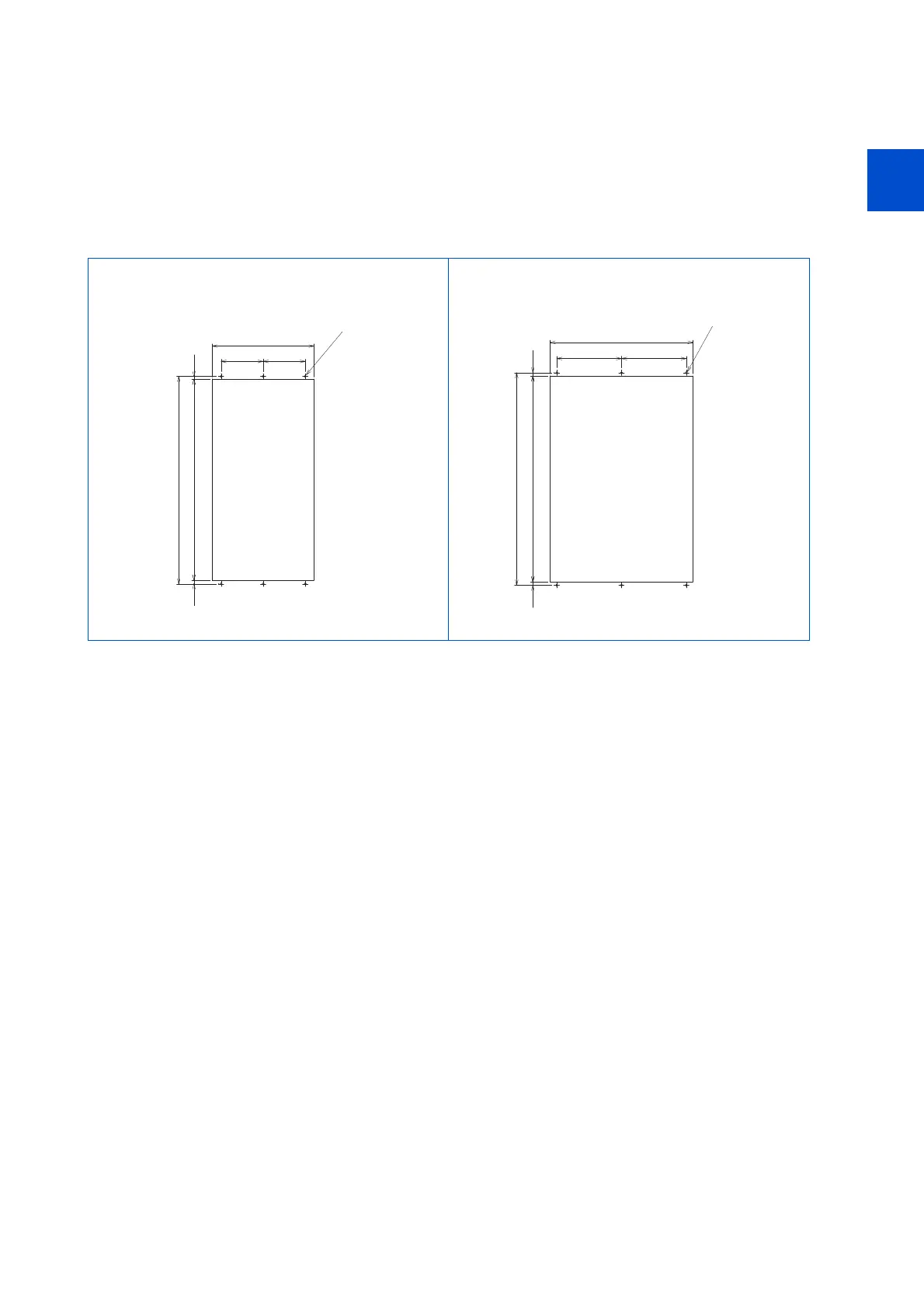

Panel cutting
Cut the panel of the enclosure according to the inverter capacity.
FR-F860-02890
FR-F860-03360
(Unit: mm)
FR-F860-04420
(Unit: mm)
200 200
484
1395418
985
Hole
6-M10 screw
Hole
300 300
662
1595415
984
6-M10 screw
