5.9.3 Analog input compensation
Addition compensation or fixed ratio analog compensation (override) with terminal 2 set to auxiliary input is applicable to the
multi-speed operation or terminal 2/terminal 4 speed setting signal (main speed).
Addition compensation (Pr.242, Pr.243)

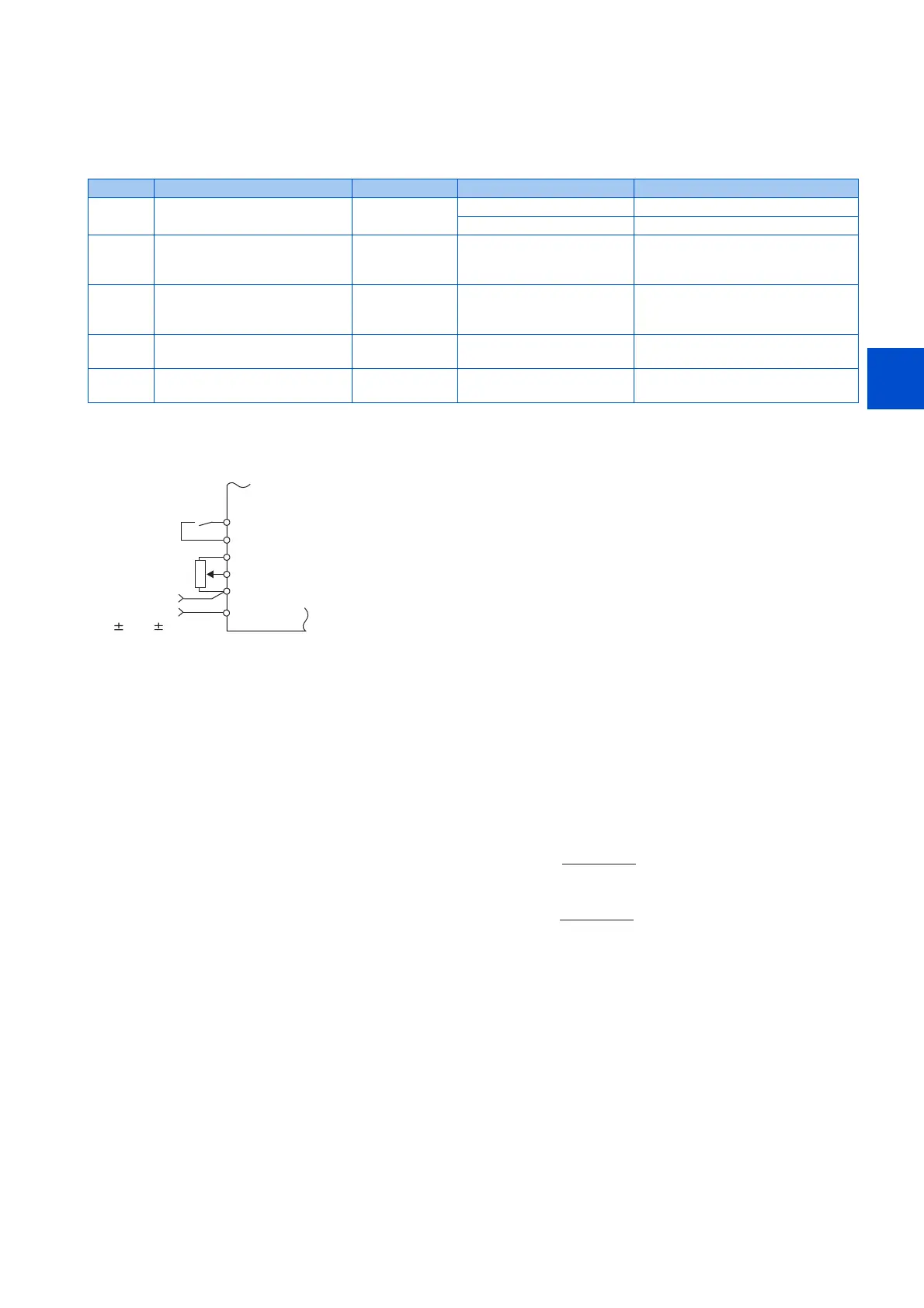

• Example of addition compensation connection
• A compensation signal is addable to the main speed setting for such as synchronous or continuous speed control
operation.
• Setting a value of "0 to 3, 6, 7, 10 to 13, 16, and 17" to Pr.73 adds the voltage between terminals 1 and 5 to the voltage
signal of the terminals 2 and 5.
• When Pr.73= "0 to 3, 6, or 7", and if the result of addition is negative, it is regarded as 0 and the operation is stopped. When
Pr.73 = "10 to 13, 16, or 17", the operation is reversed (polarity reversible operation) with STF signal ON.
• The terminal 1 compensation input is addable to the multi-speed setting or terminal 4 (initial value: 4 to 20 mA).
• The degree of addition compensation to terminal 2 is adjustable with Pr.242. The degree of addition compensation to
terminal 4 is adjustable with Pr.243.
Pr. Name Initial value Setting range Description
73
T000
Analog input selection 1 0 to 3, 6, 7, 10 to 13, 16, 17 Addition compensation
4, 5, 14, 15 Override compensation
242
T021
Terminal 1 added
compensation amount
(terminal 2)
100% 0 to 100% Set the percentage of addition
compensation when terminal 2 is set to
the main speed.
243
T041
Terminal 1 added
compensation amount
(terminal 4)
75% 0 to 100% Set the percentage of addition
compensation when terminal 4 is set to
the main speed.
252
T050
Override bias 50% 0 to 200% Set the percentage of override function
bias side compensation.
253
T051
Override gain 150% 0 to 200% Set the percentage of override function
gain side compensation.
10
2
5
Forward
rotation
Inverter
STF
SD
1
Auxiliary input
0 to 10 V ( 5 V)
Analog command value with use of terminal 2 = terminal 2 input + terminal 1 input ×
Pr.242
100(%)
Analog command value with use of terminal 4= terminal 4 input + terminal 1 input ×
Pr.243
100(%)
