Motorola iDEN Site Controller User Manual

Chapter 4 Installation Gen 3 Site Controller System Manual
Intercabling Connections
4-34 68P80801E30-A 5/1/2002

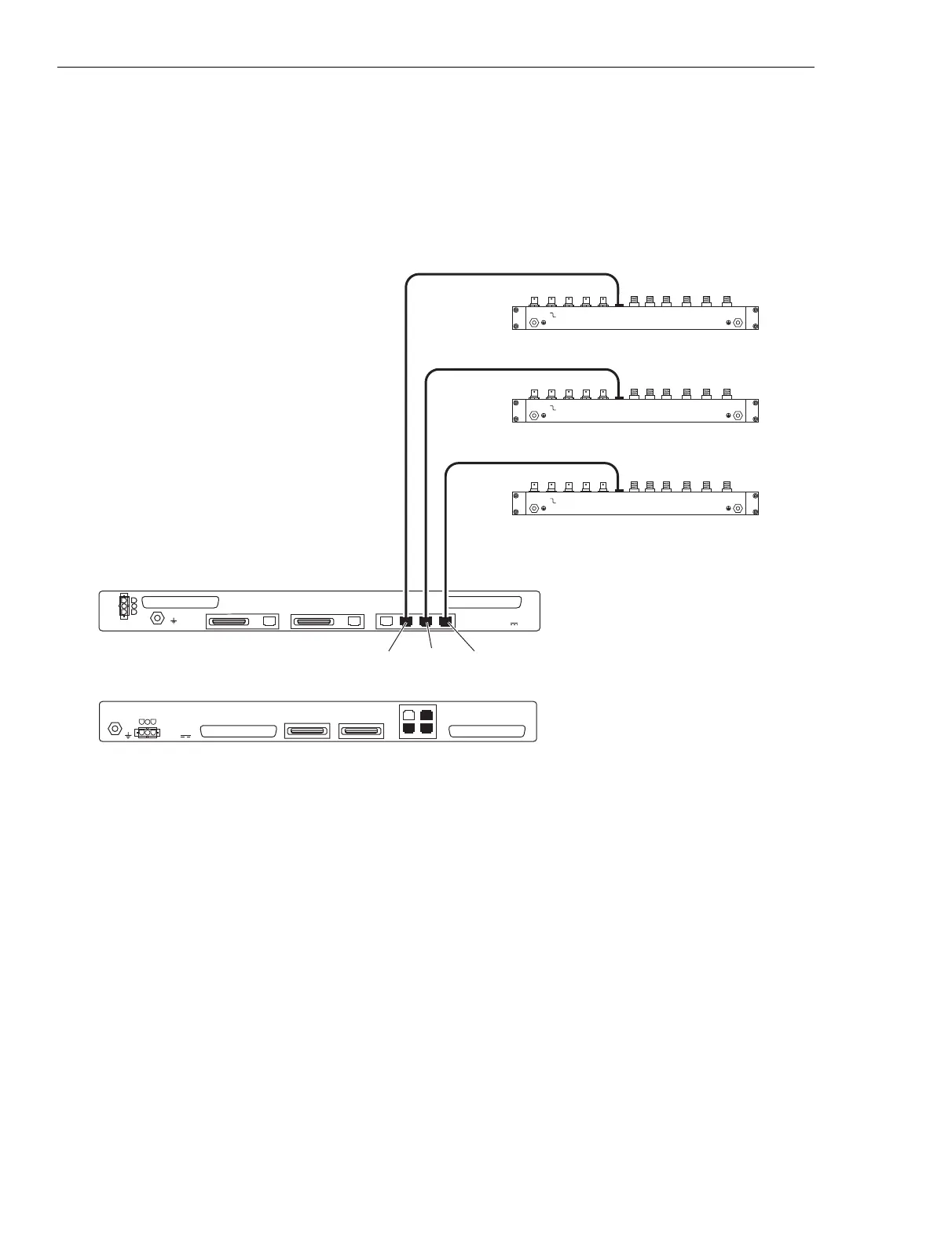

Figure 4-13 Alarm Connections for 800 MHz Duplexed RFDS
(0182020V06 and earlier) Sectored Sites
RF#3RF#2RF#1CONTROLSERIALPARALLEL
CONTROLLER B
SERIALPARALLEL
CONTROLLER A
RTN
-48V
USER ALARM/CONTROL
SYSTEM ALARM/CONTROL
ENVIRONMENTAL ALARM SYSTEM
Motorola
-48V , 1.0A
iSC404
010802JNM
3084225N42
EAS
RF CABINET #1
RF CABINET #2
RF CABINET #3
3084225N42
3084225N42
RF#3
RF#2RF#1
IN OUT
ETHERNET
5 MHz/1PPS
ISOLATED GROUND
RX3 RX2 RX1GPS BGPS ABMR ANT
TX OUT
ALARM
IN OUT ETHERNET
(GROUNDED)
IN OUT
ETHERNET
5 MHz/1PPS
ISOLATED GROUND
RX3 RX2 RX1GPS BGPS ABMR ANT
TX OUT
ALARM
IN OUT ETHERNET
(GROUNDED)
IN OUT
ETHERNET
5 MHz/1PPS
ISOLATED GROUND
RX3 RX2 RX1GPS BGPS ABMR ANT
TX OUT
ALARM
IN OUT ETHERNET
(GROUNDED)
RF#3RF#2RF#1
RF3RF2
RF1CONTROL
-48V
MOTOROLA
ENVIRONMENTAL
ALARM SYSTEM
INPUT:
PARALLEL
CONTROLLER B
PARALLEL
CONTROLLER A
USER ALARM/CONTROL
RTN
SYSTEM ALARM/CONTROL
-48V , 1.0A
EAS2
