Gen 3 Site Controller System Manual Chapter 4 Installation
Intercabling Connections

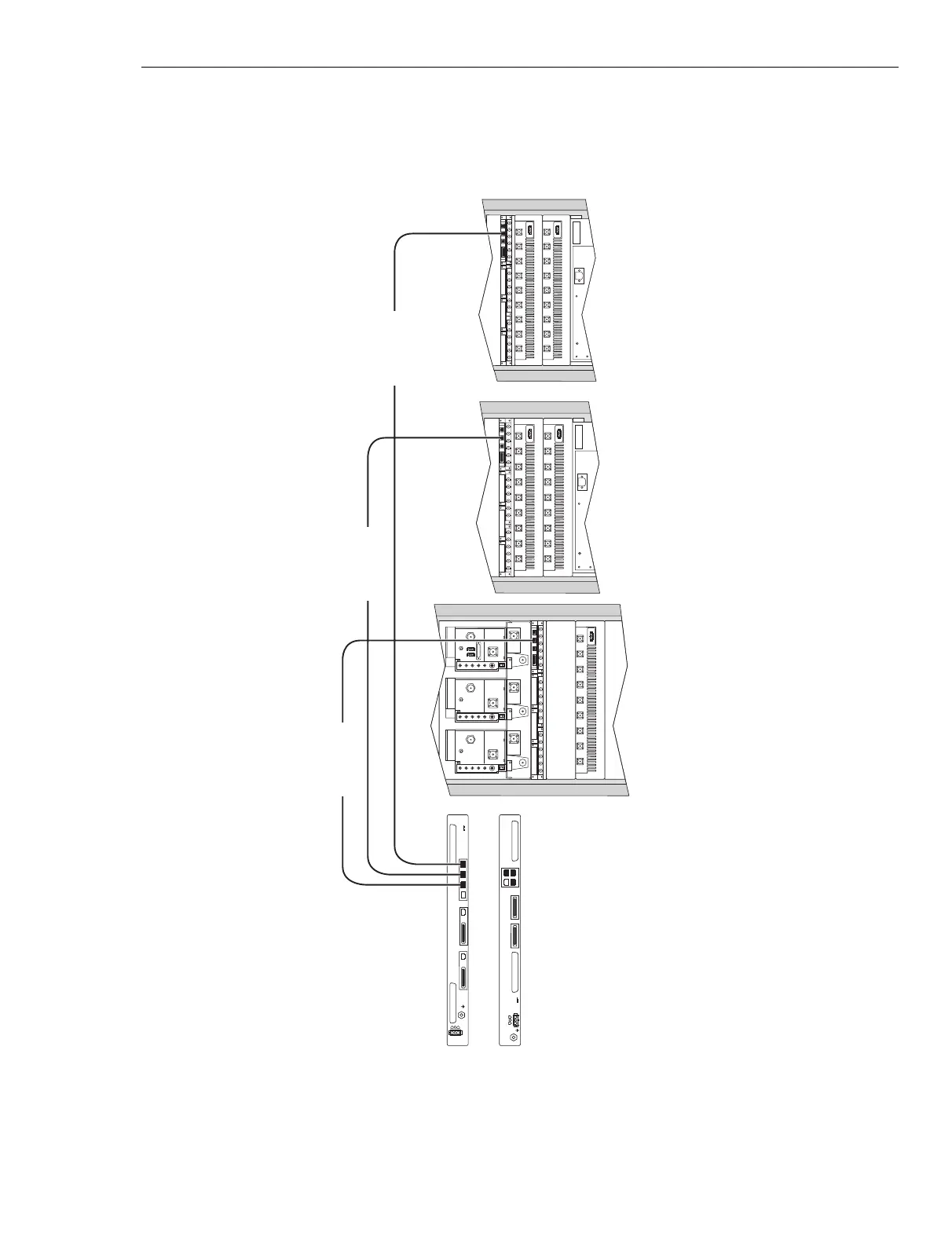

Figure 4-14 Alarm Connections for GEN 4 RFDS / 900 MHz Duplexed RFDS
Sites
iSC410 010802JNM
T9IN T8IN T7IN T6OUT T4IN T3IN T2IN T1OUT
MAIN RF CABINET
EXPANSION RF CABINET #2
EXPANSION RF CABINET #1
T9IN T8IN T7OUT T6IN T5IN T3IN T2IN T1OUTT4OUT T9IN T8IN T7OUT T6IN T5IN T3IN T2IN T1OUTT4OUT
T9IN T8IN T7OUT T6IN T5IN T3IN T2IN T1OUTT4OUT T9IN T8IN T7OUT T6IN T5IN T3IN T2IN T1OUTT4OUT
RF#3RF#2RF#1CONTROLSERIALPARALLEL
CONTROLLER B
SERIALPARALLEL
CONTROLLER A
RTN
-48V
USER ALARM/CONTROL
SYSTEM ALARM/CONTROL
ENVIRONMENTAL ALARM SYSTEM
Motorola
-48V , 1.0A
EAS
RF3RF2
RF1CONTROL
-48V
MOTOROLA ENVIRONMENTAL ALARM SYSTEM
INPUT:
PARALLEL
CONTROLLER B
PARALLEL
CONTROLLER A
USER ALARM/CONTROL
RTN
SYSTEM ALARM/CONTROL
-48V , 1.0A
EAS2
3084225N42
3084225N42
3084225N42
NOTE: For systems using more than 3 RFCs, additional EAS/EAS2 connections are as shown in
Figure 4-17, Alarm Connections (Systems with 4-8 RF Racks).
